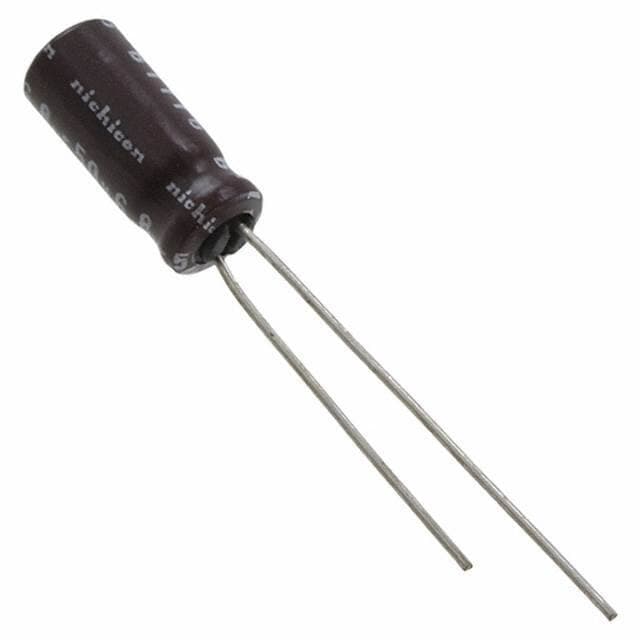

Manufacturer No:

UPM1H010MDD

Manufacturer:

Nichicon

Package:

Radial, Can

Description:

UPM 1?F Capacitor ±20% Bulk Through Hole 18mA 0.197Dia 5.00mm -55°C~105°C Polar 2mm Radial, Can

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

UPM1H010MDD information

Nichicon UPM1H010MDD technical specifications, attributes, parameters and parts with similar specifications to Nichicon UPM1H010MDD.

  • Type
  • Parameter
  • Factory Lead Time
  • 16 Weeks
  • Mount
  • PCB, Through Hole
  • Mounting Type
  • Through Hole
  • Package / Case
  • Radial, Can
  • Terminal Shape
  • WIRE
  • Dielectric Material
  • Aluminium
  • Operating Temperature
  • -55°C~105°C
  • Packaging
  • Bulk
  • Series
  • UPM
  • Published
  • 2009
  • Size / Dimension
  • 0.197Dia 5.00mm
  • Tolerance
  • ±20%
  • JESD-609 Code
  • e3
  • Pbfree Code
  • yes
  • Part Status
  • Not For New Designs
  • Moisture Sensitivity Level (MSL)
  • 1 (Unlimited)
  • Number of Terminations
  • 2
  • Termination
  • Radial
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Matte Tin (Sn)
  • Applications
  • General Purpose
  • HTS Code
  • 8532.22.00
  • Capacitance
  • 1?F
  • Voltage - Rated DC
  • 50V
  • Capacitor Type
  • ALUMINUM ELECTROLYTIC CAPACITOR
  • Lead Spacing
  • 0.079 2.00mm
  • Lead Diameter
  • 500 ?m
  • Voltage
  • 50V
  • Lifetime @ Temp
  • 2000 Hrs @ 105°C
  • Leakage Current
  • 4?A
  • Ripple Current
  • 18mA
  • Polarization
  • Polar
  • Life (Hours)
  • 2000 hours
  • Tan Delta
  • 0.1
  • Impedance
  • 11Ohm
  • Ripple Current @ Low Frequency
  • 18mA @ 120Hz
  • Ripple Current @ High Frequency
  • 36mA @ 10kHz
  • Dissipation Factor
  • 0.1 %
  • Diameter
  • 5mm
  • Height
  • 11mm
  • Height Seated (Max)
  • 0.492 12.50mm
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for Nichicon UPM1H010MDD.

Datasheets:

UPM1H010MDD Overview


A full charge means 36mA @ 10kHz ripple current.During the lowest charge, ripple current is 18mA @ 120Hz.You should keep the seated height (Max) below 0.492 12.50mm.There is a dissipation factor of 0.1 %.The capacitor operates from 50V DC voltage.When operating at -55°C~105°C, high efficiency can be achieved.

UPM1H010MDD Features


the ripple current is 36mA @ 10kHz.
the ripple current is 18mA @ 120Hz.
a dissipation factor of 0.1 %
voltage - Rated DC of 50V
an operating temperature of -55°C~105°C


UPM1H010MDD Applications


There are a lot of Nichicon
UPM1H010MDD applications of aluminum electrolytic capacitors.


  • Power supplies
  • Computer motherboards
  • Uninterruptible power supplies
  • Frequency converters
  • Computer
  • Telecommunication
  • Industrial systems
  • Smoothing and filtering applications
  • Standard and switched mode power supplies
  • Energy storage in pulse systems

User Guide
