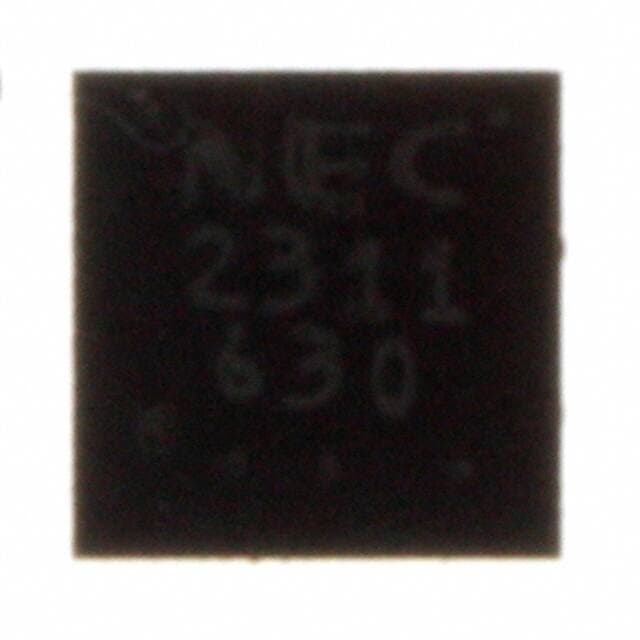

CEL UPG2311T5F-A

Manufacturer No:

UPG2311T5F-A

Manufacturer:

CEL

Package:

12-VFQFN Exposed Pad

Description:

34dB ~ 37dB GPS Tray 1.575GHz 2.7V~3.3V 1.2dB ~ 1.5dB 20mA Surface Mount

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

UPG2311T5F-A information

CEL UPG2311T5F-A technical specifications, attributes, parameters and parts with similar specifications to CEL UPG2311T5F-A.

Type
Parameter

Mounting Type
Surface Mount

Package / Case
12-VFQFN Exposed Pad

Supplier Device Package
12-QFN (3x3)

Packaging
Tray

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Min Operating Temperature
-45°C

Max Power Dissipation
250mW

Voltage - Supply
2.7V~3.3V

Frequency
1.575GHz

Number of Channels
2

Test Frequency
1.575GHz

Operating Supply Current
20mA

Nominal Supply Current
20mA

Current - Supply
17mA~20mA

Gain
34dB ~ 37dB

RF Type
GPS

Noise Figure
1.2dB ~ 1.5dB

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for CEL UPG2311T5F-A.

UPG2311T5F-A Overview

GPS RF Type from the RF Amplifier.Advanced RF Amp' packaging Tray is used to provide high reliability.Packed in 12-VFQFN Exposed Pad, the RF power Amplifier is convenient for shipping overseas.It is recommended to mount Amplifiers RF in the way of Surface Mount.The Amplifiers RF can supply 2.7V~3.3V voltage.To deliver its performance, the supply current need to be operated at the range of 20mA.Supplied with 17mA~20mA RF Amplifiers' current.

UPG2311T5F-A Features

RF Type GPS
2.7V~3.3V voltage
17mA~20mA current

UPG2311T5F-A Applications

There are a lot of CEL
UPG2311T5F-A RF Amplifiers applications.

Location-Enabled Mobile Devices
Telematics (Asset Tracking and Management)
Personal Navigation Device (PND)
Cellular Phones with GPS
Notebook PC
Ultra-Mobile PC
Recreational
Marine Navigation
Avionics
GPS
