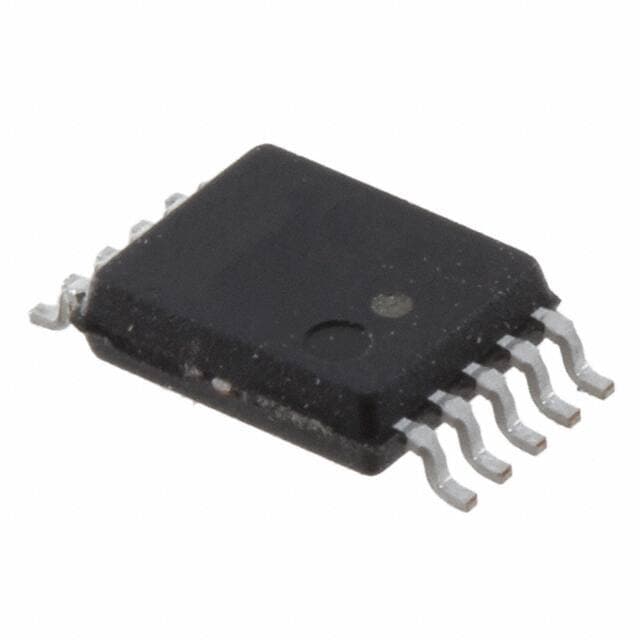

Renesas UPD78F9200MA-CAC-A

Manufacturer No:

UPD78F9200MA-CAC-A

Manufacturer:

Renesas

Package:

10-LSSOP (0.225, 5.72mm Width)

Description:

1KB 1K x 8 FLASH 78K0S 8-Bit Microcontroller 78K0S/Kx1+ Series 10 Pin 10MHz 10-LSSOP (0.225, 5.72mm Width)

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

UPD78F9200MA-CAC-A information

Renesas UPD78F9200MA-CAC-A technical specifications, attributes, parameters and parts with similar specifications to Renesas UPD78F9200MA-CAC-A.

Type
Parameter

Factory Lead Time
24 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
10-LSSOP (0.225, 5.72mm Width)

Number of Pins
10

Operating Temperature
-40°C~85°C TA

Packaging
Tray

Series
78K0S/Kx1+

Published
2005

JESD-609 Code
e6

Pbfree Code
yes

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
10

Terminal Finish
Tin/Bismuth (Sn/Bi)

Subcategory
Microcontrollers

Technology
CMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Frequency
10MHz

Pin Count
10

Supply Voltage-Max (Vsup)
5.5V

Supply Voltage-Min (Vsup)
2V

Memory Size
1kB

Number of I/O
7

RAM Size
128 x 8

Voltage - Supply (Vcc/Vdd)
2V~5.5V

uPs/uCs/Peripheral ICs Type
MICROCONTROLLER

Number of Bits
8

Core Processor
78K0S

Peripherals
LVD, POR, PWM, WDT

Program Memory Type
FLASH

Core Size
8-Bit

Program Memory Size
1KB 1K x 8

Bit Size
8

Data Converter
A/D 4x10b

Watchdog Timer
Yes

Has ADC
YES

DMA Channels
NO

Data Bus Width
8b

PWM Channels
YES

DAC Channels
NO

Number of Timers/Counters
2

Number of UART Channels
0

RAM (bytes)
128

Length
4.4mm

Height Seated (Max)
1.45mm

Download datasheets and manufacturer documentation for Renesas UPD78F9200MA-CAC-A.

ConflictMineralStatement:

nec-dn1c100m1s-conflictmineralstatement-8243.pdf

UPD78F9200MA-CAC-A Overview

This Microcontroller comes in a 10-LSSOP (0.225, 5.72mm Width) package. This Microcontroller has 7 I/Os. The Mounting Type of the Microcontroller is Surface Mount. The MCU is based on the 8-Bit core. This Microcontroller's program memory type is FLASH. The Microcontroller runs in -40°C~85°C TA Operating Temperature. Microcontroller runs in 78K0S/Kx1+ Series. The size of the program memory of Microcontroller is 1KB 1K x 8. MCU is powered by 78K0S Core Processor. The device belongs to MICROCONTROLLER uPs/uCs/Peripheral ICs Type. The MCU has a number of 10 terminals. Microcontroller comes with 8 bit size. MCU chip has NO DMA channels. The part owns 1kB memory size. MCU's frequency is 10MHz. The device works in YES PWM channels. The pin number of the component remains 10. It has 2 timers/counters. It counts 10 pins. It enjoys 0 UART channels. The bits of the part is 8.
