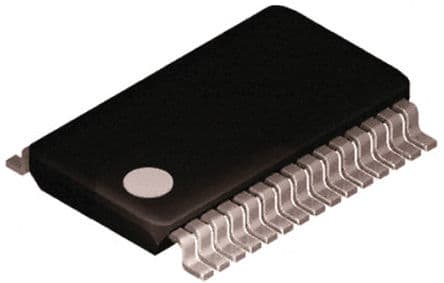

Renesas UPD78F9116BMC-5A4-A

Manufacturer No:

UPD78F9116BMC-5A4-A

Manufacturer:

Renesas

Package:

LSSOP

Description:

Microcontroller 30 Pin 10MHz 5V LSSOP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

UPD78F9116BMC-5A4-A information

Renesas UPD78F9116BMC-5A4-A technical specifications, attributes, parameters and parts with similar specifications to Renesas UPD78F9116BMC-5A4-A.

Type
Parameter

Factory Lead Time
32 Weeks

Mount
Surface Mount

Package / Case
LSSOP

Number of Pins
30

Published
1997

JESD-609 Code
e6

Pbfree Code
yes

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
Vendor Undefined

Number of Terminations
30

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Subcategory
Microcontrollers

Technology
CMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Supply Voltage
5V

Terminal Pitch
0.65mm

Frequency
10MHz

Pin Count
30

Operating Supply Voltage
5.5V

Temperature Grade
INDUSTRIAL

Interface
UART

Max Supply Voltage
5.5V

Memory Size
16kB

Number of I/O
20

RAM Size
256B

Memory Type
FLASH

uPs/uCs/Peripheral ICs Type
MICROCONTROLLER

Bit Size
8

Has ADC
YES

DMA Channels
NO

Data Bus Width
8b

PWM Channels
YES

Number of Timers/Counters
2

CPU Family
UPD78K0

Number of Programmable I/O
12

Number of UART Channels
1

RAM (bytes)
256

Number of ADC Channels
4

Height
1.2mm

Length
9.85mm

Width
6.1mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Renesas UPD78F9116BMC-5A4-A.

ConflictMineralStatement:

nec-dn1c100m1s-conflictmineralstatement-8243.pdf

UPD78F9116BMC-5A4-A Overview

The package is LSSOP-shaped. There are 20 I/Os. This device belongs to the MICROCONTROLLER uPs/uCs/Peripheral ICs category. IC Chip 30 has 30 terminations. 8-bits are used for its size. IC Chip has 5V volt supply outputs. With NO DMA channels, Microcontroller chip can handle large data transfers. 16kB is the size of the memory in the IC part. Using a 10MHz frequency, this electronic part can perform efficiently. Devices work in YES PWM channels. On the chip, 30 pins are accessible. In total, there are 2 timers/counters on the device. The pin count is 30. There is an embedded the UPD78K0 CPU family inside the device, which makes it a powerful device. There is FLASH memory on this piece of equipment. It has 12 Programmable Input/Output pins that can be programmed. A total of 8 UART channels are available on it. The ADC channel count on this device totals up to 4 channels.
