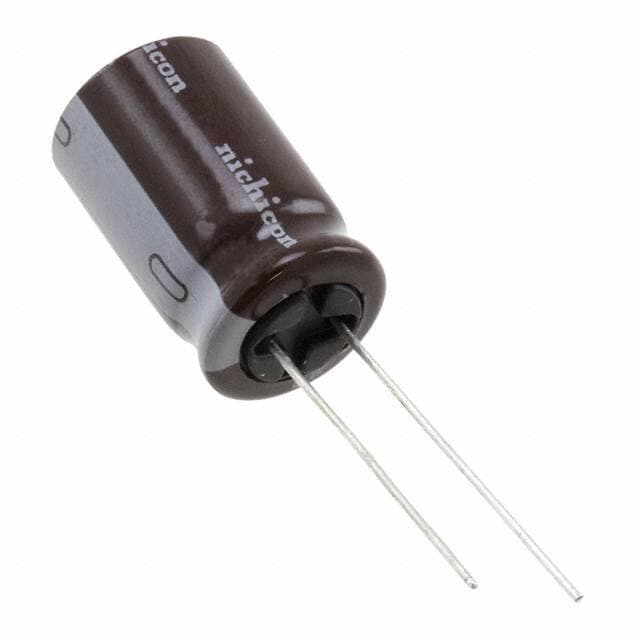

NICHICON UCY2C101MHD

Manufacturer No:

UCY2C101MHD

Manufacturer:

NICHICON

Package:

Radial, Can

Description:

UCY 100?F Capacitor ±20% Bulk Through Hole 645mA 0.492Dia 12.50mm -40°C~105°C Polar 5.0038mm Radial, Can

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

UCY2C101MHD information

NICHICON UCY2C101MHD technical specifications, attributes, parameters and parts with similar specifications to NICHICON UCY2C101MHD.

Type
Parameter

Factory Lead Time
19 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
Radial, Can

Dielectric Material
ALUMINUM (WET)

Operating Temperature
-40°C~105°C

Packaging
Bulk

Series
UCY

Published
2012

Size / Dimension
0.492Dia 12.50mm

Tolerance
±20%

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
2

Termination
Radial

ECCN Code
EAR99

Terminal Finish
Matte Tin (Sn)

Applications
General Purpose

HTS Code
8532.22.00

Capacitance
100?F

Voltage - Rated DC
160V

Terminal Pitch
5mm

Capacitor Type
ALUMINUM ELECTROLYTIC CAPACITOR

Lead Spacing
0.197 5.00mm

Lifetime @ Temp
12000 Hrs @ 105°C

Ripple Current
645mA

Polarization
Polar

Life (Hours)
10000 hours

Ripple Current @ Low Frequency
645mA @ 120Hz

Ripple Current @ High Frequency
1.29A @ 100kHz

Dissipation Factor
0.2 %

Diameter
12.5mm

Height Seated (Max)
0.846 21.50mm

Length
20mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for NICHICON UCY2C101MHD.

UCY2C101MHD Overview

Ripple current at full charge is 1.29A @ 100kHz.It is 645mA @ 120Hz at the lowest charge for ripple current.Seating height (Max) should be kept below 0.846 21.50mm.Consequently, it operates with a dissipation factor of 0.2 % (0.2 %).Voltage - Rated DC - is 160V.It is recommended that the operating temperature be kept at -40°C~105°C to achieve high efficiency.

UCY2C101MHD Features

the ripple current is 1.29A @ 100kHz.
the ripple current is 645mA @ 120Hz.
a dissipation factor of 0.2 %
voltage - Rated DC of 160V
an operating temperature of -40°C~105°C

UCY2C101MHD Applications

There are a lot of Nichicon
UCY2C101MHD applications of aluminum electrolytic capacitors.

Power supplies
Computer motherboards
Uninterruptible power supplies
Frequency converters
Computer
Telecommunication
Industrial systems
Smoothing and filtering applications
Standard and switched mode power supplies
Energy storage in pulse systems
