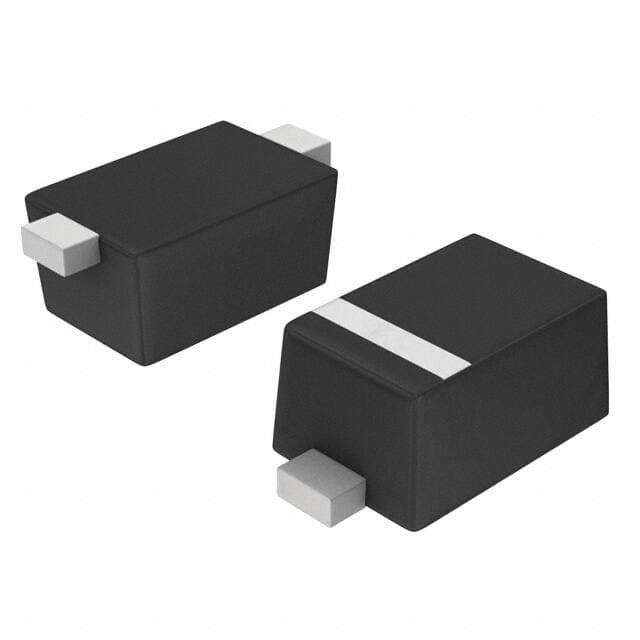

Semtech UCLAMP1201H.TCT
Manufacturer No:
UCLAMP1201H.TCT
Manufacturer:
Package:
SC-79, SOD-523
Description:
TVS DIODE 12VWM 25VC SOD523
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
UCLAMP1201H.TCT information
Semtech UCLAMP1201H.TCT technical specifications, attributes, parameters and parts with similar specifications to Semtech UCLAMP1201H.TCT.
- Type
- Parameter
- Factory Lead Time
- 6 Weeks
- Mount
- Surface Mount
- Mounting Type
- Surface Mount
- Package / Case
- SC-79, SOD-523
- Number of Pins
- 2
- Diode Element Material
- SILICON
- Breakdown Voltage / V
- 13.3V
- Number of Elements
- 1
- Reverse Stand-off Voltage
- 12V
- Operating Temperature
- -55°C~125°C TJ
- Packaging
- Tape & Reel (TR)
- Series
- uClamp®
- JESD-609 Code
- e3
- Pbfree Code
- yes
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Number of Terminations
- 2
- ECCN Code
- EAR99
- Type
- Zener
- Terminal Finish
- Matte Tin (Sn)
- Applications
- General Purpose
- Power Rating
- 200W
- Voltage - Rated DC
- 12V
- Max Power Dissipation
- 200W
- Terminal Form
- FLAT
- Peak Reflow Temperature (Cel)
- 260
- Depth
- 900μm
- Base Part Number
- UCLAMP
- Pin Count
- 2
- Working Voltage
- 12V
- Leakage Current
- 1μA
- Element Configuration
- Single
- Power Line Protection
- No
- Current - Peak Pulse (10/1000μs)
- 8A 8/20μs
- Voltage - Clamping (Max) @ Ipp
- 25V
- Clamping Voltage
- 25V
- Voltage - Reverse Standoff (Typ)
- 12V Max
- Peak Pulse Current
- 8A
- Peak Pulse Power
- 200W
- Direction
- Unidirectional
- Unidirectional Channels
- 1
- Capacitance @ Frequency
- 60pF @ 1MHz
- Max Breakdown Voltage
- 13.3V
- Length
- 1.3mm
- Width
- 900μm
- REACH SVHC
- No SVHC
- RoHS Status
- RoHS Compliant
Download datasheets and manufacturer documentation for Semtech UCLAMP1201H.TCT.
PCN Packaging:
Product Description:
The UCLAMP1201H.TCT is a unidirectional TVS (Transient Voltage Suppressor) diode from Semtech Corporation, part of the uClamp? series. This device is designed to protect electronic circuits from voltage surges and transients, ensuring reliable operation and preventing damage to sensitive components.
Features:
- Working voltage: 12V
- Voltage clamping (max) @ Ipp: 25V
- Power rating: 200W
- Peak pulse power: 200W
- Peak pulse current: 8A
- Reverse stand-off voltage: 12V
- Operating temperature: -55°C to 125°C TJ
- Mounting type: Surface Mount
- Moisture sensitivity level (MSL): 1 (Unlimited)
Applications:
- General Purpose: The UCLAMP1201H.TCT is suitable for a wide range of applications, including consumer electronics, industrial equipment, and automotive systems.
Alternative Parts:
- UCLAMP1201H.TCT is a RoHS-compliant device, and alternative parts may include other uClamp? series TVS diodes from Semtech Corporation.
Embedded Modules:
- This component is not typically used as an embedded module, but it can be used in various applications where protection against voltage surges and transients is required.
FAQs:
Q: What is the working voltage of the UCLAMP1201H.TCT? A: The working voltage is 12V.
Q: What is the maximum clamping voltage of the UCLAMP1201H.TCT? A: The maximum clamping voltage is 25V.
Q: What is the power rating of the UCLAMP1201H.TCT? A: The power rating is 200W.
Q: Is the UCLAMP1201H.TCT RoHS-compliant? A: Yes, the UCLAMP1201H.TCT is RoHS-compliant.
Q: What is the operating temperature range of the UCLAMP1201H.TCT? A: The operating temperature range is -55°C to 125°C TJ.
Q: Is the UCLAMP1201H.TCT lead-free? A: Yes, the UCLAMP1201H.TCT is lead-free.
