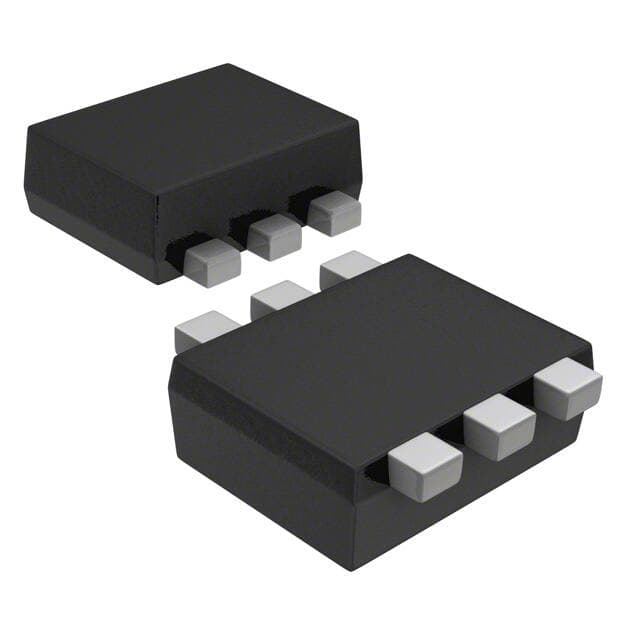

Semtech UCLAMP0505A.TCT
Manufacturer No:
UCLAMP0505A.TCT
Manufacturer:
Package:
SOT-563, SOT-666
Description:
TVS DIODE 5VWM 12VC SC89
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
UCLAMP0505A.TCT information
Semtech UCLAMP0505A.TCT technical specifications, attributes, parameters and parts with similar specifications to Semtech UCLAMP0505A.TCT.
- Type
- Parameter
- Factory Lead Time
- 6 Weeks
- Mount
- Surface Mount
- Mounting Type
- Surface Mount
- Package / Case
- SOT-563, SOT-666
- Number of Pins
- 6
- Diode Element Material
- SILICON
- Breakdown Voltage / V
- 6V
- Number of Elements
- 5
- Reverse Stand-off Voltage
- 5V
- Operating Temperature
- -55°C~125°C TJ
- Packaging
- Tape & Reel (TR)
- Series
- uClamp®
- JESD-609 Code
- e3
- Pbfree Code
- yes
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Number of Terminations
- 6
- ECCN Code
- EAR99
- Type
- Zener
- Terminal Finish
- MATTE TIN
- Applications
- General Purpose
- Capacitance
- 75pF
- Power Rating
- 100W
- Voltage - Rated DC
- 5V
- Terminal Form
- FLAT
- Peak Reflow Temperature (Cel)
- 260
- Depth
- 1.25mm
- Base Part Number
- UCLAMP
- Pin Count
- 6
- Operating Supply Voltage
- 5V
- Working Voltage
- 5V
- Polarity
- Unidirectional
- Leakage Current
- 1μA
- Power Line Protection
- No
- Current - Peak Pulse (10/1000μs)
- 7A 8/20μs
- Clamping Voltage
- 12V
- Voltage - Reverse Standoff (Typ)
- 5V Max
- Peak Pulse Current
- 7A
- Peak Pulse Power
- 100W
- Direction
- Unidirectional
- Test Current
- 1mA
- Rep Pk Reverse Voltage-Max
- 5V
- Capacitance @ Frequency
- 60pF @ 1MHz
- Reverse Breakdown Voltage
- 6V
- Number of Unidirectional Channels
- 5
- Length
- 1.7mm
- Width
- 1.25mm
Download datasheets and manufacturer documentation for Semtech UCLAMP0505A.TCT.
PCN Packaging:
Product Description:
The UCLAMP0505A.TCT is a unidirectional TVS (Transient Voltage Suppressor) diode from Semtech Corporation, designed for general-purpose applications. This surface-mount device is part of the uClamp series, offering reliable protection against voltage transients and spikes. With a breakdown voltage of 6V and a clamping voltage of 12V, it is suitable for a wide range of applications, including power line protection and signal protection.
Features:
- Breakdown voltage: 6V
- Clamping voltage: 12V
- Peak pulse current: 7A
- Peak pulse power: 100W
- Operating temperature: -55°C to 125°C
- Operating supply voltage: 5V
- Mounting type: Surface mount
- Package: SOT-563 and SOT-666
- Packaging: Tape and reel (TR)
- RoHS compliant
Applications:
- Primary applications: General-purpose power line protection, signal protection, and surge protection
- Secondary applications: Medical equipment, industrial control systems, and automotive electronics
Alternative Parts:
- UCLAMP0503A.TCT
- UCLAMP0506A.TCT
Embedded Modules:
- This component is used in various embedded modules, including:
- Power line protection modules
- Signal protection modules
- Surge protection modules
FAQs:
Q: What is the breakdown voltage of the UCLAMP0505A.TCT? A: The breakdown voltage is 6V.
Q: What is the clamping voltage of the UCLAMP0505A.TCT? A: The clamping voltage is 12V.
Q: What is the peak pulse current of the UCLAMP0505A.TCT? A: The peak pulse current is 7A.
Q: Is the UCLAMP0505A.TCT RoHS compliant? A: Yes, the UCLAMP0505A.TCT is RoHS compliant.
Q: What is the operating temperature range of the UCLAMP0505A.TCT? A: The operating temperature range is -55°C to 125°C.
Q: What is the packaging type of the UCLAMP0505A.TCT? A: The packaging type is tape and reel (TR).
Q: Is the UCLAMP0505A.TCT lead-free? A: Yes, the UCLAMP0505A.TCT is lead-free.
