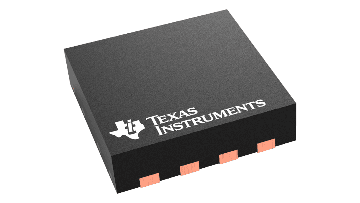

Texas Instruments UCC27524DSDTG4

Manufacturer No:

UCC27524DSDTG4

Manufacturer:

Texas Instruments

Package:

Description:

Gate Drivers 5-A/5-A dual-channel gate driver with 5-V UVLO, enable, and 1-ns delay Matching

Quantity:

In Stock :6807

Looking for price or availability? Send us an RFQ and our sales team will respond quickly.

Shipping & Availability

Fast worldwide shipping via DHL, FedEx, UPS, and EMS.

Shipped from：HK Warehouse

Expected Shipping：Tue, May 12 - Wed, May 13, 2026

Lead Time：Inquire about availability

Date Code：Within 2 Years

Payment

We support multiple secure payment methods including PayPal, Visa, MasterCard, and American Express. All transactions are protected with advanced encryption to ensure secure and reliable payments.

Authenticity Guarantee

All components supplied by Aichiplink are sourced from trusted global suppliers and verified through strict in-house inspection and quality control procedures.

Quality Assurance

Certified in-house inspection and testing facilities ensure all components meet internationally recognized quality standards.

User Guide

Aichiplink operates certified in-house inspection and testing facilities to ensure all electronic components meet internationally recognized quality and compliance standards. Our quality management system is verified through ISO 9001 certification and industry-standard inspection procedures.

PURCHASE

Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.

MEANS OF PAYMENT

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.

RFQ (REQUEST FOR QUOTATIONS)

Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.

IMPORTANT NOTICE

Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.

Step1：Prepare product

Step2：Desiccant Protection

Step3：Vacuum Packaging

Step4：Individual Package

Step5：Anti-collision Filling

Step6：Packaging Box

SHIPPING COST

1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.

SHIPPING METHOD

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

DELIVERY TIME

1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.

UCC27524DSDTG4 Information

Texas Instruments UCC27524DSDTG4 technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments UCC27524DSDTG4.

Type
Parameter

Number of channels
2

Power switch
GaNFET, IGBT, MOSFET

Peak output current (A)
5

Input supply voltage (min) (V)
4.5

Input supply voltage (max) (V)
18

Features
Enable pin

Operating temperature range (°C)
-40 to 150

Rise time (ns)
7

Fall time (ns)
6

Propagation delay time (µs)
0.013

Type
Parameter

Input threshold
CMOS, TTL

Channel input logic
Dual, Non-Inverting

Input negative voltage (V)
0

Rating
Catalog

Undervoltage lockout (typ) (V)
4

Driver configuration
Dual, Non-Inverting

Package
HVSSOP (DGN)

Pins
8

Size
14.7 mm² 3 x 4.9

Package
PDIP (P)

Download datasheets and manufacturer documentation for Texas Instruments UCC27524DSDTG4.

The UCC27524 device is a dual-channel, high-speed, low-side, gate-driver device capable of effectively driving MOSFET and IGBT power switches. The UCC27524 adds the ability to handle –5V directly at the input pins for increased robustness. The UCC27524 is a dual non-inverting driver. Using a design that inherently minimizes shoot-through current, the UCC27524 is capable of delivering high-peak current pulses of up to 5A source and 5A sink into capacitive loads along with rail-to-rail drive capability and extremely small propagation delay typically 17ns. In addition, the drivers feature matched internal propagation delays between the two channels which are very well suited for applications requiring dual-gate drives with critical timing, such as synchronous rectifiers. This also enables connecting two channels in parallel to effectively increase current-drive capability or driving two switches in parallel with a single input signal. The input pin thresholds are based on TTL and CMOS compatible low-voltage logic, which is fixed and independent of the VDD supply voltage. Wide hysteresis between the high and low thresholds offers excellent noise immunity.

For safety purpose, internal pull-up and pull-down resistors on the input pins of the UCC27524 ensure that outputs are held LOW when input pins are in floating condition. UCC27524 features Enable pins (ENA and ENB) to have better control of the operation of the driver applications. The pins are internally pulled up to VDD for active-high logic and are left open for standard operation.

UCC27524 family of devices are available in SOIC-8 (D), VSSOP-8 with exposed pad (DGN) packages and 3mm × 3mm WSON-8 with exposed pad (DSD) packages package.

Industry-standard pin out
Two independent gate-drive channels
5A peak source and sink-drive current
Independent-enable function for each output
TTL and CMOS compatible logic threshold independent of supply voltage
Hysteretic-logic thresholds for high noise immunity
Ability to handle negative voltages (–5V) at inputs
Inputs and enable pin-voltage levels not restricted by VDD pin bias supply voltage
4.5V to 18V single-supply range
Outputs held low during VDD-UVLO (ensures glitch-free operation at power up and power down)
Fast propagation delays (17ns typical)
Fast rise and fall times (6ns and 10ns typical)
1ns typical delay matching between two channels
Two outputs are paralleled for higher drive current
Outputs held in low when inputs floating
SOIC-8, HVSSOP-8 PowerPAD™ package options
Operating junction temperature range of –40 to 150°C
