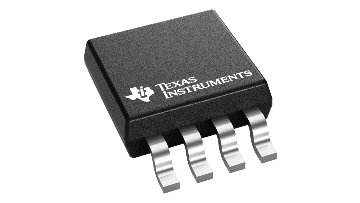

Texas Instruments UCC27423DGNRG4

Manufacturer No:

UCC27423DGNRG4

Manufacturer:

Texas Instruments

Package:

Description:

4-A/4-A dual-channel gate driver with 5-V UVLO, enable, and inverting inputs

Quantity:

In Stock :3065

Looking for price or availability? Send us an RFQ and our sales team will respond quickly.

Shipping & Availability

Fast worldwide shipping via DHL, FedEx, UPS, and EMS.

Shipped from：HK Warehouse

Expected Shipping：Fri, May 8 - Sat, May 9, 2026

Lead Time：Inquire about availability

Date Code：Within 2 Years

Payment

We support multiple secure payment methods including PayPal, Visa, MasterCard, and American Express. All transactions are protected with advanced encryption to ensure secure and reliable payments.

Authenticity Guarantee

All components supplied by Aichiplink are sourced from trusted global suppliers and verified through strict in-house inspection and quality control procedures.

Quality Assurance

Certified in-house inspection and testing facilities ensure all components meet internationally recognized quality standards.

User Guide

Aichiplink operates certified in-house inspection and testing facilities to ensure all electronic components meet internationally recognized quality and compliance standards. Our quality management system is verified through ISO 9001 certification and industry-standard inspection procedures.

PURCHASE

Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.

MEANS OF PAYMENT

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.

RFQ (REQUEST FOR QUOTATIONS)

Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.

IMPORTANT NOTICE

Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.

Step1：Prepare product

Step2：Desiccant Protection

Step3：Vacuum Packaging

Step4：Individual Package

Step5：Anti-collision Filling

Step6：Packaging Box

SHIPPING COST

1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.

SHIPPING METHOD

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

DELIVERY TIME

1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.

UCC27423DGNRG4 Information

Texas Instruments UCC27423DGNRG4 technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments UCC27423DGNRG4.

Type
Parameter

Number of channels
2

Power switch
IGBT, MOSFET

Peak output current (A)
4

Input supply voltage (min) (V)
4

Input supply voltage (max) (V)
15

Features
Enable pin

Operating temperature range (°C)
-40 to 105

Rise time (ns)
20

Fall time (ns)
15

Propagation delay time (µs)
0.025

Type
Parameter

Input threshold
CMOS, TTL

Channel input logic
Inverting

Input negative voltage (V)
0

Rating
Catalog

Driver configuration
Inverting

Package
HVSSOP (DGN)

Pins
8

Size
14.7 mm² 3 x 4.9

Package
PDIP (P)

Pins
8

Download datasheets and manufacturer documentation for Texas Instruments UCC27423DGNRG4.

The UCC2742x family of high-speed dual MOSFET drivers can deliver large peak currents into capacitive loads. Three standard logic options are offered – dual-inverting, dual-noninverting, and one-inverting and one-noninverting driver. The thermally enhanced 8-pin PowerPAD™ MSOP package (DGN) drastically lowers the thermal resistance to improve long-term reliability. It is also offered in the standard SOIC-8 (D) or PDIP-8 (P) packages.

Using a design that inherently minimizes shoot-through current, these drivers deliver 4A of current where it is needed most at the Miller plateau region during the MOSFET switching transition. A unique BiPolar and MOSFET hybrid output stage in parallel also allows efficient current sourcing and sinking at low supply voltages.

The UCC2742x provides enable (ENB) functions to have better control of the operation of the driver applications. ENBA and ENBB are implemented on pins 1 and 8 which were previously left unused in the industry standard pin-out. They are internally pulled up to V DD for active high logic and can be left open for standard operation.

Industry-Standard Pin-Out
Enable Functions for Each Driver
High Current Drive Capability of ±4 A
Unique BiPolar and CMOS True Drive Output Stage Provides High Current at MOSFET Miller Thresholds
TTL/CMOS Compatible Inputs Independent of Supply Voltage
20-ns Typical Rise and 15-ns Typical Fall Times with 1.8-nF Load
Typical Propagation Delay Times of 25 ns with Input Falling and 35 ns with Input Rising
4-V to 15-V Supply Voltage
Dual Outputs Can Be Paralleled for Higher Drive Current
Available in Thermally Enhanced MSOP PowerPAD™ Package
Rated From –40°C to 125°C
