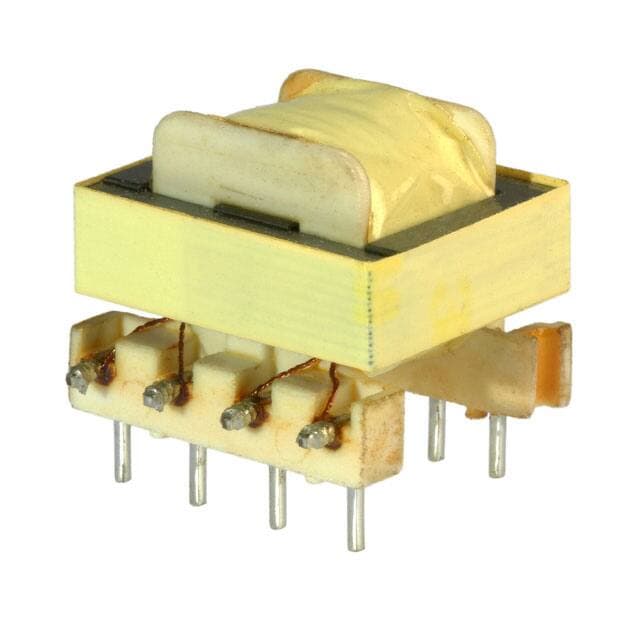

Triad Magnetics TY-250P
Manufacturer No:
TY-250P
Manufacturer:
Triad Magnetics
Description:
PC MOUNT AUDIO TRANSFORMER
Quantity:
In Stock :1272
Looking for price or availability? Send us an RFQ and our sales team will respond quickly.
Shipping & Availability
Fast worldwide shipping via DHL, FedEx, UPS, and EMS.
Shipped from：HK Warehouse
Expected Shipping：Tue, Oct 27 - Wed, Oct 28, 2026
Lead Time：Inquire about availability
Date Code：Within 2 Years
Payment
We support multiple secure payment methods including PayPal, Visa, MasterCard, and American Express. All transactions are protected with advanced encryption to ensure secure and reliable payments.
Authenticity Guarantee
All components supplied by Aichiplink are sourced from trusted global suppliers and verified through strict in-house inspection and quality control procedures.
Quality Assurance
Certified in-house inspection and testing facilities ensure all components meet internationally recognized quality standards.
User Guide
Available from AS9120 Certified Supplier, AIChipLink delivers high-reliability electronic components supported by certified quality management, rigorous inspection processes, counterfeit mitigation controls, and full traceability systems. Our operations comply with AS9120, ISO 9001:2015, and IECQ ESD standards to support aerospace, industrial, defense, and mission-critical applications.
TY-250P Information
Triad Magnetics TY-250P technical specifications, attributes, parameters and parts with similar specifications to Triad Magnetics TY-250P.
- Type
- Parameter
- Mfr
- Triad Magnetics
- Series
- TY
- Package
- Box
- Product Status
- Active
- Turns Ratio - Primary:Secondary
- 1:1, 2:1
- Impedance - Primary (Ohms)
- 1kCT
- Impedance - Secondary (Ohms)
- 1kCT
- DC Resistance (DCR) - Primary
- 172Ohm
- DC Resistance (DCR) - Secondary
- 172Ohm
- Transformer Type
- Impedance Matching
- Type
- Parameter
- Frequency Range
- 20Hz ~ 20kHz
- Frequency Response
- ±1dB
- Voltage - Isolation
- 1500VAC
- Insertion Loss
- 2.8dB Max @ 1kHz
- Operating Temperature
- -40°C ~ 105°C
- Mounting Type
- Through Hole
- Size / Dimension
- 0.800" L x 0.770" W (20.32mm x 19.56mm)
- Height - Seated (Max)
- 0.700" (17.78mm)
- Termination Style
- PC Pin
TY-250P FAQ
Can I request a quote for TY-250P?
TY-250P from Triad Magnetics is ready for RFQ submission. Send your target quantity and requirements, and AIChipLink will check current availability, lead time, and quantity-based pricing.
Why is pricing not shown as a fixed value for TY-250P?
The final price for TY-250P depends on requested quantity, supply conditions, date code, package option, and destination. An RFQ lets us return the current market quote for your order.
Which specifications should I review for TY-250P?
TY-250P is a Triad Magnetics Audio Transformers / Signal Transformers part. Key details include Turns Ratio - Primary:Secondary: 1:1, 2:1 and DC Resistance (DCR) - Secondary: 172Ohm; contact us if you need the specifications verified before sourcing.
When will I receive a quotation for TY-250P?
After you submit the RFQ for TY-250P, our sales team typically replies within 24 hours with availability, unit pricing, lead time, shipping choices, and possible substitutes.
What is the expected shipping time for TY-250P?
Once stock for TY-250P is confirmed, available inventory can generally ship within 1–2 business days. The final schedule depends on quantity, warehouse source, and delivery address.
Can AIChipLink help find alternatives to TY-250P?
Yes. If TY-250P is unavailable, end-of-life, or outside your schedule, we can review comparable Triad Magnetics Audio Transformers / Signal Transformers parts and compatible replacement options.
