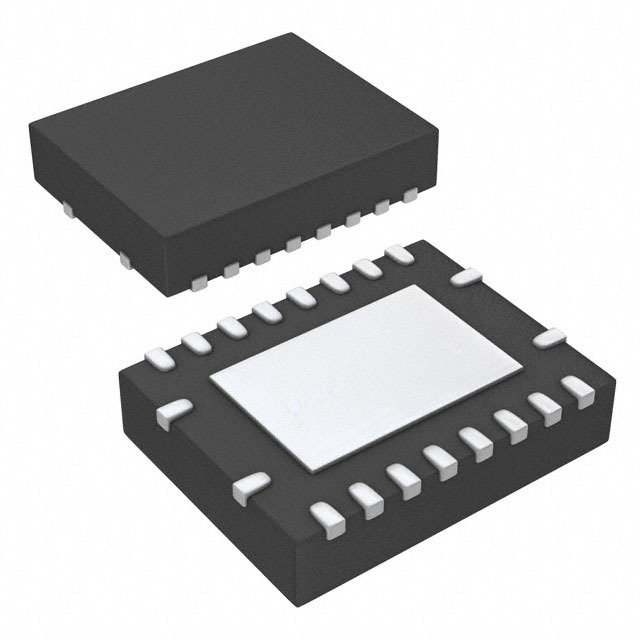

TI TXB0108RGYRG4

Manufacturer No:

TXB0108RGYRG4

Manufacturer:

Package:

HVQCCN, LCC20/24,.14X.18,20

Description:

Description: 8-Bit Bidirectional Voltage-Level Shifter with Auto Direction Sensing and +/-15-kV ESD Protect 20-VQFN -40 to 85

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TXB0108RGYRG4 information

TI TXB0108RGYRG4 technical specifications, attributes, parameters and parts with similar specifications to TI TXB0108RGYRG4.

Type
Parameter

RoHS Status
RoHS Compliant

Part Life Cycle Code
Obsolete

Ihs Manufacturer
TEXAS INSTRUMENTS INC

Part Package Code
QFN

Package Description
HVQCCN, LCC20/24,.14X.18,20

Pin Count
20

Reach Compliance Code
compliant

HTS Code
8542.39.00.01

Samacsys Manufacturer
Texas Instruments

Interface IC Type
INTERFACE CIRCUIT

JESD-30 Code
R-PQCC-N20

JESD-609 Code
e4

Length
4.5 mm

Moisture Sensitivity Level
2

Number of Functions
1

Number of Terminals
20

Operating Temperature-Max
85 °C

Operating Temperature-Min
-40 °C

Package Body Material
PLASTIC/EPOXY

Package Code
HVQCCN

Package Equivalence Code
LCC20/24,.14X.18,20

Package Shape
RECTANGULAR

Package Style
CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

Peak Reflow Temperature (Cel)
260

Seated Height-Max
1 mm

Supply Voltage-Max
3.6 V

Supply Voltage-Min
1.2 V

Supply Voltage-Nom
1.5 V

Supply Voltage1-Max
5.5 V

Supply Voltage1-Min
1.65 V

Supply Voltage1-Nom
1.8 V

Surface Mount
YES

Temperature Grade
INDUSTRIAL

Terminal Finish
NICKEL PALLADIUM GOLD

Terminal Form
NO LEAD

Terminal Pitch
0.5 mm

Terminal Position
QUAD

Time@Peak Reflow Temperature-Max (s)
30

Width
3.5 mm

Download datasheets and manufacturer documentation for TI TXB0108RGYRG4.

Datasheets:

txb0108.pdf

TXB0108RGYRG4 Overview

Embedded in the VQFN EP package, it is available for you to use.Tape & Reel (TR) is the way in which it is packaged.When it comes to terminating a transmission line, there are 20 terminations.This device is powered by a supply voltage of 1.5V which is applied to it.20 pins are present on this board.In addition, it is designed with a pin number of 20.There are 8 bits in this electronic part, which means it is designed in such a way.There is a maximum voltage of 5.5V supported.In order for the machine to operate, the supply voltage must be 1.65V.Mounting this electronic component is done using the Surface Mount method.This object belongs to the category of Other Interface ICs.Level translators consumes 3.5?A of quiescent current wLevel translatorshout being affected by outside factors.In order for the system to operate properly, the operating temperature should be higher than -40°C.Level translators is recommended to work at a temperature lower than 85°C.Because it features 50mA output current, maximum design flexibility can be achieved.

TXB0108RGYRG4 Features

VQFN EP package
20 pin count
20 pins

TXB0108RGYRG4 Applications

There are a lot of Texas Instruments
TXB0108RGYRG4 voltage translators & level shifters applications.

SMBus
SDIO
UART
I2C
Automotive
Personal computing
Automotive infotainment
Advanced Driver Assistance System (ADAS)
Telematics
Handset
