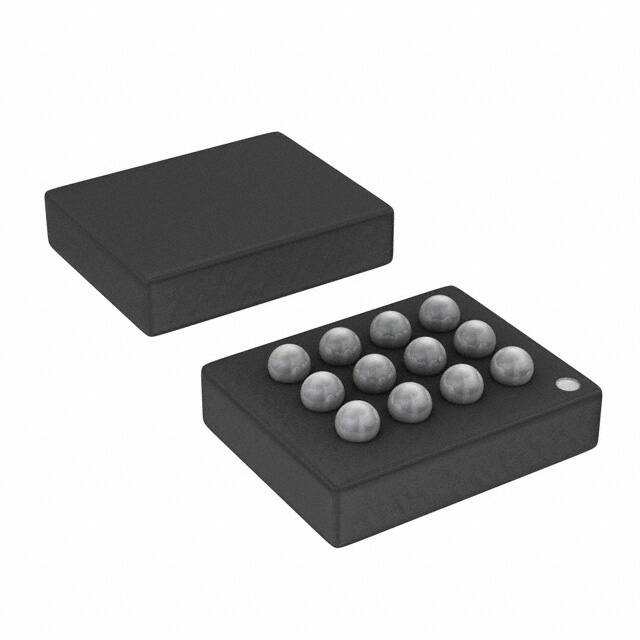

TI TXB0104ZXUR
Manufacturer No:
TXB0104ZXUR
Manufacturer:
Package:
12-UFBGA
Description:
Surface Mount 12 pins Tape & Reel (TR) Voltage Translators & Level Shifters 1 Voltage Level 12-UFBGA Active 6 Weeks Weeks 1 (Unlimited)
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
TXB0104ZXUR information
TI TXB0104ZXUR technical specifications, attributes, parameters and parts with similar specifications to TI TXB0104ZXUR.
- Type
- Parameter
- Lifecycle Status
- ACTIVE (Last Updated: 4 days ago)
- Factory Lead Time
- 6 Weeks
- Mount
- Surface Mount
- Mounting Type
- Surface Mount
- Package / Case
- 12-UFBGA
- Number of Pins
- 12
- Operating Temperature
- -40°C~85°C TA
- Packaging
- Tape & Reel (TR)
- JESD-609 Code
- e1
- Feature
- Auto-Direction Sensing
- Pbfree Code
- yes
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Number of Terminations
- 12
- ECCN Code
- EAR99
- Terminal Finish
- Tin/Silver/Copper (Sn/Ag/Cu)
- Subcategory
- Other Interface ICs
- Terminal Position
- BOTTOM
- Terminal Form
- BALL
- Peak Reflow Temperature (Cel)
- 260
- Number of Functions
- 1
- Supply Voltage
- 1.4V
- Terminal Pitch
- 0.5mm
- Base Part Number
- TXB0104
- Output Type
- Tri-State, Non-Inverted
- Number of Channels
- 4
- Number of Circuits
- 1
- Max Supply Voltage
- 5.5V
- Min Supply Voltage
- 1.2V
- Output Current
- 20?A
- Number of Bits
- 4
- Propagation Delay
- 31 ns
- Quiescent Current
- 3.5?A
- Turn On Delay Time
- 7.4 ns
- Logic Function
- Translator
- Data Rate
- 100Mbps
- Output Characteristics
- 3-STATE
- Rise Time
- 5.1ns
- Interface IC Type
- INTERFACE CIRCUIT
- High Level Output Current
- -20?A
- Channel Type
- Bidirectional
- Low Level Output Current
- 20?A
- Supply Voltage1-Nom
- 1.8V
- Translator Type
- Voltage Level
- Voltage - VCCA
- 1.2V~3.6V
- Voltage - VCCB
- 1.65V~5.5V
- Height
- 610?m
Download datasheets and manufacturer documentation for TI TXB0104ZXUR.
TXB0104ZXUR Overview
A package called 12-UFBGA contains it.A package of Tape & Reel (TR) has been used.In this configuration, the output is set to Tri-State, Non-Inverted.Translator type Voltage Level is associated with this electrical device.Surface Mount is the way in which this electronic part is mounted.Electrical device with type Bidirectional channel.Level translators operates at -40°C~85°C TA.The superior flexibility of the system is achieved through its use of 1 circuits.As part of the transmission line termination process, there are a total of 12 terminations.Based on this base part number TXB0104, its related parts can be identified.In order for it to operate, it needs to be powered by a voltage of 1.4V.Level translators has 12 pins.Level translators has 12 pins.The design of this electronic part is based on 4 bits.Voltages above 5.5V are supported.This device requires a minimum voltage of 1.2V.A VCCA supply rail is configured as 1.2V~3.6V.A VCCB supply rail is configured as 1.65V~5.5V.With the Surface Mount method, it is mounted.Level translators is 4 channels.Level translators belongs to the group of Other Interface ICs.The quiescent current consumed by it is 3.5?A because it is unaffected by external factors.Operating can ensure that Auto-Direction Sensing is achieved.As a result of its 20?A output current, it allows for maximum design flexibility.
TXB0104ZXUR Features
12-UFBGA package
1 circuits
12 pin count
12 pins
TXB0104ZXUR Applications
There are a lot of Texas Instruments
TXB0104ZXUR voltage translators & level shifters applications.
- MDIO
- PMBus
- SMBus
- SDIO
- UART
- I2C
- Automotive
- Personal computing
- Automotive infotainment
- Advanced Driver Assistance System (ADAS)
