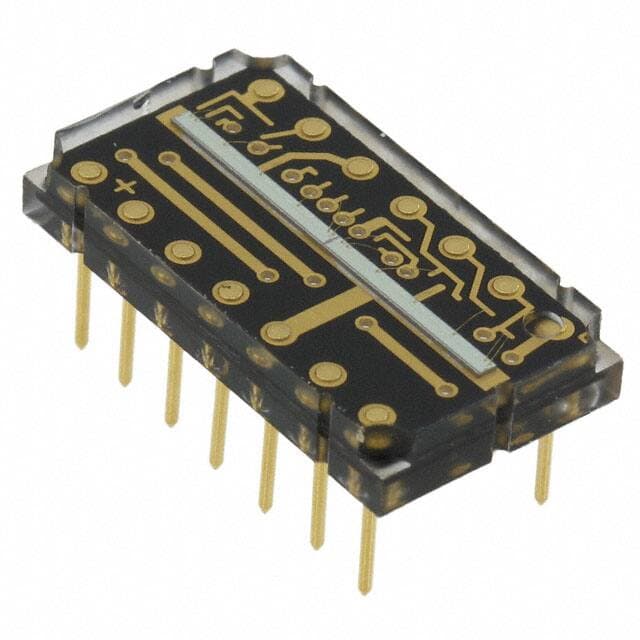

OSRAM TSL1402R

Manufacturer No:

TSL1402R

Manufacturer:

OSRAM

Package:

Description:

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TSL1402R information

OSRAM TSL1402R technical specifications, attributes, parameters and parts with similar specifications to OSRAM TSL1402R.

Type
Parameter

Package / Case
P

Number of Pins
14

Packaging
Tube

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Max Operating Temperature
85°C

Min Operating Temperature
-25°C

Output Type
Analog Voltage

Operating Supply Voltage
5V

Operating Supply Current
9mA

Sensor Type
Linear Optical Array

Max Frequency
8MHz

Wavelength
1km

Max Supply Voltage (DC)
5V

Min Supply Voltage (DC)
3V

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for OSRAM TSL1402R.

Datasheets:

ams-tsl1402r-datasheets-9852.pdf

TSL1402R Description

The TSL1402R linear sensor array is made up of two parts, each with 128 photodiodes, together with charge amplifier electronics, which are arranged in a straight line to create a contiguous 256 1 pixel array. The system has a pixel data-hold feature that gives all pixels with synchronous integration start and stop times. The pixels have a 63.5 mm by 55.5 mm size, a 63.5 mm center-to-center distance, and an 8 mm interpixel distance. Internal circuitry that simply needs a serial-input pulse (SI) and a clock simplifies operation.

TSL1402R Features

4000:1 Wide Dynamic Range (72 dB)
Reference to Ground for Output
Low Image Lag: 5% Typ
functioning at 8 MHz
only one 3-V to 5-V supply

TSL1402R Applications

Switching applications
