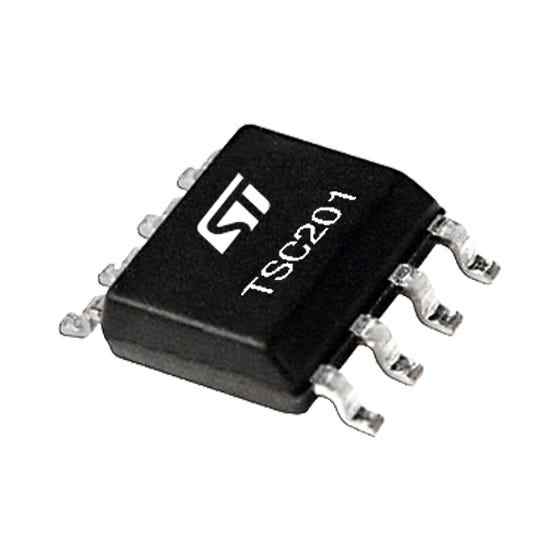

STMicroelectronics TSC201IYDT
Manufacturer No:
TSC201IYDT
Manufacturer:
Package:
Description:
High voltage, current sense amplifier with open drain comparator and ref
Quantity:
User Guide
Aichiplink operates certified in-house inspection and testing facilities to ensure all electronic components meet internationally recognized quality and compliance standards. Our quality management system is verified through ISO 9001 certification and industry-standard inspection procedures.
Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.
MEANS OF PAYMENTFor your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.
RFQ (REQUEST FOR QUOTATIONS)Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.
Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.
Step1：Prepare product
Step2：Desiccant Protection
Step3：Vacuum Packaging
Step4：Individual Package
Step5：Anti-collision Filling
Step6：Packaging Box
1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.
Currently, our products are shipped through DHL, FedEx, SF, and UPS.
DELIVERY TIME1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.
TSC201IYDT Information
STMicroelectronics TSC201IYDT technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics TSC201IYDT.
- Type
- Parameter
- Supply Voltage Min Volt
- 2.7
- Supply Voltage Max Volt
- 18.0
- Operating Temp Min Celsius
- -40.0
- Operating Temp Max Celsius
- 125.0
- ECCN US
- EAR99
- ECCN EU
- NEC
- Packing Type
- Tape And Reel
- RoHS Status
- Grade
- Automotive
- Package Name
- SO-8
- Type
- Parameter
- Supply Voltage Min Volt
- 2.7
- Supply Voltage Max Volt
- 18.0
- Operating Temp Min Celsius
- -40.0
- Operating Temp Max Celsius
- 125.0
- ECCN US
- EAR99
- ECCN EU
- NEC
- Packing Type
- Tape And Reel
- RoHS Status
- Grade
- Automotive
- Package Name
- SO-8
Download datasheets and manufacturer documentation for STMicroelectronics TSC201IYDT.
Data sheet:
Material Declaration:
The TSC200, TSC201 and TSC202 are high-side current sense amplifiers which deliver an analog voltage output. They can sense current via a shunt resistor over a wide range of common-mode voltages, from -16 to +80 V, whatever the supply voltage is. They are available with an amplification gain of 20 V/V for TSC200, 50 V/V for TSC201, and 100 V/V for TSC202.
The TSC200, TSC201 and TSC202 integrate an open-drain comparator with output latch function and an internal 0.6 V voltage reference connected to its input. The external resistor divider can then set the switching threshold.
These devices fully operate over the broad supply voltage range of 2.7 to 18 V and over the automotive temperature range of -40 to +125 °C.
- AEC-Q100 qualified
- Wide common-mode voltage: -16 to 80 V
- 2.7 to 18 V supply voltage
- Amplification gain:
- TSC200: 20 V/V
- TSC201: 50 V/V
- TSC202: 100 V/V
- 0.6 V internal reference
- Internal open-drain comparator
- Latching capability on comparator
- High accuracy: 3.5 % max. error vs. temperature
- Bandwidth: 1 MHz (TSC200)
- Quiescent current: 1.8 mA maximum
- SO8 and MiniSO8 package
