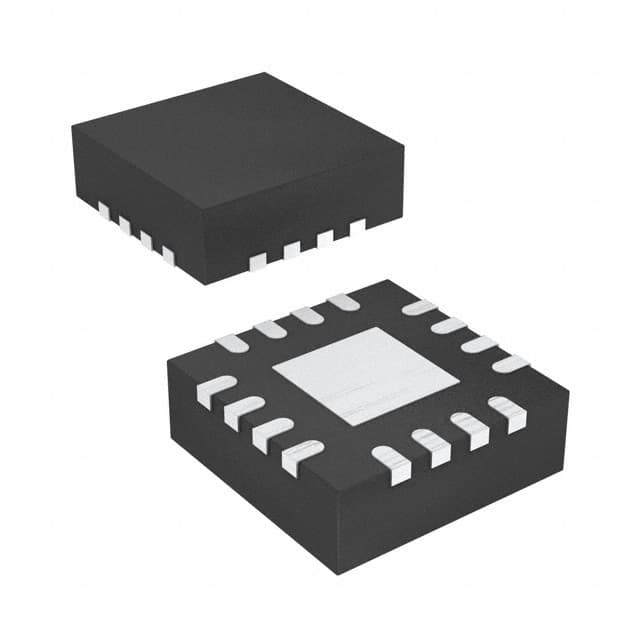

TI TSC2008IRGVR

Manufacturer No:

TSC2008IRGVR

Manufacturer:

Package:

16-VFQFN Exposed Pad

Description:

12 Bit 0.65mm Gold Touch Screen Controller TSC2008 16-VFQFN Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TSC2008IRGVR information

TI TSC2008IRGVR technical specifications, attributes, parameters and parts with similar specifications to TI TSC2008IRGVR.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 5 days ago)

Factory Lead Time
6 Weeks

Contact Plating
Gold

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
16-VFQFN Exposed Pad

Number of Pins
16

Operating Temperature
-40°C~85°C

Packaging
Tape & Reel (TR)

JESD-609 Code
e4

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
2 (1 Year)

Number of Terminations
16

HTS Code
8542.39.00.01

Subcategory
Other Consumer ICs

Technology
CMOS

Voltage - Supply
1.2V~3.6V

Terminal Position
QUAD

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Terminal Pitch
0.65mm

Base Part Number
TSC2008

Pin Count
16

Power Supplies
1.2/3.6V

Supply Voltage-Min (Vsup)
1.2V

Interface
SPI

Nominal Supply Current
285?A

Number of Bits
12

Consumer IC Type
CONSUMER CIRCUIT

Resolution (Bits)
8 b, 12 b

Touchscreen
4 Wire Resistive

Voltage Reference
External

Height
1mm

Length
4mm

Width
4mm

Thickness
900?m

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for TI TSC2008IRGVR.

TSC2008IRGVR Overview

Presented in a Tape & Reel (TR) package.This item was shipped with package 16-VFQFN Exposed Pad.SPI interface enables better data acquisition performance.In Surface Mount, the part is mounted.This unit should read 1.2V~3.6V for the supply voltage even if your meter does not.For this chip, the average operating temperature should be -40°C~85°C.It has 16 terminals in total, each with its own functions.Its base part number is TSC2008.16 pins make up the part's total number.The voltage reference provided by the device is External.For your specialized needs, we have a 16-pin data acquisition device.Linear devices can operate at voltages as low as 1.2V.It is designed to enhance design flexibility through the use of Surface Mount.This device acquires data at a high resolution of 12-bits.The part cannot be supplied with voltages higher than 3.6V.Additionally, it is used in consumer electronics.Like other high-quality Other Consumer ICss, this one is capable of acquiring data at a very high rate.A 1.2/3.6V power supply is required for this part.

TSC2008IRGVR Features

TSC2008IRGVR Applications

There are a lot of Texas Instruments
TSC2008IRGVR Touch Screen Controllers applications.

CMOS Image sensors for mobile applications
Medical Instrumentation and medical imaging
Music recording
Digital signal processing
Scientific instruments
Rotary encoder
Displaying
Transducer
Microcontrollers.
Digital Storage Oscilloscope
