STMicroelectronics TSC1641IQT
Manufacturer No:
TSC1641IQT
Manufacturer:
Package:
Description:

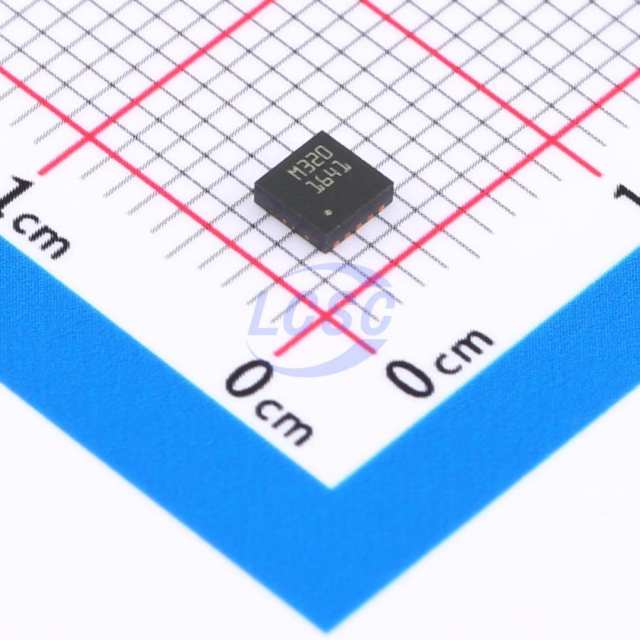

Analog Front End - AFE 60V, 16-bit, High precision, I3C/I2C, digital current/voltage/power/temp Monitor
Quantity:
User Guide
Aichiplink operates certified in-house inspection and testing facilities to ensure all electronic components meet internationally recognized quality and compliance standards. Our quality management system is verified through ISO 9001 certification and industry-standard inspection procedures.
Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.
MEANS OF PAYMENTFor your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.
RFQ (REQUEST FOR QUOTATIONS)Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.
Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.
Step1：Prepare product
Step2：Desiccant Protection
Step3：Vacuum Packaging
Step4：Individual Package
Step5：Anti-collision Filling
Step6：Packaging Box
1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.
Currently, our products are shipped through DHL, FedEx, SF, and UPS.
DELIVERY TIME1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.
TSC1641IQT Information
STMicroelectronics TSC1641IQT technical specifications, attributes, parameters and parts with similar specifications to STMicroelectronics TSC1641IQT.
- Type
- Parameter
- Input Voltage Min Volt
- -0.08191
- Input Voltage Max Volt
- 0.08182
- Supply Voltage Min Volt
- 2.7
- Supply Voltage Max Volt
- 3.6
- Operating Temp Min Celsius
- -40.0
- Operating Temp Max Celsius
- 125.0
- ECCN US
- EAR99
- ECCN EU
- NEC
- Packing Type
- Tape And Reel
- RoHS Status
- Type
- Parameter
- Grade
- Industrial
- Package Name
- VDFPN 10 3x3x1.0
- Input Voltage Min Volt
- -0.08191
- Input Voltage Max Volt
- 0.08182
- Supply Voltage Min Volt
- 2.7
- Supply Voltage Max Volt
- 3.6
- Operating Temp Min Celsius
- -40.0
- Operating Temp Max Celsius
- 125.0
- ECCN US
- EAR99
- ECCN EU
- NEC
Download datasheets and manufacturer documentation for STMicroelectronics TSC1641IQT.
Data sheet:
The TSC1641 is a high-precision current, voltage, power, and temperature monitoring analog front-end (AFE). It monitors current into a shunt resistor and load voltage up to 60 V in a synchronized way. The current measurement can be high-side, low-side, and bidirectional.
The device integrates high-precision 16-bit dual-channel ADC with a programmable conversion time from 128 µs to 32.7 ms.
Digital bus interface is flexible from I²C/SMbus 1 MHz data rate to MIPI I3C 12.5 MHz data rate. This allows connectivity to most of the recent STM32 products.
The TSC1641 allows the assertion of several alerts regarding the voltage, current, power and temperature. Thresholds can be set for each parameter in a specific register.
The TSC1641 comes in a plastic DFN10 package and can operate from -40 °C to 125 °C ambient temperature.
- 16-bit resolution dual-channel sigma-delta ADC
- 2.7 V to 3.6 V power supply voltage
- From 128 µs to 32.7 ms total conversion time
- Bidirectional current, high-side, or low-side sensing
- Load voltage sensing from 0 V to 60 V
- Ultra-low input bias current: 20 pA typical at VCM = 12 V
- Ultra-low shutdown current: 50 nA typical
- Shunt offset voltage: ±3 µV typical
- Shunt and load voltage gain error: 0.5% maximum
- Internal die temperature monitoring
- MIPI I3C up to 12.5 MHz
- I²C bus interface up to 1 MHz
- Default I²C address: 1000000(b) to 1000011(b)
- SMBus alert compatible
- Alert signals generated in case of over/undervoltage, over/undercurrent, overpower, or overtemperature
- Extended temperature range: -40 °C to 125 °C
- DFN10 3 x 3 mm² package
