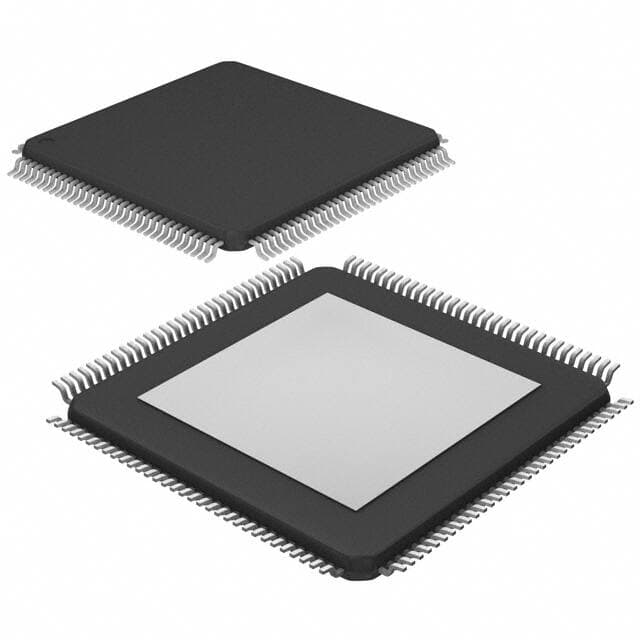

TI TSB43AB23PDT

Manufacturer No:

TSB43AB23PDT

Manufacturer:

Package:

128-TQFP

Description:

3V~3.6V CMOS IEEE 1394-1995, 1394a-2000, OHCI, Firewire?, i.Link? PCI Controllers Interface ICs QUAD TSB43AB23 128 Pins Physical Layer Controller 0.4mm 128-TQFP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TSB43AB23PDT information

TI TSB43AB23PDT technical specifications, attributes, parameters and parts with similar specifications to TI TSB43AB23PDT.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 5 days ago)

Factory Lead Time
6 Weeks

Package / Case
128-TQFP

Surface Mount
YES

Number of Pins
128

Weight
503.487531mg

Operating Temperature
0°C~70°C

Packaging
Tray

JESD-609 Code
e4

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
128

Termination
SMD/SMT

Terminal Finish
Nickel/Palladium/Gold (Ni/Pd/Au)

HTS Code
8542.31.00.01

Subcategory
Bus Controllers

Technology
CMOS

Voltage - Supply
3V~3.6V

Terminal Position
QUAD

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Supply Voltage
3.3V

Terminal Pitch
0.4mm

Function
Physical Layer Controller

Power Supplies
1.833.33.3/5V

Interface
PCI

Number of I/O
2

Nominal Supply Current
158mA

uPs/uCs/Peripheral ICs Type
SERIAL IO/COMMUNICATION CONTROLLER, SERIAL

Clock Frequency
24.576MHz

Data Rate
400 Mbps

Protocol
IEEE 1394

Boundary Scan
NO

Low Power Mode
YES

Number of Serial I/Os
1

Standards
IEEE 1394-1995, 1394a-2000, OHCI, Firewire?, i.Link?

Bus Compatibility
PCI

Data Transfer Rate-Max
50 MBps

Height
1.2mm

Length
14mm

Width
14mm

Thickness
1mm

REACH SVHC
No SVHC

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for TI TSB43AB23PDT.

PCN Packaging:

texasinstruments-lm9833ccvjdnopb-pcnpackaging-6844.pdf

TSB43AB23PDT Overview

128-TQFP contains it. With its Tray-shaped packaging, it's easy to carry. Temperature regulation to 0°C~70°C ensures reliable operation. Using a 3V~3.6VV power source should be fine. In it, there are terminations that end in 128. 3.3V is an ideal supply voltage for high efficiency. As a member of the TSB43AB23 family, it is a prime number. It operates by using 128 pins. In total, there are SERIAL IO/COMMUNICATION CONTROLLER, SERIAL ULs/ULCs/Peripheral ICs in this gadget. As far as the device's clock is concerned, it runs at the frequency of 24.576MHz. It is set to 1.833.33.3/5V for the power supply of the component. There is no need for external power in Bus Controllers. 1 serial I/Os are integrated into the part. 2I/Os are included.

TSB43AB23PDT Features

24.576MHz clock frequency
Bus Controllers subcategory

TSB43AB23PDT Applications

There are a lot of Texas Instruments
TSB43AB23PDT Controllers Interface ICs applications.
