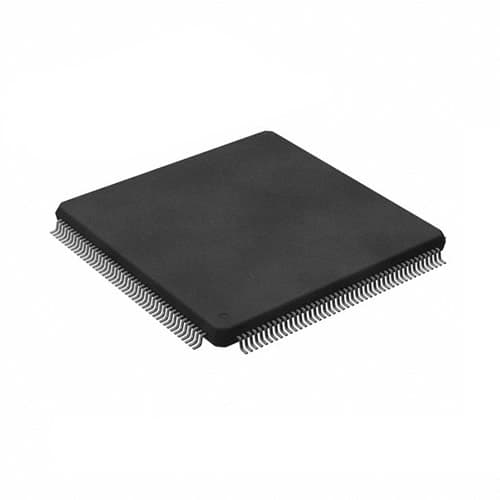

TI TSB12LV21BPGFG4

Manufacturer No:

TSB12LV21BPGFG4

Manufacturer:

Package:

LQFP

Description:

CMOS Parallel Controllers Interface ICs QUAD 176 Pins 0.5mm LQFP

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TSB12LV21BPGFG4 information

TI TSB12LV21BPGFG4 technical specifications, attributes, parameters and parts with similar specifications to TI TSB12LV21BPGFG4.

Type
Parameter

Mount
Surface Mount

Package / Case
LQFP

Number of Pins
176

Weight
1.896186g

JESD-609 Code
e4

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
176

ECCN Code
EAR99

Terminal Finish
Nickel/Palladium/Gold (Ni/Pd/Au)

Max Operating Temperature
70°C

Min Operating Temperature
0°C

Additional Feature
ALSO REQUIRES 4.5 TO 5.5 VOLTS

HTS Code
8542.39.00.01

Subcategory
Bus Controllers

Technology
CMOS

Terminal Position
QUAD

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Supply Voltage
3.3V

Terminal Pitch
0.5mm

Pin Count
176

Supply Voltage-Max (Vsup)
3.6V

Power Supplies
3.3/5V

Temperature Grade
COMMERCIAL

Interface
Parallel

uPs/uCs/Peripheral ICs Type
SERIAL IO/COMMUNICATION CONTROLLER, SERIAL

Clock Frequency
33MHz

Boundary Scan
NO

Low Power Mode
NO

Number of Serial I/Os
1

Bus Compatibility
PCI

Data Transfer Rate-Max
50 MBps

Number of DMA Channels
5

Communication Protocol
IEEE1394

Height
1.4mm

Length
24mm

Width
24mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for TI TSB12LV21BPGFG4.

TSB12LV21BPGFG4 Overview

It is available in the LQFP package. A 176 termination can be found in it. Supply voltages of 3.3V can achieve high efficiencies. There are 176 pins used in order to operate the device. I have found that this gadget has a total of SERIAL IO/COMMUNICATION CONTROLLER, SERIAL uPs/uCs/peripheral ICs in total. At the time of writing, the clock of this device is running at a frequency of 33MHz. It is set to 3.3/5V in the power supply settings for the component. This device is a self-contained unit in Bus Controllers. This part incorporates serial I/Os on the 1 axis. Having a maximum operating temperature of 70°C°C supports stable operation. Reliability is ensured by operating it at a minimum temperature of 0°C degrees Celsius. The number ALSO REQUIRES 4.5 TO 5.5 VOLTS can also be generated by this device. Default maximum supply voltage (Vsup) is 3.6V. The supply voltage (Vsup) should be kept above 3V so the device can function normally. The pin count of this device is 176.
