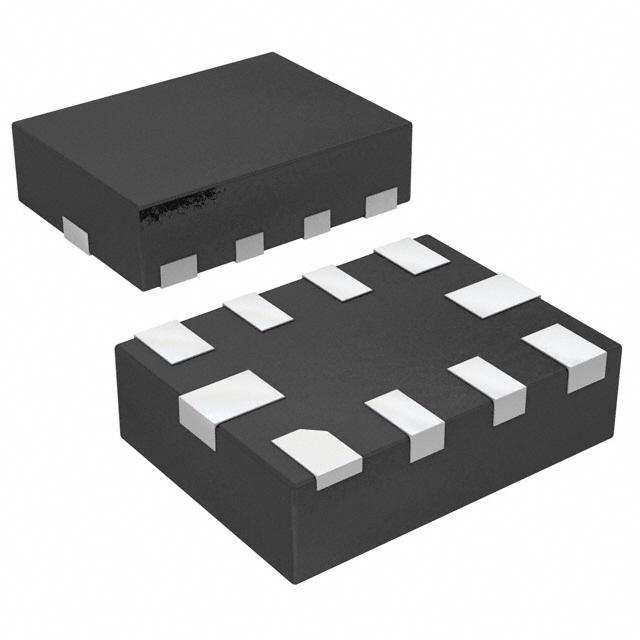

TI TS5A23157RSERG4

Manufacturer No:

TS5A23157RSERG4

Manufacturer:

Package:

Description:

QUAD Analog Switches BREAK-BEFORE-MAKE 10 Pins 1.8V

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TS5A23157RSERG4 information

TI TS5A23157RSERG4 technical specifications, attributes, parameters and parts with similar specifications to TI TS5A23157RSERG4.

Type
Parameter

Mount
Surface Mount

Number of Pins
10

Weight
7.002332mg

Packaging
Tape and Reel

JESD-609 Code
e4

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
10

Resistance
10Ohm

Terminal Finish
Nickel/Palladium/Gold (Ni/Pd/Au)

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Additional Feature
VIDEO APPLICATION

Subcategory
Multiplexer or Switches

Terminal Position
QUAD

Peak Reflow Temperature (Cel)
260

Number of Functions
2

Supply Voltage
1.8V

Terminal Pitch
0.5mm

Pin Count
10

Number of Outputs
4

Power Supplies
1.8/5V

Temperature Grade
INDUSTRIAL

Number of Channels
2

Max Supply Voltage
5.5V

Operating Supply Current
1?A

Nominal Supply Current
1?A

Max Supply Current
10?A

Throw Configuration
SPDT

Turn On Delay Time
5.7 ns

Supply Type
Single

Bandwidth
220MHz

Turn-Off Delay Time
3.8 ns

Off-state Isolation-Nom
60 dB

On-state Resistance Match-Nom
1Ohm

Switching
BREAK-BEFORE-MAKE

Switch-off Time-Max
13ns

Height Seated (Max)
0.6mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for TI TS5A23157RSERG4.

TS5A23157RSERG4 Overview

A high level of reliability can be achieved through the use of an advanced packaging method Tape and Reel. Total terminations are 10. The electronic part provides high-quality output because it has 2 channels. Powered by a 1.8V voltage supply, the electrical part should be switched on and run. The electrical component body receives 10 pins. An switch multiplexer with 10Ohm internal resistance has a value of 10Ohm. Datasheets for 10 pin functions are available upon request. The analogue multiplexer in this example is a typical Multiplexer or Switches. Multiplexers should not be powered above 5.5V in normal situations. The analog switch ic is of the Single supply type and is cost-effective. The lowest voltage the electronic part should receive is 1.8V. An operating current of 1?A would be sufficient for this switch device. When the digital multiplexer is charged above 10?A, damage can occur. There are 220MHz bandwidths for data transfer. Don't forget the additional features of this electronic part, such as: VIDEO APPLICATION. Temperatures above 85°C degrees Celsius should not be operated by the multiplexer. A analog switch ics with 4 outputs is included.

TS5A23157RSERG4 Features

2 Channels
1?A Supply Current
Bandwidth: 220MHz
Additional Features: VIDEO APPLICATION

TS5A23157RSERG4 Applications

There are a lot of Texas Instruments
TS5A23157RSERG4 Analog Switches & Multiplexers ICs applications.

Imaging
Ultrasound
Audio and video switching
Automatic test equipment
Precision data acquisition
Battery-powered systems
Sample-and-hold systems
Communication systems
Data Acquisition Systems
Relay Replacement
