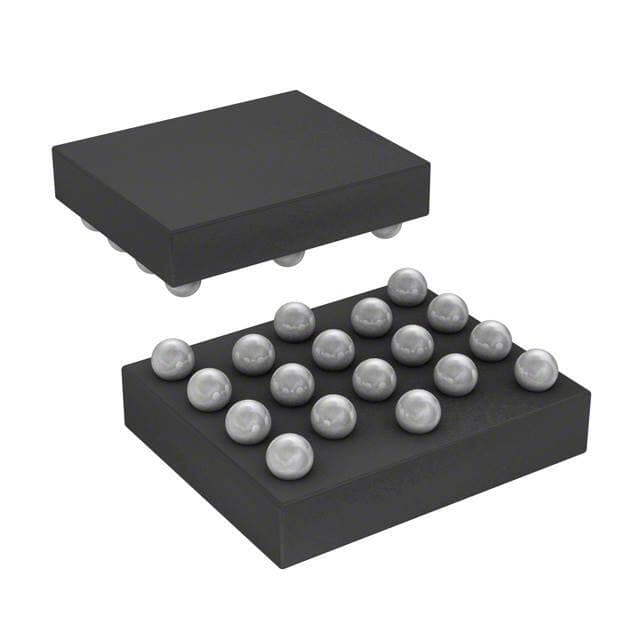

ST TS4956EIJT

Manufacturer No:

TS4956EIJT

Manufacturer:

Package:

18-UFBGA, FCBGA

Description:

6.7mA mA 20 kHz kHz 1W W Audio Amplifiers 2.4mm mm 18 pins 18-UFBGA, FCBGA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TS4956EIJT information

ST TS4956EIJT technical specifications, attributes, parameters and parts with similar specifications to ST TS4956EIJT.

Type
Parameter

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
18-UFBGA, FCBGA

Number of Pins
18

Operating Temperature
-40°C~85°C TA

Packaging
Tape & Reel (TR)

Feature
Depop, Differential Inputs, I2C, Shutdown, Standby, Thermal Protection, Volume Control

Pbfree Code
yes

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
18

ECCN Code
EAR99

Type
Class AB

Subcategory
Audio/Video Amplifiers

Voltage - Supply
2.7V~5.5V

Terminal Position
BOTTOM

Terminal Form
BALL

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Time@Peak Reflow Temperature-Max (s)
40

Base Part Number
TS4956

Pin Count
18

Output Type
1-Channel (Mono) with Mono and Stereo Headphones

Operating Supply Voltage
5V

Number of Channels
1

Nominal Supply Current
6.7mA

Quiescent Current
6.7mA

Output Power
1.055W

Supply Type
Single

Bandwidth
20 kHz

Power Supply Rejection Ratio (PSRR)
78dB

Gain
12 dB

Max Output Power
1W

Max Output Power x Channels @ Load
1W x 1 @ 8 ?; 43mW x 2 @ 32 ?

Harmonic Distortion
1%

Length
2.5mm

Height Seated (Max)
0.6mm

Width
2.4mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free
