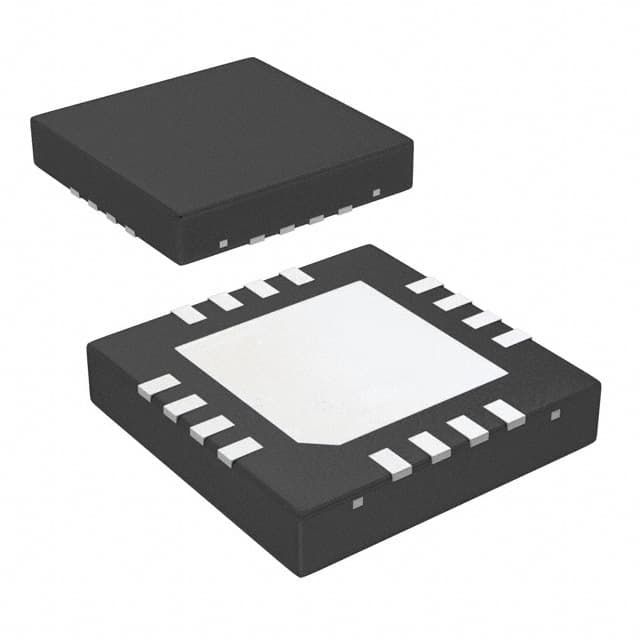

SEMTECH TS30011-M000QFNR
Manufacturer No:
TS30011-M000QFNR
Manufacturer:
Package:
16-VFQFN Exposed Pad
Description:
16 Terminals 4.5V TS30011 DC DC Voltage Regulator SWITCHING REGULATOR 1 Outputs 1MHz Tape & Reel (TR) 1A 16-VFQFN Exposed Pad
Quantity:
Delivery:
Payment:
In Stock :Available
Price not displayed? Please send an RFQ, and we will respond immediately.
TS30011-M000QFNR information
SEMTECH TS30011-M000QFNR technical specifications, attributes, parameters and parts with similar specifications to SEMTECH TS30011-M000QFNR.
- Type
- Parameter
- Factory Lead Time
- 5 Weeks
- Mount
- Surface Mount
- Mounting Type
- Surface Mount
- Package / Case
- 16-VFQFN Exposed Pad
- Operating Temperature
- -40°C~125°C TJ
- Packaging
- Tape & Reel (TR)
- Published
- 2015
- Part Status
- Active
- Moisture Sensitivity Level (MSL)
- 1 (Unlimited)
- Number of Terminations
- 16
- ECCN Code
- EAR99
- Terminal Position
- QUAD
- Terminal Form
- NO LEAD
- Peak Reflow Temperature (Cel)
- 260
- Terminal Pitch
- 0.5mm
- Time@Peak Reflow Temperature-Max (s)
- NOT SPECIFIED
- Base Part Number
- TS30011
- Function
- Step-Down
- Number of Outputs
- 1
- Voltage - Input (Max)
- 24V
- Output Type
- Adjustable
- Voltage - Input (Min)
- 4.5V
- Input Voltage-Nom
- 12V
- Analog IC - Other Type
- SWITCHING REGULATOR
- Current - Output
- 1A
- Max Output Voltage
- 23V
- Voltage - Output (Min/Fixed)
- 0.9V
- Topology
- Buck
- Control Mode
- CURRENT-MODE
- Frequency - Switching
- 1MHz
- Control Technique
- PULSE WIDTH MODULATION
- Synchronous Rectifier
- Yes
- Min Output Voltage
- 900mV
- Length
- 3mm
- Width
- 3mm
- RoHS Status
- RoHS Compliant
- Lead Free
- Lead Free
Download datasheets and manufacturer documentation for SEMTECH TS30011-M000QFNR.
PCN Packaging:
TS30011-M000QFNR Overview
For optimal performance, this voltage regulator makes use of the Tape & Reel (TR) package. In this voltage regulator, there are a total of 16 terminations. There is one type of analog IC that this voltage regulator is equipped with, and that is the SWITCHING REGULATOR type. In order to save space, this harley voltage regulator is available in the 16-VFQFN Exposed Pad package. There are 1 outputs configured on this voltage regulator 12v. There are output pins on this DC DC switching regulator that generate Adjustable output. Surface Mount-mounting is compatible with this switching regulator. The operating temperature should be kept at -40°C~125°C TJ when the voltage regulator 12v is in operation. This DC-DC switching regulator has a switching frequency of 1MHz. The voltage regulator can operate with a dc to dc voltage regulator's minimum input voltage of 4.5V. As a result, the output voltage of the voltage regulator 12v (Min/Fixed) is 0.9V. It features maximum design flexibility due to dc to dc voltage regulator's 1A output current. Voltage regulator has a maximum input voltage of 24V. 260 is essentially indestructible due to DC DC switching regulator's peak reflow temperature. In order to meet the operation requirements,voltage regulator is designed to provide a nominal input voltage of 12V. The TS30011 family of DC/DC regulators includes this DC/DC regulator. There should be at least a 900mV volt output voltage for this switching regulator in order to make it work properly. The maximum output voltage of this regulator voltage is 23V.
TS30011-M000QFNR Features
1 outputs
Peak reflow temperature (Cel) of 260
TS30011-M000QFNR Applications
There are a lot of Semtech Corporation
TS30011-M000QFNR Voltage Regulators applications.
- Servo drive system
- Digital display device
- Linear guide
- Ball screw pair
- Computer application technology
- Network technology
- Automation technology
- CMM
- Various precision measuring instruments
- Various precision measuring detectors
