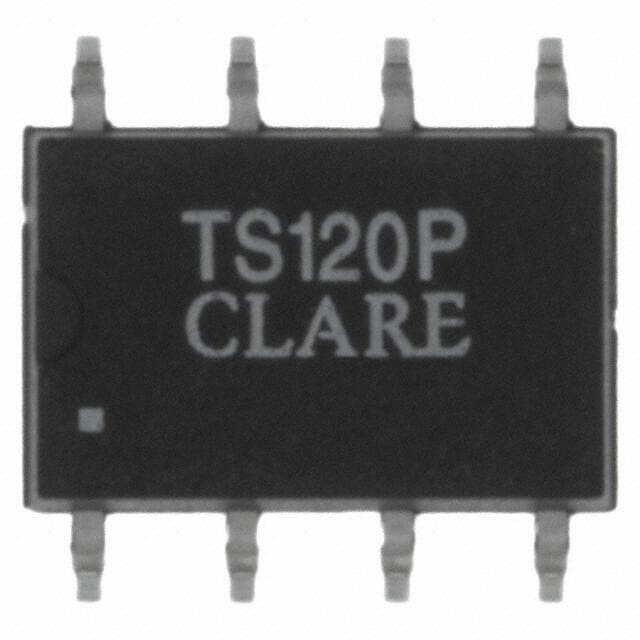

LITTELFUSE TS120P

Manufacturer No:

TS120P

Manufacturer:

LITTELFUSE

Package:

8-ESOP (0.250, 6.35mm Width)

Description:

Description: Solid State Relay, TRANSISTOR OUTPUT SOLID STATE RELAY, 3750 V ISOLATION-MAX, FP-8

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TS120P information

LITTELFUSE TS120P technical specifications, attributes, parameters and parts with similar specifications to LITTELFUSE TS120P.

Type
Parameter

Pbfree Code
Yes

RoHS Status
RoHS Compliant

Part Life Cycle Code
Obsolete

Ihs Manufacturer
IXYS INTEGRATED CIRCUITS DIVISION

Reach Compliance Code
unknown

HTS Code
8541.40.95.00

Additional Feature
UL RECOGNIZED, CMOS COMPATIBLE, HIGH RELIABILITY

Configuration
SINGLE WITH OPTOCOUPLER AC INPUT-TRANSISTOR OUTPUT

Control Current
0.005 A

Control Voltage
0.9 V

Forward Current-Max
0.05 A

Isolation Voltage-Max
3750 V

JESD-609 Code
e3

Number of Elements
1

On-State Current-Max
0.12 A

On-state Resistance-Max
35 Ω

Operating Temperature-Max
85 °C

Operating Temperature-Min
-40 °C

Optoelectronic Device Type
TRANSISTOR OUTPUT SSR

Terminal Finish
Matte Tin (Sn)

Download datasheets and manufacturer documentation for LITTELFUSE TS120P.

Datasheets:

ixys-ts120p-datasheets-7650.pdf

TS120P Overview

In order to save space on the board, the 8-ESOP (0.250, 6.35mm Width) package is used.Telecommunications equipment is packed using the Tube method.Mounting type Surface Mount is used.2 circuits make up this telecom IC .At -40°C~85°C, reliable performance can be achieved.Telecom switching is mounted in a Surface Mount-direction.There are 8 pins on this telecom interface.In order to ensure normal operation, the temperature is set to the minimum value of -40°C.A maximum value of 85°C is set to ensure normal operation.The telecommunication product can work with a resistance of 35Ohm.

TS120P Features

Available in the 8-ESOP (0.250, 6.35mm Width) package

TS120P Applications

There are a lot of IXYS Integrated Circuits Division
TS120P Telecom applications.

Switches
LAN Routers
Digital Modems
SONET/SDH terminal
Add/Drop multiplexers (ADMs)
T1/E1/J1 add/drop multiplexers (MUX)
Channel Service Units (CSUs): T1/E1/J1
Fractional T1/E1/J1
BITS Timing
Digital Access Cross-connect System (DACs)
