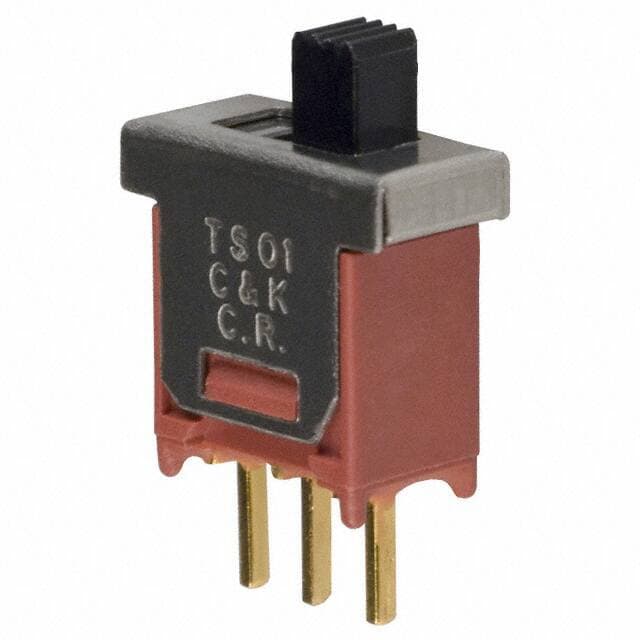

C&K TS01CBE

Manufacturer No:

TS01CBE

Manufacturer:

C&K

Package:

ROHS COMPLIANT

Description:

Description: SLIDE SWITCH, SPDT, LATCHED, 0.02A, 20VDC, THROUGH HOLE-STRAIGHT, ROHS COMPLIANT

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TS01CBE information

C&K TS01CBE technical specifications, attributes, parameters and parts with similar specifications to C&K TS01CBE.

Type
Parameter

Pbfree Code
Yes

RoHS Status
RoHS Compliant

Part Life Cycle Code
Active

Ihs Manufacturer
C & K COMPONENTS LLC

Package Description
ROHS COMPLIANT

Reach Compliance Code
compliant

ECCN Code
EAR99

HTS Code
8536.50.90.50

Actuator Length
0.122 inch

Actuator Material
NYLON

Actuator Type
SLIDE

Additional Feature
ROHS COMPLIANT

Body Breadth
5.08 mm

Body Height
8.79 mm

Body Length or Diameter
10.16 mm

Center Contact Material
COPPER ALLOY

Center Contact Plating
GOLD OVER NICKEL

Contact (AC) Max Rating R Load
.02A@20VAC

Contact Current(AC)-Max
0.02 A

Contact Current(DC)-Max
0.02 A

Contact (DC) Max Rating R Load
.02A@20VDC

Contact Function
ON-ON

Contact Voltage(AC)-Max
20 V

Contact Voltage(DC)-Max
20 V

Electrical Life
60000 Cycle(s)

End Contact Material
COPPER ALLOY

End Contact Plating
GOLD OVER NICKEL

Housing Material
STAINLESS STEEL

Insulation Resistance
1000000000 Ω

JESD-609 Code
e4

Mounting Feature
THROUGH HOLE-STRAIGHT

Number of Positions
1

Operating Temperature-Max
85 °C

Operating Temperature-Min
-30 °C

Sealing
EPOXY TERMINAL SEALED

Solderability
MIL-STD

Surface Mount
NO

Switch Action
LATCHED

Switch Function
SPDT

Switch Type
SLIDE SWITCH

Terminal Finish
GOLD OVER NICKEL

Terminal Length
0.13 inch

Terminal Material
COPPER ALLOY

Termination Type
SOLDER

Washability
WATER/STEAM

Download datasheets and manufacturer documentation for C&K TS01CBE.

Description: The C&K Components TS01CBE Slide Switch is a single-pole double-throw (SPDT) switch with a 0.4VA maximum power rating and a 20V maximum voltage rating. It is a miniature, low-profile switch with a slide actuator and a snap-in mounting design.

Features:
? SPDT switch with 0.4VA maximum power rating and 20V maximum voltage rating
? Miniature, low-profile design
? Slide actuator
? Snap-in mounting design
? RoHS compliant

Applications: The C&K Components TS01CBE Slide Switch is suitable for a wide range of applications, including consumer electronics, automotive, industrial, and medical devices. It can be used for switching, routing, and controlling signals in a variety of applications.
