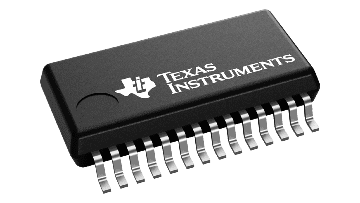

Texas Instruments TRS3243EIDBRG4

Manufacturer No:

TRS3243EIDBRG4

Manufacturer:

Texas Instruments

Package:

Description:

3- to 5.5-V multichannel 500kbps RS-232 line driver/receiver with +/-15-kV IEC-ESD protection

Quantity:

In Stock :4168

Looking for price or availability? Send us an RFQ and our sales team will respond quickly.

Shipping & Availability

Fast worldwide shipping via DHL, FedEx, UPS, and EMS.

Shipped from：HK Warehouse

Expected Shipping：Wed, May 13 - Thu, May 14, 2026

Lead Time：Inquire about availability

Date Code：Within 2 Years

Payment

We support multiple secure payment methods including PayPal, Visa, MasterCard, and American Express. All transactions are protected with advanced encryption to ensure secure and reliable payments.

Authenticity Guarantee

All components supplied by Aichiplink are sourced from trusted global suppliers and verified through strict in-house inspection and quality control procedures.

Quality Assurance

Certified in-house inspection and testing facilities ensure all components meet internationally recognized quality standards.

User Guide

Aichiplink operates certified in-house inspection and testing facilities to ensure all electronic components meet internationally recognized quality and compliance standards. Our quality management system is verified through ISO 9001 certification and industry-standard inspection procedures.

PURCHASE

Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.

MEANS OF PAYMENT

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.

RFQ (REQUEST FOR QUOTATIONS)

Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.

IMPORTANT NOTICE

Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.

Step1：Prepare product

Step2：Desiccant Protection

Step3：Vacuum Packaging

Step4：Individual Package

Step5：Anti-collision Filling

Step6：Packaging Box

SHIPPING COST

1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.

SHIPPING METHOD

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

DELIVERY TIME

1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.

TRS3243EIDBRG4 Information

Texas Instruments TRS3243EIDBRG4 technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments TRS3243EIDBRG4.

Type
Parameter

Drivers per package
3

Receivers per package
5

Logic voltage (min) (V)
3.3

Data rate (max) (Mbps)
0.5

Main supply voltage (nom) (V)
3.3, 5

Features
Auto-Powerdown

ESD HBM (kV)
15

Rating
Catalog

Operating temperature range (°C)
-40 to 85

Vout (typ) (V)
5.4

Type
Parameter

Package
SOIC (DW)

Pins
28

Size
184.37 mm² 17.9 x 10.3

Package
SSOP (DB)

Pins
28

Size
79.56 mm² 10.2 x 7.8

Package
TSSOP (PW)

Pins
28

Size
62.08 mm² 9.7 x 6.4

Package
VQFN (RHB)

Download datasheets and manufacturer documentation for Texas Instruments TRS3243EIDBRG4.

The TRS3243E device consists of three line drivers, five line receivers, and a dual charge-pump circuit with ±15-kV ESD (HBM and IEC61000-4-2, Air-Gap Discharge) and ±8-kV ESD (IEC61000-4-2, Contact Discharge) protection on serial-port connection pins. The device meets the requirements of TIA/EIA-232-F and provides the electrical interface between an asynchronous communication controller and the serial-port connector. This combination of drivers and receivers matches that needed for the typical serial port used in an IBM PC/AT, or compatible. The charge pump and four small external capacitors allow operation from a single 3-V to 5.5-V supply. In addition, the device includes an always-active noninverting output (ROUT2B), which allows applications using the ring indicator to transmit data while the device is powered down. The device operates at data signaling rates up to 250 kbit/s and a maximum of 30-V/µs driver output slew rate.

Single-chip and single-supply interface for IBM™ PC/AT™ serial port
ESD Protection for RS-232 bus pins
- ±15-kV Human-body model (HBM)
- ±8-kV IEC61000-4-2, Contact discharge
- ±15-kV IEC61000-4-2, Air-gap discharge
Meets or exceeds requirements of TIA/EIA-232-F and ITU v.28 standards
Operates with 3-V to 5.5-V V_CC supply
Always-active noninverting receiver output (ROUT2B)
Designed to transmit at a data rate up to 500 kbit/s
Low standby current: 1 µA typical
External capacitors: 4 × 0.1 µF
Accepts 5-V logic input with 3.3-V supply
Designed to be interchangeable with industry standard ’3243E devices
Serial-mouse driveability
Auto-powerdown feature to disable driver outputs when no valid RS-232 signal is sensed
Package options include plastic small-outline (DW), shrink small-outline (DB), and thin shrink small-outline (PW)
