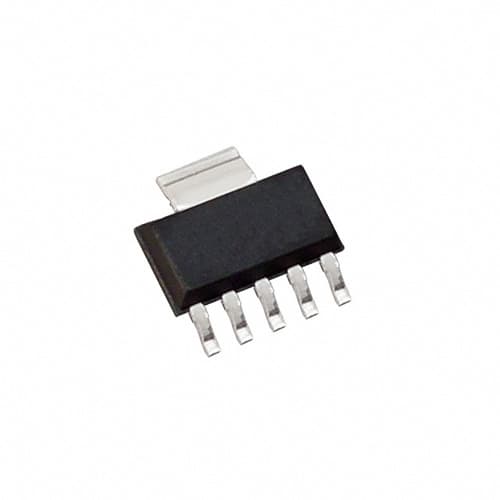

TI TPS79425DCQG4
TI TPS79425DCQG4

TI TPS79425DCQG4

Manufacturer No:

TPS79425DCQG4

Manufacturer:

TI

Package:

SOT-223

Description:

Fixed PMIC 6 SOT-223

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TPS79425DCQG4 information

TI TPS79425DCQG4 technical specifications, attributes, parameters and parts with similar specifications to TI TPS79425DCQG4.

  • Type
  • Parameter
  • Package / Case
  • SOT-223
  • Surface Mount
  • YES
  • Number of Pins
  • 6
  • JESD-609 Code
  • e4
  • Moisture Sensitivity Level (MSL)
  • 2 (1 Year)
  • Number of Terminations
  • 6
  • ECCN Code
  • EAR99
  • Terminal Finish
  • Nickel/Palladium/Gold (Ni/Pd/Au)
  • Max Operating Temperature
  • 85°C
  • Min Operating Temperature
  • -40°C
  • Subcategory
  • Other Regulators
  • Packing Method
  • TUBE
  • Technology
  • BICMOS
  • Terminal Position
  • DUAL
  • Terminal Form
  • GULL WING
  • Peak Reflow Temperature (Cel)
  • 260
  • Number of Functions
  • 1
  • Pin Count
  • 6
  • Number of Outputs
  • 1
  • Output Type
  • Fixed
  • Max Output Current
  • 250mA
  • Polarity
  • Positive
  • Current - Output
  • 250mA
  • Quiescent Current
  • 260?A
  • Max Output Voltage
  • 2.5V
  • Voltage - Output
  • 2.5V
  • Output Voltage 1
  • 2.5V
  • Min Input Voltage
  • 2.7V
  • Current - Input Bias
  • 170?A
  • Max Input Voltage
  • 5.5V
  • Dropout Voltage
  • 145mV
  • Dropout Voltage1-Nom
  • 0.1V
  • Min Output Voltage
  • 2.5V
  • Voltage Tolerance-Max
  • 3%
  • Width
  • 3.5mm
  • Radiation Hardening
  • No
  • RoHS Status
  • RoHS Compliant
  • Lead Free
  • Lead Free

Download datasheets and manufacturer documentation for TI TPS79425DCQG4.

TPS79425DCQG4                              DESCRIPTION

The TPS794xx family of low-dropout(LDO)linear voltage regulators features high power-supply  rejection ratio(PSRR)?ultra low-noise,fast start-up and excellent line and load transient responses in small outline MSOP-8 Power PADM and SOT223-6 packages. Each device in the family is stable with a small 2.2-uF ceramic capacitor on the output. The family uses an advanced proprietary BiCMOs fabrication process to yield extremely low dropout voltages (for example 155 mV at 250 mA).Each device achieves fast start-up times(approximately50us with a0.001-uF bypass capacitor while consuming low quiescent current(170 wAtypical) Moreover, when the device is placed in standby mode, the supply current is reduced to less than1 uAThe TPS79428exhibits approximately32 uVRMs of output voltage noise at 2.8 V output with a 0.1-uF bypass capacitor.Applications with analog components that are noise-sensitive such as portable RF electronics,benefit from the high PSRR and low noise features as well as the fast response time.



TPS79425DCQG4                              FEATURES

·250-mA Low-Dropout Regulator With Enable Available in Fixed and Adjustable(1.2V to

5.5VVersions

High PSRR(60 dB at 10 kHz)

Ultralow Noise(32uVrmsTPS79428 Fast Start-Up Time(50?s)

Stable With a 2.2-uF Ceramic Capacitor Excellent Load/Line Transient Response.Very Low Dropout Voltage(155mV at Full

Load)

·Available in MSOP-8 and SOT223-6 Packages


TPS79425DCQG4                              APPLICATIONS

·RF:VcOs Receivers.ADCs

·Audio

Bluetooth Wireless LAN

Cellular and Cordless Telephones Handheld Organizers PDAs
