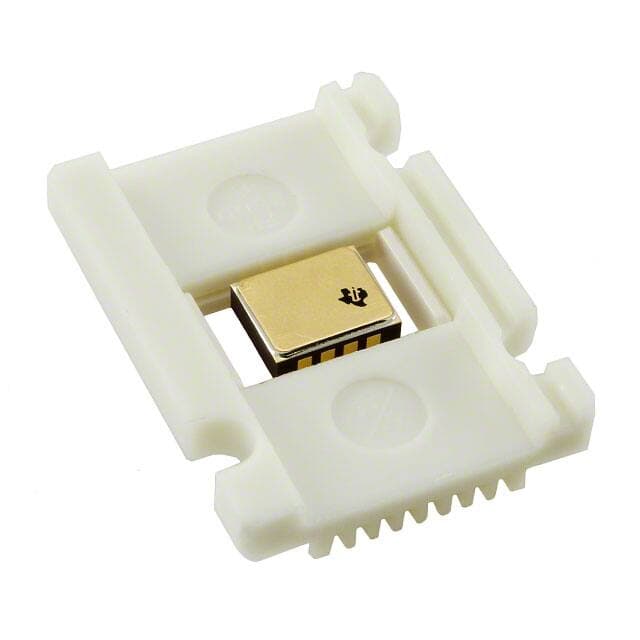

TI TPS76901SHKJ

Manufacturer No:

TPS76901SHKJ

Manufacturer:

Package:

8-CFlatpack

Description:

Enable Adjustable TPS76901 PMIC 8 8-CFlatpack

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TPS76901SHKJ information

TI TPS76901SHKJ technical specifications, attributes, parameters and parts with similar specifications to TI TPS76901SHKJ.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 3 days ago)

Mounting Type
Surface Mount

Package / Case
8-CFlatpack

Surface Mount
YES

Number of Pins
8

Operating Temperature
-55°C~210°C

Packaging
Tube

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
8

ECCN Code
EAR99

Subcategory
Other Regulators

Technology
PMOS

Terminal Position
DUAL

Number of Functions
1

Base Part Number
TPS76901

Pin Count
8

Number of Outputs
1

Voltage - Input (Max)
10V

Output Voltage
4.5V

Output Type
Adjustable

Max Output Current
100mA

Output Configuration
Positive

Quiescent Current
300μA

Accuracy
3 %

Max Output Voltage
4.5V

Number of Regulators
1

Min Input Voltage
5V

Protection Features
Over Current, Over Temperature, Reverse Polarity

Current - Quiescent (Iq)
28μA

PSRR
60dB (1kHz)

Reference Voltage
1.127V

Dropout Voltage
71mV

Dropout Voltage1-Nom
0.071V

Min Output Voltage
1.2V

Voltage - Output (Max)
4.5V

Input Bias Current
17μA

Output Voltage Accuracy
3 %

Height
1.65mm

Length
6.9mm

Width
5.65mm

Thickness
1.65mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for TI TPS76901SHKJ.

Datasheets:

texasinstruments-tps76901shkj-datasheets-3026.pdf

TPS76901SHKJ Overview

An Tube case is included with the delivery. There is a 8-CFlatpack case with the integrated voltage regulator. There are 8 terminations on the battery regulator IC chip and each of them has its own function. In terms of output type, Adjustable is what the Regulator IC produces. The electronic component implements 1 Voltage regulator ICs. IC Regulator is possible to alter the range of the operating temperature of Surface Mount in the device. In order for this IC voltage regulator to operate, the temperature has to be kept at -55°C~210°C degrees. In this case, the output function that is configured for this regulator IC is Positive. It has a total of 8 pins on IC voltage regulator. In order to ensure prompt, adequate, and prompt performance, this regulator has 1 outputs in total. In terms of its dropout voltage, it is 10 volts. There are 8 pins on the chip. It is TPS76901 for this regulator, just for your information. In this instance, we are dealing with a typical Other Regulators-shaped component. In order to meet the operating requirements of the regulator, its maximal output current reaches 100mA. It operates in the 300μA Quiescent Current state.

TPS76901SHKJ Features

71mV dropout voltage
Other Regulators subtageroy

TPS76901SHKJ Applications

There are a lot of Texas Instruments
TPS76901SHKJ Linear Voltage Regulators applications.

Camera
Video equipment
CPU power supply
Switching regulator
Multiple-power supply system
Digital audio player
Digital TV
Smartcard
Industrial equipment
DVD and CD-ROM drive
