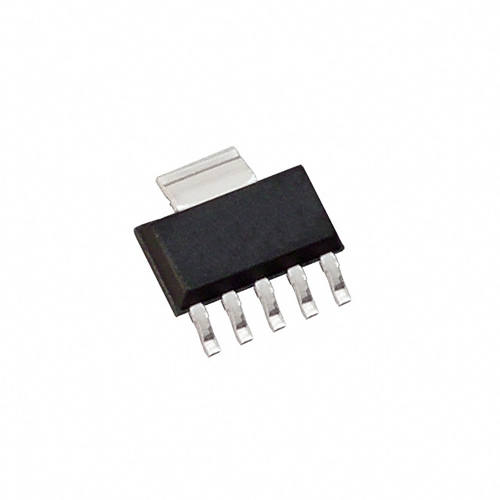

TI TPS73630DCQRG4

Manufacturer No:

TPS73630DCQRG4

Manufacturer:

Package:

SOT-223-6

Description:

Fixed PMIC 6 SOT-223-6

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TPS73630DCQRG4 information

TI TPS73630DCQRG4 technical specifications, attributes, parameters and parts with similar specifications to TI TPS73630DCQRG4.

Type
Parameter

Package / Case
SOT-223-6

Surface Mount
YES

Number of Pins
6

JESD-609 Code
e4

Pbfree Code
yes

Moisture Sensitivity Level (MSL)
2 (1 Year)

Number of Terminations
6

ECCN Code
EAR99

Terminal Finish
Nickel/Palladium/Gold (Ni/Pd/Au)

Max Operating Temperature
125°C

Min Operating Temperature
-40°C

Subcategory
Other Regulators

Packing Method
TAPE AND REEL

Technology
BICMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Pin Count
6

Number of Outputs
1

Output Type
Fixed

Max Output Current
400mA

Polarity
Positive

Power Dissipation-Max
2.22W

Quiescent Current
300μA

Accuracy
1 %

Max Output Voltage
3V

Voltage - Output
3V

Output Voltage 1
3V

Min Input Voltage
1.7V

Current - Input Bias
300μA

Max Input Voltage
5.5V

Dropout Voltage
75mV

Dropout Voltage1-Nom
0.075V

Min Output Voltage
3V

Voltage Tolerance-Max
1%

Min Current Limit
400mA

Width
3.5mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for TI TPS73630DCQRG4.

TPS73630DCQRG4 DESCRIPTION

The TPS736xx family of low-dropout(LDO)linear voltage regulators uses a new topology:anNMOS pass element in a voltage follower configuration.This topology is stable using output capacitors with low ESR.and even allows operation without a capacitor It also provides high reverse blockage(low reverse current) and ground pin current that is nearly constant over all values of outout current.

TPS73630DCQRG4 FEATURES

Stable with No Output Capacitor or Any Value or Type of Capacitor

Input Voltage Range of 1.7Vto5.5V Ultra-Low Dropout Voltage: 75mV typ

Excellent Load Transient Response-with or

without Optional Output Capacitor

New NMOS Topology Delivers Low Reverse Leakage Current

·Low Noise: 30uVMs typ(10Hz to 100kHz)

0.5% Initial Accuracy

1%Overall Accuracy Over LineLoadand

Temperature

·Less Than 1uA max loin Shutdown Mode. Thermal Shutdown and Specified Min/Max

Current Limit Protection

Available in Multiple Output Voltage Versions

- Fixed Outputs of1.20Vto5.0V

- Adjustable Output from 1.20Vto 5.5V - Custom Outputs Available

TPS73630DCQRG4 APPLICATIONS

Portable/Battery-Powered Equipment

·Post-Regulation for Switching Supplies

Noise-Sensitive Circuitry such as VCOs

Point of Load Regulation for DSPs FPGAS ASICs,and Microprocessors
