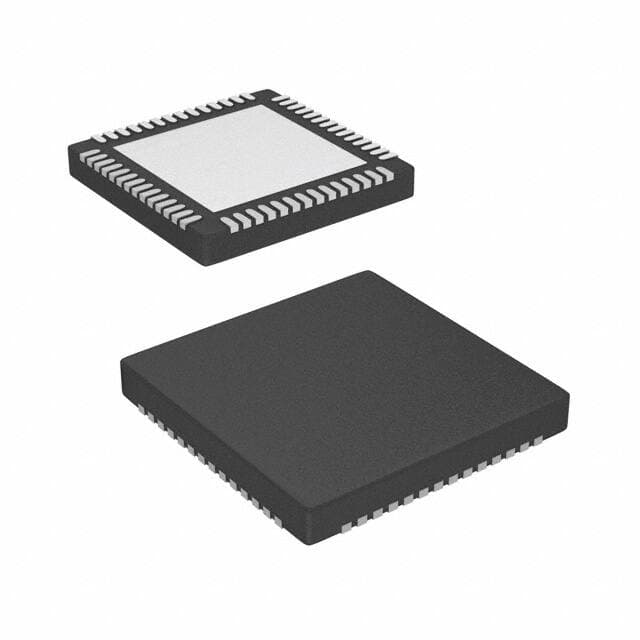

TI TPS65820RSHTG4

Manufacturer No:

TPS65820RSHTG4

Manufacturer:

Package:

56-VFQFN Exposed Pad

Description:

-40°C~85°C TA 8 Channel QUAD Battery Management ICs TPS65820 56 Pins 1 Cell Lithium Ion/Polymer 56-VFQFN Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TPS65820RSHTG4 information

TI TPS65820RSHTG4 technical specifications, attributes, parameters and parts with similar specifications to TI TPS65820RSHTG4.

Type
Parameter

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
56-VFQFN Exposed Pad

Number of Pins
56

Operating Temperature
-40°C~85°C TA

Packaging
Tape & Reel (TR)

JESD-609 Code
e4

Pbfree Code
yes

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
56

ECCN Code
EAR99

Terminal Finish
Nickel/Palladium/Gold (Ni/Pd/Au)

Subcategory
Power Management Circuits

Terminal Position
QUAD

Peak Reflow Temperature (Cel)
260

Terminal Pitch
0.4mm

Base Part Number
TPS65820

Function
Multi-Function Controller

Supply Voltage-Min (Vsup)
4.35V

Number of Channels
8

Interface
I2C, USB

Analog IC - Other Type
POWER SUPPLY SUPPORT CIRCUIT

Adjustable Threshold
YES

Battery Chemistry
Lithium Ion/Polymer

Number of Cells
1

Height
900?m

Length
7mm

Width
7mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for TI TPS65820RSHTG4.

TPS65820RSHTG4 Overview

The 56-VFQFN Exposed Pad package is suitable for battery instrument. A system battery like this uses an analog IC named POWER SUPPLY SUPPORT CIRCUIT. We have 8 channels available. 56 pins are attached to it. Tape & Reel (TR) is the case number of the package. It is recommended that you mount this electrical component using Surface Mount. The family name of this electrical component is Power Management Circuits. In this case, this electrical part is mounted in the way of Surface Mount. As far as the Multi-Function Controller functions are concerned, it can be delivered. Temperatures in the -40°C~85°C TA range are ideal for this electronic part. Chemistries for this electrical part are Lithium Ion/Polymer. There is a use of the TPS65820 family. Power supplies require voltages higher than 4.35V (Vsup).

TPS65820RSHTG4 Features

Available in 56-VFQFN Exposed Pad Package
with 56 Pins
Mounting Type: Surface Mount
Battery Chemistry : Lithium Ion/Polymer

TPS65820RSHTG4 Applications

There are a lot of Texas Instruments
TPS65820RSHTG4 Battery Management ICs applications.

A/C power substations
Internet infrastructure equipment
Aviation ground support systems
Tower communications
Weather stations
Distributed energy resources
Solar and wind-generating plants
Electric street sweepers
Shuttle robots
Robots
