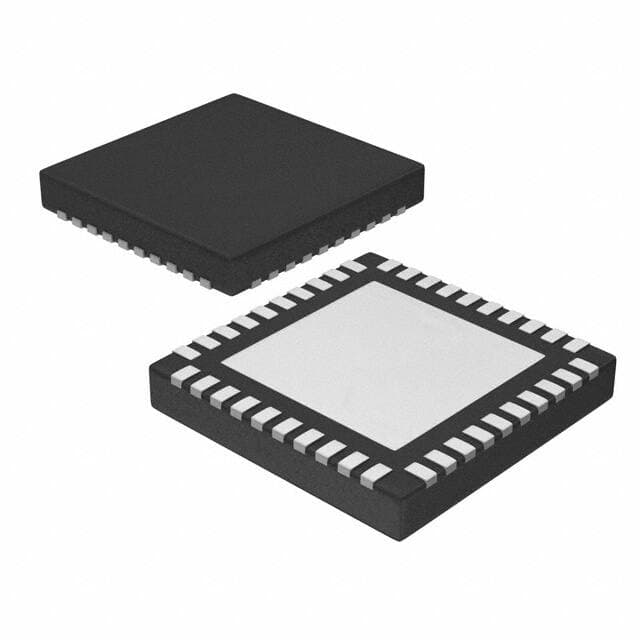

TI TPS65167RHAT

Manufacturer No:

TPS65167RHAT

Manufacturer:

Package:

40-VFQFN Exposed Pad

Description:

40 Terminations 6V~14V 40 Pin TPS65167 Specialized Power Management ICs 1 Functions

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TPS65167RHAT information

TI TPS65167RHAT technical specifications, attributes, parameters and parts with similar specifications to TI TPS65167RHAT.

Type
Parameter

Mounting Type
Surface Mount

Package / Case
40-VFQFN Exposed Pad

Surface Mount
YES

Number of Pins
40

Weight
103.986051mg

Operating Temperature
-40°C~85°C

Packaging
Tape & Reel (TR)

JESD-609 Code
e4

Pbfree Code
yes

Part Status
Discontinued

Moisture Sensitivity Level (MSL)
2 (1 Year)

Number of Terminations
40

ECCN Code
EAR99

Terminal Finish
Nickel/Palladium/Gold (Ni/Pd/Au)

Applications
LCD TV/Monitor

HTS Code
8542.39.00.01

Subcategory
Power Management Circuits

Voltage - Supply
6V~14V

Terminal Position
QUAD

Terminal Form
NO LEAD

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
12V

Terminal Pitch
0.5mm

Base Part Number
TPS65167

Pin Count
40

Qualification Status
Not Qualified

Output Voltage
19V

Operating Supply Voltage
14V

Input Voltage-Nom
12V

Power Supplies
12V

Analog IC - Other Type
SWITCHING REGULATOR

Quiescent Current
1.5mA

Min Input Voltage
6V

Control Mode
VOLTAGE-MODE

Output Current-Max
4.9A

Max Input Voltage
14V

Control Technique
PULSE WIDTH MODULATION

Nominal Input Voltage
14.4V

Switcher Configuration
BOOST

Switching Frequency
750kHz

Height
900?m

Length
6mm

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for TI TPS65167RHAT.

Datasheets:

texasinstruments-tps65167rhat-datasheets-4720.pdf

texasinstruments-tps65167rhat-datasheets-4721.pdf

TPS65167RHAT Overview

Tape & Reel (TR) is acceptable for shipping the power management.A convenient transport package is provided in 40-VFQFN Exposed Pad .Surface Mount is a universal mounting method for easy adaptation.The power management is designed for use with applications at LCD TV/Monitor .To ensure proper functioning, the operating temperature of the power management ic should be set to -40°C~85°C .The power management operates at 6V~14V volts.Getting more power ic's pin-to-pin solutions can be found by searching TPS65167 .It is possible to find 40 terminals on the power ic.The instruments designs has received high praise because it is an analog SWITCHING REGULATOR IC.There are 40 pins on the power managment ic.In addition to being supplied by the 12V voltage, the power manager is capable of performing many demanding tasks.Power ic pinouts begin with 40 pins.This is ics supply of the series Power Management Circuits .The power management chip can be operated with 12V power supplies.The output voltage of the ic power supply is 19V .
