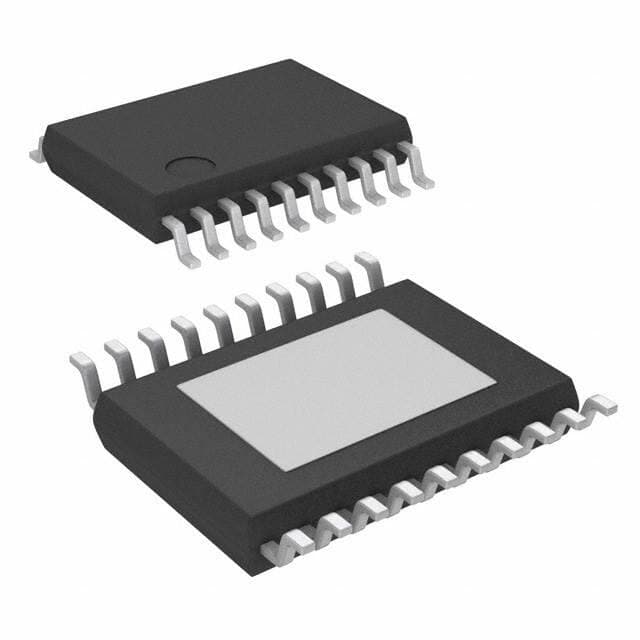

TI TPS60123PWP

Manufacturer No:

TPS60123PWP

Manufacturer:

Package:

20-PowerTSSOP (0.173, 4.40mm Width)

Description:

20 Terminals 20-Pin TPS60123 DC DC Voltage Regulator SWITCHED CAPACITOR REGULATOR 1 Outputs 320kHz Tube 20-PowerTSSOP (0.173, 4.40mm Width)

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TPS60123PWP information

TI TPS60123PWP technical specifications, attributes, parameters and parts with similar specifications to TI TPS60123PWP.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 2 days ago)

Factory Lead Time
6 Weeks

Mounting Type
Surface Mount

Package / Case
20-PowerTSSOP (0.173, 4.40mm Width)

Surface Mount
YES

Number of Pins
20

Weight
81.788374mg

Packaging
Tube

JESD-609 Code
e4

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
2 (1 Year)

Number of Terminations
20

ECCN Code
EAR99

Terminal Finish
Nickel/Palladium/Gold (Ni/Pd/Au)

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Subcategory
Other Analog ICs

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Terminal Pitch
0.65mm

Base Part Number
TPS60123

Function
Step-Up

Output Voltage
3.3V

Output Type
Fixed

Max Output Current
100mA

Input Voltage-Nom
2V

Temperature Grade
INDUSTRIAL

Max Supply Voltage
3.6V

Min Supply Voltage
1.8V

Analog IC - Other Type
SWITCHED CAPACITOR REGULATOR

Output Configuration
Positive

Quiescent Current
55?A

Max Output Voltage
3.47V

Topology
Charge Pump

Control Mode
CURRENT-MODE

Frequency - Switching
320kHz

Synchronous Rectifier
No

Nominal Input Voltage
3.6V

Min Output Voltage
3.17V

Switcher Configuration
DOUBLER INVERTER

Height
1.2mm

Length
6.5mm

Width
4.4mm

Thickness
1mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for TI TPS60123PWP.

TPS60123PWP Overview

For optimal performance, this voltage regulator uses the Tube package. In this voltage regulator, there are 20 terminations. As a matter of fact, the type of analog IC that this voltage regulator 12v is equipped with is called SWITCHED CAPACITOR REGULATOR. Space savings are achieved by placing this voltage regulator in the 20-PowerTSSOP (0.173, 4.40mm Width) package. There are 1 outputs on DC DC switching regulator. Adjusting voltage regulator's output pins generate Fixed output. There is a switching regulator that is compatible with the Surface Mount mounting. There is a switching frequency of 320kHz for this voltage regulator 12v. As a result of the 260 peak reflow temperature, this regulator is essentially indestructible. As a result of DC DC switching regulator's design, it is designed to provide an input voltage of 2V for the purposes of operation. Listed under the subcategory of Other Analog ICs is this voltage regulator 12v. As part of the TPS60123 series of regulators, the voltage regulators can be found. There is a possibility that DC DC switching regulator can give voltage at 3.3V volts. The switching regulator operation is carried out by 20 pins. In order for this switching regulator to work properly, the output voltage should be at least 3.17VV. Switching regulator has a maximum output current of 100mA A, which is sufficient to meet the requirements of operation. There is a maximum output voltage of 3.47V from this voltage regulator 12v. There is no external influence on harley voltage regulator as it consumes 55?A A of quiescent current. The 1.8V V dc to dc voltage regulator's minimum supply voltage ensures reliable performance. A high maximum operating temperature 85°C ensures stable operation of switching regulator. In order to ensure DC DC switching regulator's reliability, it operates at the minimum operating temperature of -40°C. A maximum supply voltage of 3.6V is required for adjusting voltage regulator to operate.

TPS60123PWP Features

1 outputs
Peak reflow temperature (Cel) of 260
20 pins

TPS60123PWP Applications

There are a lot of Texas Instruments
TPS60123PWP Voltage Regulators applications.

Automation technology
CMM
Various precision measuring instruments
Various precision measuring detectors
Flaw detection equipment
Balance equipment
Industrial robots
Industrial controllers
Die casting equipment
Injection molding machinery
