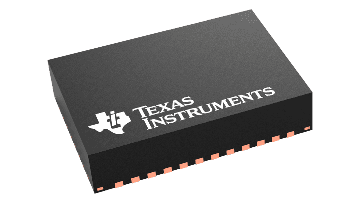

Texas Instruments TPS543C20RVFRG4

Manufacturer No:

TPS543C20RVFRG4

Manufacturer:

Texas Instruments

Package:

Description:

Switching Voltage Regulators 4-V to 14-V, 40-A synchronous SWIFT buck converter with adaptive internal compensation

Quantity:

In Stock :4668

Looking for price or availability? Send us an RFQ and our sales team will respond quickly.

Shipping & Availability

Fast worldwide shipping via DHL, FedEx, UPS, and EMS.

Shipped from：HK Warehouse

Expected Shipping：Wed, May 20 - Thu, May 21, 2026

Lead Time：Inquire about availability

Date Code：Within 2 Years

Payment

We support multiple secure payment methods including PayPal, Visa, MasterCard, and American Express. All transactions are protected with advanced encryption to ensure secure and reliable payments.

Authenticity Guarantee

All components supplied by Aichiplink are sourced from trusted global suppliers and verified through strict in-house inspection and quality control procedures.

Quality Assurance

Certified in-house inspection and testing facilities ensure all components meet internationally recognized quality standards.

User Guide

Aichiplink operates certified in-house inspection and testing facilities to ensure all electronic components meet internationally recognized quality and compliance standards. Our quality management system is verified through ISO 9001 certification and industry-standard inspection procedures.

PURCHASE

Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.

MEANS OF PAYMENT

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.

RFQ (REQUEST FOR QUOTATIONS)

Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.

IMPORTANT NOTICE

Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.

Step1：Prepare product

Step2：Desiccant Protection

Step3：Vacuum Packaging

Step4：Individual Package

Step5：Anti-collision Filling

Step6：Packaging Box

SHIPPING COST

1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.

SHIPPING METHOD

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

DELIVERY TIME

1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.

TPS543C20RVFRG4 Information

Texas Instruments TPS543C20RVFRG4 technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments TPS543C20RVFRG4.

Type
Parameter

Rating
Catalog

Topology
Buck

Iout (max) (A)
40

Vin (max) (V)
14

Vin (min) (V)
4

Vout (max) (V)
5.5

Vout (min) (V)
0.6

Features
Adjustable current limit, Differential Remote Sense, Enable, Forced PWM, Frequency synchronization, Overcurrent protection, Phase Interleaving, Power good, Prebias startup, Soft-start adjustable, Synchronous Rectification, UVLO Fixed

Control mode
ACM/AECM

Switching frequency (min) (kHz)
300

Type
Parameter

Switching frequency (max) (kHz)
2000

Operating temperature range (°C)
-40 to 125

Iq (typ) (µA)
4300

Duty cycle (max) (%)
70

Type
Converter

Package
LQFN-CLIP (RVF)

Pins
40

Size
35 mm² 7 x 5

REACH Status
Affected

RoHS Status

Download datasheets and manufacturer documentation for Texas Instruments TPS543C20RVFRG4.

The TPS543C20 employs an internally compensated emulated peak-current-mode control, with a clock synchronizable, fixed-frequency modulator for EMI-sensitive POL. The internal integrator and directly amplifying ramp tracking loop eliminate the need for external compensation over a wide range of frequencies thereby making the system design flexible, dense, and simple. Optional API and body braking help improve transient performance by significantly reducing undershoot and overshoot, respectively. Integrated NexFET™ MOSFETs with low-loss switching facilitate high efficiency and deliver up to 40 A in a 5-mm × 7-mm PowerStack™ package with a layout friendly thermal pad. Two TPS543C20 devices can be stacked together to provide up to 80-A point-of-load.

Internally-Compensated Advanced Current Mode Control 40-A POL
Input Voltage Range: 4 V to 14 V
Output Voltage Range: 0.6 V to 5.5 V
Integrated 3/0.9-mΩ Stacked NexFET™ Power Stage With Lossless Low-Side Current Sensing
Fixed Frequency - Synchronization to an External Clock and/or Sync Out
Pin Strapping Programmable Switching Frequency
- 300 kHz to 2 MHz for Standalone
- 300 kHz to 1 MHz for Stackable
Stack 2× for up to 80 A With Current Share, Voltage Share, and CLK Sync
Pin Strapping Programmable Reference from 0.6 V to 1.1 V With 0.5% Accuracy
Differential Remote Sensing
Safe Start-Up into Prebiased Output
High-Accuracy Hiccup Current Limit
Asynchronous Pulse Injection (API) and Body Braking
40-pin, 5-mm × 7-mm LQFN Package with 0.5-mm Pitch and Single Thermal Pad
Create a Custom Design Using the TPS543C20 With the WEBENCH^® Power Designer
