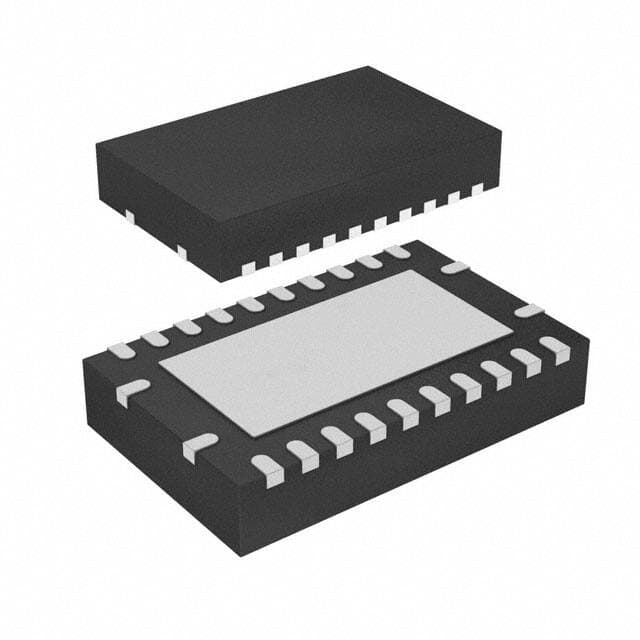

TI TPS54122RHLT

Manufacturer No:

TPS54122RHLT

Manufacturer:

Package:

24-VFQFN Exposed Pad

Description:

Adjustable 0.5mm PMIC TPS54122 24 Pin 24-VFQFN Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TPS54122RHLT information

TI TPS54122RHLT technical specifications, attributes, parameters and parts with similar specifications to TI TPS54122RHLT.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 2 days ago)

Factory Lead Time
6 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
24-VFQFN Exposed Pad

Number of Pins
24

Weight
54.601182mg

Operating Temperature
-40°C~125°C

Packaging
Tape & Reel (TR)

JESD-609 Code
e4

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
2 (1 Year)

Number of Terminations
24

ECCN Code
EAR99

Terminal Finish
Nickel/Palladium/Gold (Ni/Pd/Au)

Subcategory
Switching Regulator or Controllers

Voltage - Supply
2.95V~6V

Terminal Position
QUAD

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Terminal Pitch
0.5mm

Base Part Number
TPS54122

Number of Outputs
2

Output Type
Adjustable

Max Output Current
3A

Voltage - Output 1
3.6V

Operating Supply Voltage
5.5V

Input Voltage-Nom
5V

Analog IC - Other Type
SWITCHING REGULATOR

Operating Supply Current
360?A

Output Current
3A

Quiescent Current
360?A

Voltage - Output 2
3.6V

Topology
Step-Down (Buck) Synchronous (1), Linear (LDO) (1)

Min Input Voltage
2.95V

Control Mode
CURRENT-MODE

Frequency - Switching
300kHz~2MHz

Max Input Voltage
5.5V

Control Technique
PULSE WIDTH MODULATION

Current - Output 1
3A

Current - Output 2
3A

w/Sequencer
No

Voltage/Current - Output 1
0.8V~3.6V 3A

Voltage/Current - Output 2
0.8V~3.6V 3A

Height
1mm

Length
5.5mm

Download datasheets and manufacturer documentation for TI TPS54122RHLT.

PCN Assembly/Origin:

texasinstruments-cc113lrgpr-pcnassemblyorigin-0037.pdf

TPS54122RHLT Overview

As a result, the harley voltage regulator is packaged in a 24-VFQFN Exposed Pad shape for easy voltage regulators' transportation.The package Tape & Reel (TR) is ready to be shipped out.In total, voltage regulator supports 2 outputs on the same platform.To avoid malfunctioning of the voltage regulator, the operating temperature should be set to -40°C~125°C.To find more pin-to-pin solutions that meet your requirements, search TPS54122.The switching regulator has 24 terminals that can be found on the side of the switching regulator.Relow soldering is only allowed to proceed after the temperature has reached peak 260 during the process.To operate this voltage regulator, you will need a voltage of 360?A.Organizing the pins in this voltage regulator in a 24 pattern is the key to its functionality.This regulator voltage has an output voltage of 3.6V, making it suitable for a wide range of applications.The input voltage required for this regulator is voltage ? 2.95V.This voltage regulator can use a maximum voltage of 5.5V.There is a Adjustable output on this regulator controller.Currently, 3A is the DC DC Switching Regulator's output.There is a quiescent current of 360?A displayed on the regulator controller.The current 3A generated by this voltage regulator DC to DC is designed to be as high as possible.In the industry, there are other Switching Regulator or Controllerss, including the voltage regulator DC to DC, that play an important role.Mounting it on a PCB or other board is easy with the Surface Mount.

TPS54122RHLT Features

2 outputs
Operating Temperature: -40°C~125°C
Peak Reflow Temperature: 260
Quiescent Current: 360?A

TPS54122RHLT Applications

There are a lot of Texas Instruments
TPS54122RHLT Linear Regulator Controllers applications.

Desknotes and Notebooks
Graphic Cards
Ultra-Low-Dropout
Voltage Regulators
Low-Voltage DSP Power Supplies
Microcontroller Power Supplies
Motherboards
Battery Operating Equipment
Adjustable Supplies
Switching Power Supplies
