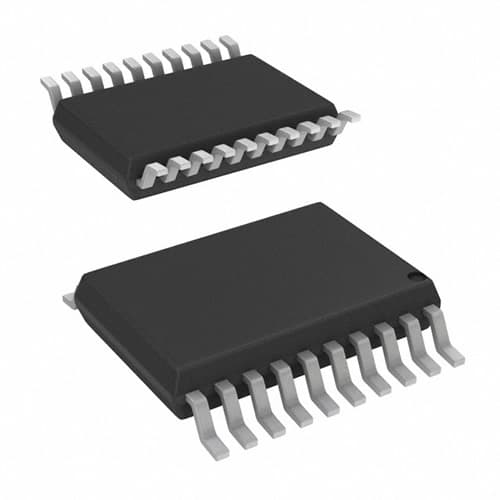

TI TPS5103IDBRG4

Manufacturer No:

TPS5103IDBRG4

Manufacturer:

Package:

SSOP

Description:

20 Terminals 20-Pin DC to DC converter IC SWITCHING CONTROLLER 1 Outputs

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TPS5103IDBRG4 information

TI TPS5103IDBRG4 technical specifications, attributes, parameters and parts with similar specifications to TI TPS5103IDBRG4.

Type
Parameter

Mount
Surface Mount

Package / Case
SSOP

Number of Pins
20

Weight
156.687814mg

Packaging
Tape & Reel (TR)

JESD-609 Code
e4

Pbfree Code
no

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
20

ECCN Code
EAR99

Terminal Finish
Nickel/Palladium/Gold (Ni/Pd/Au)

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Additional Feature
CAN ALSO OPERATE IN HYSTERETIC MODE

Subcategory
Switching Regulator or Controllers

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Terminal Pitch
0.65mm

Pin Count
20

Number of Outputs
1

Operating Supply Voltage
25V

Input Voltage-Nom
7V

Analog IC - Other Type
SWITCHING CONTROLLER

Current - Output
3A

Frequency (Max)
500kHz

Voltage - Output
1.2V

Input Voltage (Min)
4.5V

Control Mode
VOLTAGE-MODE

Control Technique
PULSE WIDTH MODULATION

Switcher Configuration
PUSH-PULL

Duty Cycle (Max)
95 %

Length
7.2mm

Height Seated (Max)
2mm

Width
5.3mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for TI TPS5103IDBRG4.

TPS5103IDBRG4 Overview

Capsuled in the SSOP package, the switching controller can be used for a wide range of applications. There is enough capacity in the dc motor controller to generate the output for the 1 input. PMIC packaging is solid with a Tape & Reel (TR) enclosure. An analog IC with the SWITCHING CONTROLLER signal is connected to the switch converters. A switching converters's terminal (s) sits at the DUAL position. A variety of dc switching's functions can be performed on 20 terminations. The control methods that these dc dc converter ics use include PULSE WIDTH MODULATION. DC switcher's voltage input is 7V. Pins number 20 of switching converter in total. Specially, switching converter corresponds to type Switching Regulator or Controllers. An input voltage of 4.5V is the minimum required for the dc dc voltage regulator. The Surface Mount makes DC switcher suitable for most applications and prototypes. The value of DC to DC voltage regulator is set at CAN ALSO OPERATE IN HYSTERETIC MODE in order to fulfill the requirements more effectively. Users should apply 25V to operate the voltage regulator dc to dc safely and reliably. At least -40°C°C is recommended. At85°C, dc regulator should run. 1 functions are available in total for the switch converters. We design voltage regulators switchings with 20 pins. The controller can set a maximum frequency of 500kHz. With 3A inputs, switching controller is ideal. It outputs a value of 1.2V in normaloperating procedures.

TPS5103IDBRG4 Features

PULSE WIDTH MODULATION
CAN ALSO OPERATE IN HYSTERETIC MODE

TPS5103IDBRG4 Applications

There are a lot of Texas Instruments
TPS5103IDBRG4 DC to DC converter applications.

Various precision measuring instruments
Various precision measuring detectors
Flaw detection equipment
Balance equipment
Industrial robots
Industrial controllers
Die casting equipment
Injection molding machinery
Various CNC machine tools
Machining centers
