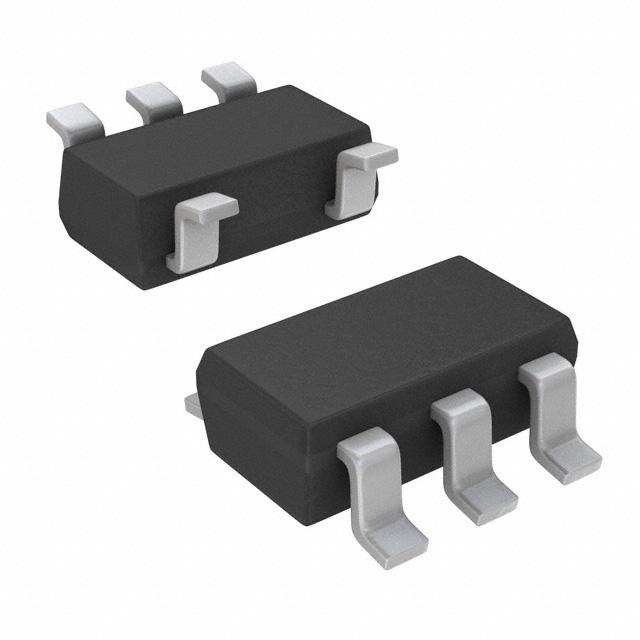

TI TPS3802K33DCKRG4

Manufacturer No:

TPS3802K33DCKRG4

Manufacturer:

Package:

Description:

3.3V 5 Terminals 5-Pin Voltage supervisor 1 Channels Min 1.6V Max 4V

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TPS3802K33DCKRG4 information

TI TPS3802K33DCKRG4 technical specifications, attributes, parameters and parts with similar specifications to TI TPS3802K33DCKRG4.

Type
Parameter

Package / Case
SC

Surface Mount
YES

Number of Pins
5

JESD-609 Code
e4

Pbfree Code
no

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
5

ECCN Code
EAR99

Terminal Finish
Nickel/Palladium/Gold (Ni/Pd/Au)

Max Operating Temperature
85°C

Min Operating Temperature
-40°C

Subcategory
Power Management Circuits

Technology
CMOS

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Supply Voltage
3.3V

Pin Count
5

Temperature Grade
INDUSTRIAL

Number of Channels
1

Max Supply Voltage
4V

Min Supply Voltage
1.6V

Analog IC - Other Type
POWER SUPPLY SUPPORT CIRCUIT

Max Supply Current
18μA

Adjustable Threshold
NO

Quiescent Current
9μA

Reset
Active Low

Voltage - Threshold
2.93V

Number of Voltages Monitored
1

Reset Timeout
240 ms

Min Reset Threshold Voltage
2.87V

Max Reset Threshold Voltage
2.99V

Threshold Voltage
+2.93V

Undervoltage Threshold
2.93V

Overvoltage Threshold
2.99V

Height
900μm

Length
2mm

Width
1.25mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for TI TPS3802K33DCKRG4.

TPS3802K33DCKRG4 Overview

It is mounted through 5 terminals on the power management. There are 1 functions included in this PMIC so that you can refer to them. It is possible to find on this power management a series of 1 channels. There are SC functions included in this PMIC so that you can refer to them. IC management is specified that the package peak reflow temperature should be 260. During operation, the power ic is supplied with a voltage of 3.3V. During operation, the power ic is supplied with a voltage of 1. As a subcategory, this PMIC chip can be categorized as Power Management Circuits. In total, IC powers are 5 pins on the board. 5 pins make up the power management. In order for this PMIC to work correctly, the minimum supply voltage (Vsup) should be greater than 1.6V. Voltage (Vsup) shouldn't exceed 4V volts in this PMIC. As far as the supply current of the power management is concerned, it is 9μA. It is also possible to use other types of IC, such as POWER SUPPLY SUPPORT CIRCUIT, in this supervisor. The maximum supply temperature that PMIC chip can work with is 18μA.

TPS3802K33DCKRG4 Features

Minimum supply voltage of 1.6V
9μA operating supply current

TPS3802K33DCKRG4 Applications

There are a lot of Texas Instruments
TPS3802K33DCKRG4 Voltage Supervisors applications.

Power distribution systems of CCU
emergency room
Medical-specific isolation transformer
Medical-specific insulation monitor
Transformer load monitoring equipment
External alarm
Display equipment
DC stabilized power supply module
Insulation fault location system
Magnetic resonance imaging
