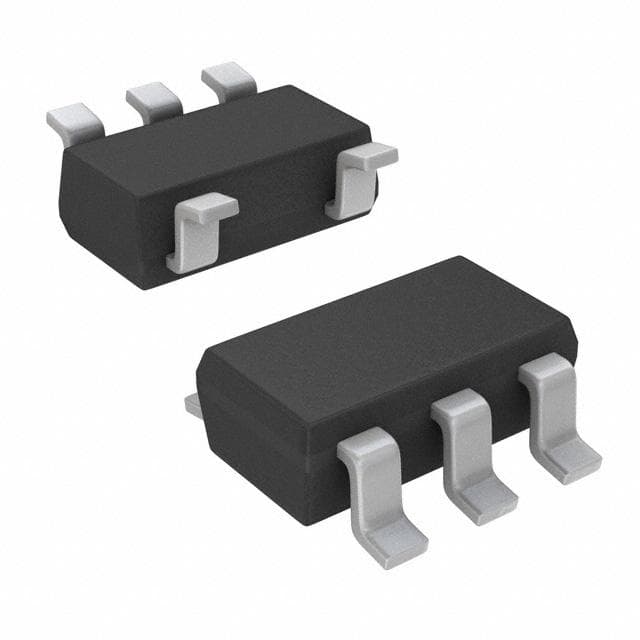

TI TPS3801E18DCKRG4

Manufacturer No:

TPS3801E18DCKRG4

Manufacturer:

TI

Package:

TSSOP, TSSOP5/6,.08

Description:

Description: Small Supply Voltage Supervisors with Manual Reset 5-SC70 -40 to 85

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TPS3801E18DCKRG4 information

TI TPS3801E18DCKRG4 technical specifications, attributes, parameters and parts with similar specifications to TI TPS3801E18DCKRG4.

Type
Parameter

Pbfree Code
No

RoHS Status
RoHS Compliant

Part Life Cycle Code
Obsolete

Ihs Manufacturer
TEXAS INSTRUMENTS INC

Part Package Code
SC-70

Package Description
TSSOP, TSSOP5/6,.08

Pin Count
5

Manufacturer Package Code
SOT323

Reach Compliance Code
compliant

ECCN Code
EAR99

HTS Code
8542.39.00.01

Samacsys Manufacturer
Texas Instruments

Additional Feature
BAT BUP SW:N;MNL RST:Y;OV DET:N;PW FL IP:N;PW FL IO:N;PW FL OP:N;PRG RST DLY:N;UV DET:N;WD:N;WWD:N

Adjustable Threshold
NO

Analog IC - Other Type
VOLTAGE SUPERVISOR/RESET IC

JESD-30 Code
R-PDSO-G5

JESD-609 Code
e4

Length
2 mm

Moisture Sensitivity Level
1

Number of Channels
1

Number of Functions
1

Number of Terminals
5

Operating Temperature-Max
85 °C

Operating Temperature-Min
-40 °C

Package Code
TSSOP

Package Equivalence Code
TSSOP5/6,.08

Package Shape
RECTANGULAR

Package Style
SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

Peak Reflow Temperature (Cel)
260

Qualification Status
Not Qualified

Seated Height-Max
1.1 mm

Supply Current-Max (Isup)
0.018 mA

Supply Voltage-Max (Vsup)
4 V

Supply Voltage-Min (Vsup)
1.6 V

Supply Voltage-Nom (Vsup)
3.3 V

Surface Mount
YES

Technology
CMOS

Temperature Grade
INDUSTRIAL

Terminal Finish
NICKEL PALLADIUM GOLD

Terminal Form
GULL WING

Terminal Pitch
0.65 mm

Terminal Position
DUAL

Threshold Voltage-Nom
+1.71V

Time@Peak Reflow Temperature-Max (s)
30

Width
1.25 mm

Download datasheets and manufacturer documentation for TI TPS3801E18DCKRG4.

Datasheets:

slvs219e.pdf

TPS3801E18DCKRG4 Overview

There are 5 terminals connected to this power management, which makes it easy to mount. For your reference, this IC power includes a list of 1 functions. This power managment ic consists of 1 channels, each of which can be used independently. For your reference, this PMIC includes a list of SC functions. Specifies a reflow peak temperature of 260 for the package during reflow. IC management conducts in a 3.3V-voltage supply. IC management conducts in a 1-voltage supply. Power Management Circuits is a subcategory of this PMIC chip. The total number of pins on this power management is 5. There are 5 pins on the supervisor. In order for this IC power to function, the supply voltage (Vsup) cannot be less than 1.6V. It is recommended that the maximum supply voltage (Vsup) in this IC power be no more than 4V volts. The supply current of the power management is 9?A. This supervisor includes other kinds of integrated circuits, such as POWER SUPPLY SUPPORT CIRCUIT as well as other kinds. At most, voltage supervisor can operate at a supply temperature of 18?A.
