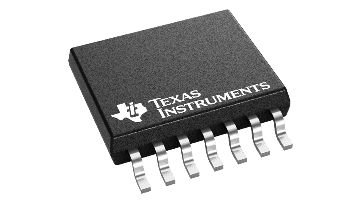

Texas Instruments TPS27S100APWPRG4

Manufacturer No:

TPS27S100APWPRG4

Manufacturer:

Texas Instruments

Package:

Description:

40-V, 80-mΩ, 4-A, 1-ch, Industrial high-side switch with adjustable current limit

Quantity:

In Stock :2883

Looking for price or availability? Send us an RFQ and our sales team will respond quickly.

Shipping & Availability

Fast worldwide shipping via DHL, FedEx, UPS, and EMS.

Shipped from：HK Warehouse

Expected Shipping：Thu, May 7 - Fri, May 8, 2026

Lead Time：Inquire about availability

Date Code：Within 2 Years

Payment

We support multiple secure payment methods including PayPal, Visa, MasterCard, and American Express. All transactions are protected with advanced encryption to ensure secure and reliable payments.

Authenticity Guarantee

All components supplied by Aichiplink are sourced from trusted global suppliers and verified through strict in-house inspection and quality control procedures.

Quality Assurance

Certified in-house inspection and testing facilities ensure all components meet internationally recognized quality standards.

User Guide

Aichiplink operates certified in-house inspection and testing facilities to ensure all electronic components meet internationally recognized quality and compliance standards. Our quality management system is verified through ISO 9001 certification and industry-standard inspection procedures.

PURCHASE

Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.

MEANS OF PAYMENT

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.

RFQ (REQUEST FOR QUOTATIONS)

Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.

IMPORTANT NOTICE

Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.

Step1：Prepare product

Step2：Desiccant Protection

Step3：Vacuum Packaging

Step4：Individual Package

Step5：Anti-collision Filling

Step6：Packaging Box

SHIPPING COST

1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.

SHIPPING METHOD

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

DELIVERY TIME

1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.

TPS27S100APWPRG4 Information

Texas Instruments TPS27S100APWPRG4 technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments TPS27S100APWPRG4.

Type
Parameter

Number of channels
1

Operating voltage (max) (V)
40

Operating voltage (min) (V)
4

Ron (typ) (mΩ)
80

Imax (A)
4

Current limit (min) (A)
0.5

Current limit (max) (A)
7

Current limit type
Adjustable

Current limit accuracy
+/-20% @ 0.5A

Current sense accuracy
+/-30mA @ 1A, 3mA @ 25mA

Type
Parameter

FET
Internal

Features
Current sense output, Programmable current limit, Thermal shutdown, Under voltage lock out

Operating temperature range (°C)
-40 to 125

Function
Adjustable current limit, Automotive load dump compatibility, Current monitoring, Inductive load compatibility, Inrush current control, Short circuit protection, Thermal shutdown

Rating
Catalog

Package
HTSSOP (PWP)

Pins
14

Size
32 mm² 5 x 6.4

Package
WQFN (RRK)

Pins
16

Download datasheets and manufacturer documentation for Texas Instruments TPS27S100APWPRG4.

The TPS27S100x is a single-channel, fully-protected, high-side switch with an integrated NMOS and charge pump. Full diagnostics and high-accuracy current-monitor features enable intelligent control of the load. An adjustable current-limit function greatly improves the reliability of the whole system. The device diagnostic reporting has two versions to support both digital fault status and analog current monitor output. Accurate current monitor and adjustable current limit features differentiate it from the market.

80-mΩ Single-channel High-side switch with full diagnostics
- TPS27S100A: Open-drain status output
- TPS27S100B: Current monitor analog output
Wide operating voltage 3.5 V to 40 V
Very-low standby current, <0.5 µA
Operating junction temperature, –40 to 150°C
Input control, 3.3-V and 5-V logic compatible
High-accuracy current monitor, ±30 mA at 1 A
Adjustable current limit (0.5-A to 6-A) with external resistor, ±20% at 0.5 A
Diagnostic enable function for multiplexing of MCU, analog or digital interface
Excellent ESD protection on IN and OUT pins
- ±16 kV IEC 61000-4-2 ESD contact discharge
- ±4 kV IEC 61000-4-4 Electrical fast transient
- ±1.0 kV/42 Ω IEC 61000-4-5 Surge
Protection
- Overload and short-circuit-to-GND protection
- Inductive load negative voltage clamp
- Undervoltage lockout (UVLO) protection
- Thermal shutdown and swing with self recovery
- Loss of GND protection
Diagnostic
- On- and Off-State output Open-Load / short to supply detection
- Overload and short to ground detection
- Thermal shutdown and swing detection
Thermally-Enhanced 14-Pin PWP or 16-Pin QFN package
