TI TPS25830QWRHBTQ1

Manufacturer No:

TPS25830QWRHBTQ1

Manufacturer:

Package:

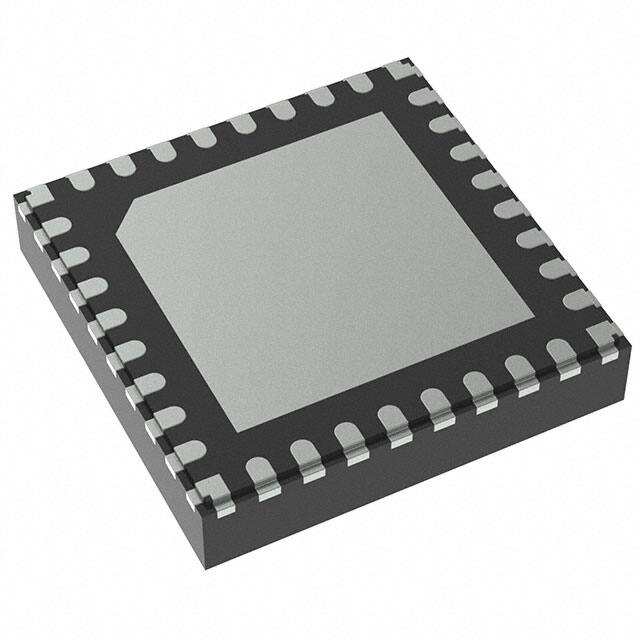

32-VFQFN Exposed Pad

Description:

32 Terminations 4.5V~36V TPS25830 Specialized Power Management ICs 700?A 1 Functions

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TPS25830QWRHBTQ1 information

TI TPS25830QWRHBTQ1 technical specifications, attributes, parameters and parts with similar specifications to TI TPS25830QWRHBTQ1.

Type
Parameter

Factory Lead Time
6 Weeks

Mounting Type
Surface Mount, Wettable Flank

Package / Case
32-VFQFN Exposed Pad

Surface Mount
YES

Operating Temperature
-40°C~125°C TJ

Packaging
Tape & Reel (TR)

Series
Automotive, AEC-Q100

JESD-609 Code
e3

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
2 (1 Year)

Number of Terminations
32

Terminal Finish
Matte Tin (Sn)

Applications
Automotive, USB Protection

Additional Feature
ADJUSTABLE OUTPUT VOLTAGE FROM 0 TO 6V

Voltage - Supply
4.5V~36V

Terminal Position
QUAD

Terminal Form
NO LEAD

Number of Functions
1

Terminal Pitch
0.5mm

Base Part Number
TPS25830

JESD-30 Code
S-PQCC-N32

Input Voltage-Nom
13.5V

Analog IC - Other Type
SWITCHING REGULATOR

Input Voltage (Min)
4.5V

Control Mode
CURRENT-MODE

Output Current-Max
3.5A

Input Voltage (Max)
36V

Control Technique
PULSE WIDTH MODULATION

Switcher Configuration
BUCK

Switching Frequency-Max
2300kHz

Length
5mm

Height Seated (Max)
1mm

Width
5mm

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for TI TPS25830QWRHBTQ1.

TPS25830QWRHBTQ1 Overview

The way of Tape & Reel (TR) is acceptable for shipping the power management.To facilitate transportation, it is packaged the power management in 32-VFQFN Exposed Pad .Surface Mount, Wettable Flank is a universal mounting method that is easy to adapt.Among other applications, this power management targets Automotive, USB Protection .It is recommended that you set the operating temperature of the power management ic to -40°C~125°C TJ in order to prevent malfunctions.For its operation, this power management requires 4.5V~36V voltage.Check out search TPS25830 for more power ic's pin-to-pin solutions.There are 32 terminals on the power management.The instruments designs is highly regarded as a SWITCHING REGULATOR analog IC.It is recommended that the power ic receives its supply current at 700?A .There are a manage ics from Automotive, AEC-Q100 .The integrated power supplies can also be used to find ADJUSTABLE OUTPUT VOLTAGE FROM 0 TO 6V .

TPS25830QWRHBTQ1 Features

Mainly used in Automotive, USB Protection applications
Operating temperature: -40°C~125°C TJ
SWITCHING REGULATOR analog IC
ADJUSTABLE OUTPUT VOLTAGE FROM 0 TO 6V

TPS25830QWRHBTQ1 Applications

There are a lot of Texas Instruments
TPS25830QWRHBTQ1Power Management applications.

SmartPhones
Portable Navigation Devices
Portable Media Players
Portable Systems
Hand-Held Systems
Space satellite point of load supply
Communications payload
Optical imaging payload
Desktop PC
Motherboard
