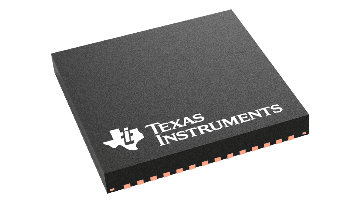

Texas Instruments TPS2388RTQRG4
Manufacturer No:
TPS2388RTQRG4
Manufacturer:
Package:
Description:
2-pair, type-2, 8-channel PoE PSE
Quantity:
In Stock :6258
Looking for price or availability? Send us an RFQ and our sales team will respond quickly.
Shipping & Availability
Fast worldwide shipping via DHL, FedEx, UPS, and EMS.
Payment
We support multiple secure payment methods including PayPal, Visa, MasterCard, and American Express. All transactions are protected with advanced encryption to ensure secure and reliable payments.
Authenticity Guarantee
All components supplied by Aichiplink are sourced from trusted global suppliers and verified through strict in-house inspection and quality control procedures.
Quality Assurance
Certified in-house inspection and testing facilities ensure all components meet internationally recognized quality standards.
User Guide
Aichiplink operates certified in-house inspection and testing facilities to ensure all electronic components meet internationally recognized quality and compliance standards. Our quality management system is verified through ISO 9001 certification and industry-standard inspection procedures.
Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.
MEANS OF PAYMENTFor your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.
RFQ (REQUEST FOR QUOTATIONS)Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.
Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.
Step1：Prepare product
Step2：Desiccant Protection
Step3：Vacuum Packaging
Step4：Individual Package
Step5：Anti-collision Filling
Step6：Packaging Box
1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.
Currently, our products are shipped through DHL, FedEx, SF, and UPS.
DELIVERY TIME1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.
TPS2388RTQRG4 Information
Texas Instruments TPS2388RTQRG4 technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments TPS2388RTQRG4.
- Type
- Parameter
- Vin (min) (V)
- 44
- Vin (max) (V)
- 57
- ILIM
- Programmable
- PoE standards supported
- 802.3at Type 1 (802.3af), 802.3at Type 2
- FET
- External
- MPS method
- DC Disconnect
- Pair control
- 2-Pair Alt A
- Operating temperature range (°C)
- -40 to 125
- Features
- Current Limit with Foldback, Fast shutdown, Multi Level Port Priority, Over Current Reporting, Over Temp Reporting, Port remapping, Programmable ICUT
- Number of PSE ports
- 8
- Type
- Parameter
- Rating
- Catalog
- Package
- VQFN (RTQ)
- Pins
- 56
- Size
- 64 mm² 8 x 8
- REACH Status
- Yes
- RoHS Status
- RoHS Compliant
Download datasheets and manufacturer documentation for Texas Instruments TPS2388RTQRG4.
Data sheet:
Design guide:
EVM User's guide:
Application note:
The TPS2388 is an 8-channel power source equipment (PSE) controller engineered to insert power onto Ethernet cable according to IEEE 802.3at-2012 standard (or 802.3at). The PSE controller can detect powered devices (PDs) that have a valid signature, determine the power requirements according to the classification, and apply power through either one (Type -1) or two-event (Type-2) physical classification. The TPS2388 also has the flexibility to support UPoE and other non-standard loads.
The Port remapping and the device pinout allow designers to enable 2-layer PCB designs and simplify software migration from previous generation PSE devices. The external FET architecture allows designers to further balance size, efficiency, thermal, and solution cost requirements. The current foldback reduces thermal stress on the external MOSFETs during startup and overload conditions allowing the use of cheaper FETs.
The Fast Shutdown (OSS) input provides up to eight levels of per port shutdown priority for applications that require the immediate disabling of multiple ports.
- Fully IEEE 802.3at Compliant
- Port Re-Mapping
- 1- and 3-Bit Fast Port Shutdown Input
- “Never Fooled” 4-Point Detection
- Type 1 and Type 2 PD Classification
- Programmable Current Limit With Foldback
- DC Disconnect Detection
- Flexible Processor Controlled Operating Modes
- Semiauto
- Manual
- 14-Bit Port Current and Voltage Monitoring
- 100-ms Rolling Port Current Averaging
- 2% Current Sensing Accuracy
- 0.255-Ω Sense Resistor With Kelvin Sense
- I2C Communication
- I2C Watchdog for Failsafe Operation
- 8- and 16-Bit Access Mode Selectable
- –40°C to 125°C Temperature Operation
- 56-Lead VQFN Package
