TI TPS2343DDP

Manufacturer No:

TPS2343DDP

Manufacturer:

Package:

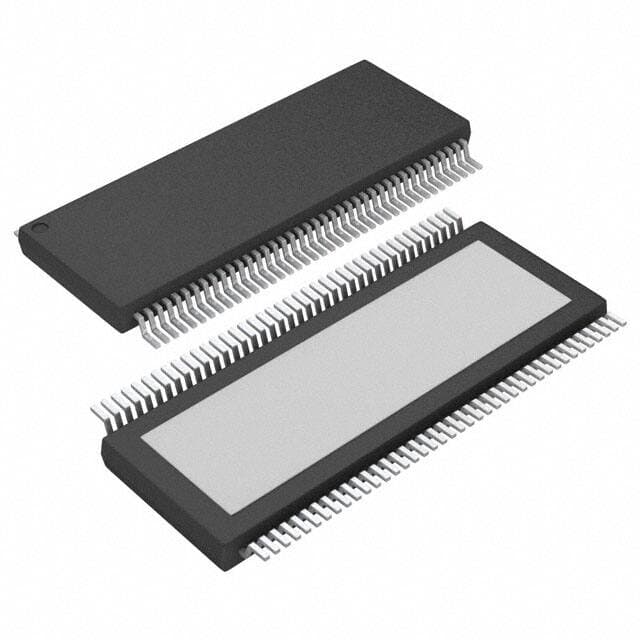

80-TFSOP (0.240, 6.10mm Width) Exposed Pad

Description:

Tube Obsolete 12 Surface Mount Hot Swap Controllers Latched Fault, Thermal Limit 80-TFSOP (0.240, 6.10mm Width) Exposed Pad 12 PCI, PCI-X Hot Plug Controller

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TPS2343DDP information

TI TPS2343DDP technical specifications, attributes, parameters and parts with similar specifications to TI TPS2343DDP.

Type
Parameter

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
80-TFSOP (0.240, 6.10mm Width) Exposed Pad

Number of Pins
80

Weight
262.403186mg

Operating Temperature
-40°C~85°C

Packaging
Tube

JESD-609 Code
e3

Feature
Latched Fault, Thermal Limit

Pbfree Code
no

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
2 (1 Year)

Number of Terminations
80

ECCN Code
EAR99

Type
Hot Plug Controller

Terminal Finish
Matte Tin (Sn)

Applications
PCI, PCI-X

HTS Code
8542.39.00.01

Subcategory
Power Management Circuits

Voltage - Supply
1.5V 3.3V 5V ±12V

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
2

Terminal Pitch
0.4mm

Depth
6.1mm

Time@Peak Reflow Temperature-Max (s)
NOT SPECIFIED

Base Part Number
TPS2343

Pin Count
80

Qualification Status
Not Qualified

Output Voltage
2.8V

Supply Voltage-Min (Vsup)
10.8V

Number of Channels
12

Operating Supply Current
3mA

Current - Output (Max)
100mA 375mA 1.1A

Adjustable Threshold
YES

Nominal Input Voltage
13.2V

Internal Switch(s)
Both

Programmable Features
Current Limit, Slew Rate

Length
17mm

Height Seated (Max)
1.2mm

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for TI TPS2343DDP.

Datasheets:

texasinstruments-tps2343ddp-datasheets-4100.pdf

TPS2343DDP Overview

This is included in the 80-TFSOP (0.240, 6.10mm Width) Exposed Pad package.At present, 12 channels are available.It's packaged in a Tube shape.Total terminations are 80.Device position DUAL is its terminal position.In total, there are 80 pins on it.A supply voltage of 12V can result in high efficiency.According to Surface Mount, it has been set up.Electric components of this type are classified as Hot Plug Controller.For reliable operation, set the temperature to -40°C~85°C.Application PCI, PCI-X is available on the device.As you can see in Latched Fault, Thermal Limit, it's featured.The device should be able to be powered by a 1.5V 3.3V 5V ±12VV power source.There are numbers in the TPS2343 family that include it.80 pins are used in operation.As far as Power Management Circuits is concerned, this gadget is self-contained.There are Current Limit, Slew Rate features that can be programmed.Positioned in direction of Surface Mount, it is at a right angle.Hot-swappable device is important that the supply voltage (Vsup) is kept above 10.8V for normal operation of the device.The device produces 100mA 375mA 1.1AV as its maximum output.There is a supply current of 3mA.2.8V output voltage enables high efficiency.

TPS2343DDP Features

The terminal position of 80
Features of Latched Fault, Thermal Limit
Programmable features of Current Limit, Slew Rate
Output voltage of 2.8V

TPS2343DDP Applications

There are a lot of Texas Instruments
TPS2343DDP hot swap controllers applications.

Avionics systems
Safe board insertion and extraction
Industrial computers and servers
Redundant-array-of-independent-disk (RAID) storage
Other forms of communications infrastructure
Board or blade insertion into live backplanes
Backplane
Loads
Distributed power systems
Redundant negative voltage supplies
