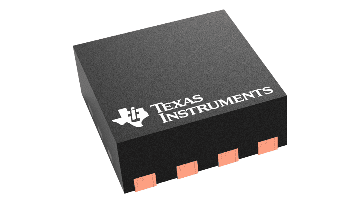

Texas Instruments TPS22965NDSGRG4

Manufacturer No:

TPS22965NDSGRG4

Manufacturer:

Texas Instruments

Package:

Description:

5.7-V, 6-A, 16-mΩ load switch with adj. rise time and optional output discharge

Quantity:

In Stock :9587

Looking for price or availability? Send us an RFQ and our sales team will respond quickly.

Shipping & Availability

Fast worldwide shipping via DHL, FedEx, UPS, and EMS.

Shipped from：HK Warehouse

Expected Shipping：Thu, May 7 - Fri, May 8, 2026

Lead Time：Inquire about availability

Date Code：Within 2 Years

Payment

We support multiple secure payment methods including PayPal, Visa, MasterCard, and American Express. All transactions are protected with advanced encryption to ensure secure and reliable payments.

Authenticity Guarantee

All components supplied by Aichiplink are sourced from trusted global suppliers and verified through strict in-house inspection and quality control procedures.

Quality Assurance

Certified in-house inspection and testing facilities ensure all components meet internationally recognized quality standards.

User Guide

Aichiplink operates certified in-house inspection and testing facilities to ensure all electronic components meet internationally recognized quality and compliance standards. Our quality management system is verified through ISO 9001 certification and industry-standard inspection procedures.

PURCHASE

Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.

MEANS OF PAYMENT

For your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.

RFQ (REQUEST FOR QUOTATIONS)

Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.

IMPORTANT NOTICE

Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.

Step1：Prepare product

Step2：Desiccant Protection

Step3：Vacuum Packaging

Step4：Individual Package

Step5：Anti-collision Filling

Step6：Packaging Box

SHIPPING COST

1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.

SHIPPING METHOD

Currently, our products are shipped through DHL, FedEx, SF, and UPS.

DELIVERY TIME

1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.

TPS22965NDSGRG4 Information

Texas Instruments TPS22965NDSGRG4 technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments TPS22965NDSGRG4.

Type
Parameter

Number of channels
1

Vin (min) (V)
0.8

Vin (max) (V)
5.7

Imax (A)
6

Ron (typ) (mΩ)
16

Shutdown current (ISD) (typ) (µA)
2

Quiescent current (Iq) (typ) (µA)
50

Soft start
Adjustable Rise Time

Current limit type
None

Features
Inrush current control, Quick output discharge

Type
Parameter

Rating
Catalog

Operating temperature range (°C)
-40 to 105

FET
Internal

Device type
Load switches

Function
Inrush current control

Package
WSON (DSG)

Pins
8

Size
4 mm² 2 x 2

REACH Status
Yes

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for Texas Instruments TPS22965NDSGRG4.

The TPS22965x is a single channel load switch that provides configurable rise time to minimize inrush current. The device contains an N-channel MOSFET that can operate over an input voltage range of 0.8 V to 5.7 V and can support a maximum continuous current of 6 A. The switch is controlled by an on and off input (ON), which is capable of interfacing directly with low-voltage control signals. In the TPS22965, a 225-Ω on-chip load resistor is added for quick output discharge when switch is turned off.

The TPS22965x is available in a small, space-saving 2-mm × 2-mm 8-pin SON package (DSG) with integrated thermal pad allowing for high power dissipation. The device is characterized for operation over the free-air temperature range of –40°C to +105°C.

Integrated Single Channel Load Switch
Input Voltage Range: 0.8 V to 5.7 V
Ultra-Low On Resistance (R_ON)
- R_ON = 16 mΩ at VIN = 5 V (VBIAS = 5 V)
- R_ON = 16 mΩ at VIN = 3.6 V (VBIAS = 5 V)
- R_ON = 16 mΩ at VIN = 1.8 V (VBIAS = 5 V)
6-A Maximum Continuous Switch Current
Low Quiescent Current (50 µA)
Low Control Input Threshold Enables Use of
1.2-, 1.8-, 2.5-, and 3.3-V Logic
Configurable Rise Time
Quick Output Discharge (QOD) (Optional)
SON 8-pin Package With Thermal Pad
ESD Performance Tested per JESD 22
- 2000-V HBM and 1000-V CDM
