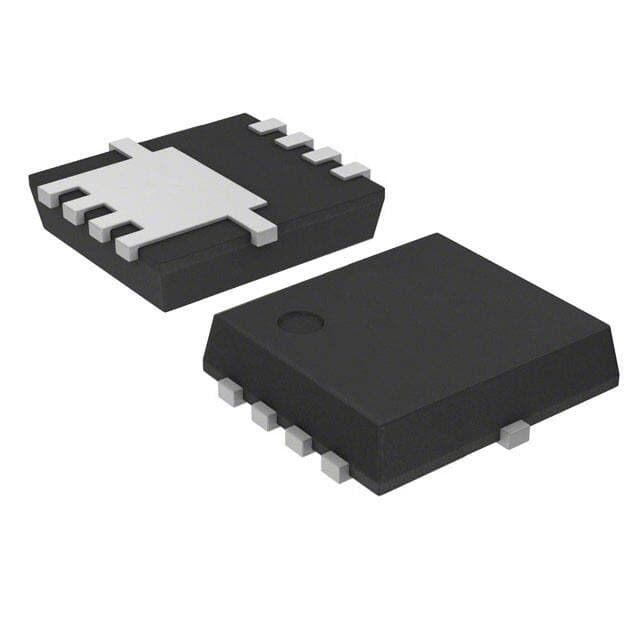

TOSHIBA TPH2900ENH,L1Q

Manufacturer No:

TPH2900ENH,L1Q

Manufacturer:

TOSHIBA

Package:

8-PowerVDFN

Description:

N-Channel Cut Tape (CT) 29m Ω @ 16.5A, 10V ±20V 2200pF @ 100V 22nC @ 10V 200V 8-PowerVDFN

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TPH2900ENH,L1Q information

TOSHIBA TPH2900ENH,L1Q technical specifications, attributes, parameters and parts with similar specifications to TOSHIBA TPH2900ENH,L1Q.

Type
Parameter

Factory Lead Time
12 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
8-PowerVDFN

Number of Pins
8

Current - Continuous Drain (Id) @ 25℃
33A Ta

Drive Voltage (Max Rds On, Min Rds On)
10V

Power Dissipation (Max)
78W Tc

Turn Off Delay Time
36 ns

Operating Temperature
150°C TJ

Packaging
Cut Tape (CT)

Series
U-MOSVIII-H

Published
2014

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Turn On Delay Time
20 ns

FET Type
N-Channel

Rds On (Max) @ Id, Vgs
29m Ω @ 16.5A, 10V

Vgs(th) (Max) @ Id
4V @ 1mA

Input Capacitance (Ciss) (Max) @ Vds
2200pF @ 100V

Gate Charge (Qg) (Max) @ Vgs
22nC @ 10V

Rise Time
8ns

Drain to Source Voltage (Vdss)
200V

Vgs (Max)
±20V

Continuous Drain Current (ID)
33A

Gate to Source Voltage (Vgs)
20V

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for TOSHIBA TPH2900ENH,L1Q.

TPH2900ENH,L1Q Overview

The maximum input capacitance of this device is 2200pF @ 100V, because the input capacitance of an op amp is defined as the difference between the input terminals with one input grounded.Continuous drain current (ID) is the maximum continuous current (ID) the device can conduct, and it is 33A.During device turn-on, the input capacitance must be charged for a period of time before drain current conduction can begin, so its delay time is 20 ns seconds.Single MOSFETs transistor is the voltage across the gate-source terminal of a transistor that determines the gate-source voltage, VGS.The drain-to-source voltage (Vdss) of this transistor needs to be at 200V in order to operate.

TPH2900ENH,L1Q Features

a continuous drain current (ID) of 33A
a 200V drain to source voltage (Vdss)

TPH2900ENH,L1Q Applications

There are a lot of Toshiba Semiconductor and Storage
TPH2900ENH,L1Q applications of single MOSFETs transistors.

Micro Solar Inverter
DC/DC converters
Power Tools
Motor Drives and Uninterruptible Power Supples
Synchronous Rectification
Battery Protection Circuit
Telecom 1 Sever Power Supplies
Industrial Power Supplies
PFC stages, hard switching PWM stages and resonant switching
PWM stages for e.g. PC Silverbox, Adapter, LCD & PDP TV,
