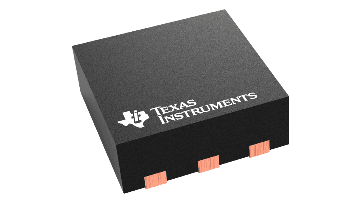

Texas Instruments TPD4E001DPKRG4
Manufacturer No:
TPD4E001DPKRG4
Manufacturer:
Package:
Description:
ESD Protection Diodes / TVS Diodes Quad 1.5-pF, 5.5-V, +/-8-kV ESD protection diode with 1-nA max leakage & VCC pin for USB 2.0
Quantity:
In Stock :5631
Looking for price or availability? Send us an RFQ and our sales team will respond quickly.
Shipping & Availability
Fast worldwide shipping via DHL, FedEx, UPS, and EMS.
Payment
We support multiple secure payment methods including PayPal, Visa, MasterCard, and American Express. All transactions are protected with advanced encryption to ensure secure and reliable payments.
Authenticity Guarantee
All components supplied by Aichiplink are sourced from trusted global suppliers and verified through strict in-house inspection and quality control procedures.
Quality Assurance
Certified in-house inspection and testing facilities ensure all components meet internationally recognized quality standards.
User Guide
Aichiplink operates certified in-house inspection and testing facilities to ensure all electronic components meet internationally recognized quality and compliance standards. Our quality management system is verified through ISO 9001 certification and industry-standard inspection procedures.
Please verify all part numbers, quantities, and packaging preferences before placing your order. If substitutions are acceptable, please indicate this clearly. For time-sensitive projects, confirm estimated delivery dates and stock availability in advance. Once submitted, changes or cancellations may not be possible, especially for items marked as non-cancellable/non-returnable (NCNR). For international shipments, please ensure all import documentation is complete and accurate to avoid delays.
MEANS OF PAYMENTFor your convenience, we accept multiple payment methods in USD, including PayPal, Credit Card, and Wire Transfer. Net terms may be available for qualified customers upon approval.
RFQ (REQUEST FOR QUOTATIONS)Please ensure the part numbers and quantities are accurate and complete when submitting your RFQ.
Provide target prices and acceptable alternatives, if any, to speed up the quotation process.
Quotations are subject to stock availability and may vary with market conditions. Prices and lead times are not guaranteed until a purchase order is confirmed. Ensure your contact details are correct to avoid delays in response.
Step1：Prepare product
Step2：Desiccant Protection
Step3：Vacuum Packaging
Step4：Individual Package
Step5：Anti-collision Filling
Step6：Packaging Box
1. Shipping starts at $40, but some countries will exceed $40. For example (South Africa, Brazil, India, Pakistan, Israel, etc.).
2. Some specific products need to reach the minimum order quantity.
3. It may cost additional remote fees for delivery if you are in a remote area.
Currently, our products are shipped through DHL, FedEx, SF, and UPS.
DELIVERY TIME1. Once the goods are shipped, estimated delivery time depends on the shipping methods you chose: FedEx International, 5-7 business days.
2. For in-stock parts, orders normally could be shipped out within 1-2days.
TPD4E001DPKRG4 Information
Texas Instruments TPD4E001DPKRG4 technical specifications, attributes, parameters and parts with similar specifications to Texas Instruments TPD4E001DPKRG4.
- Type
- Parameter
- Package name
- SC70-6, SOT-23-6, SOT-5X3, USON, WSON
- Peak pulse power (8/20 μs) (max) (W)
- 100
- Vrwm (V)
- 5.5
- Bi-/uni-directional
- Uni-Directional
- Number of channels
- 4
- IO capacitance (typ) (pF)
- 1.5
- IEC 61000-4-2 contact (±V)
- 8000
- IEC 61000-4-5 (A)
- 5.5
- Clamping voltage (V)
- 25
- Interface type
- Ethernet, LVDS, USB 2.0
- Type
- Parameter
- Breakdown voltage (min) (V)
- 11
- IO leakage current (max) (nA)
- 1
- Rating
- Catalog
- Operating temperature range (°C)
- -40 to 85
- Package
- SOT-23 (DBV)
- Pins
- 6
- Size
- 8.12 mm² 2.9 x 2.8
- Package
- SOT-5X3 (DRL)
- Pins
- 6
- Size
- 2.56 mm² 1.6 x 1.6
Download datasheets and manufacturer documentation for Texas Instruments TPD4E001DPKRG4.
Application note:
Analog Design Journal:
Data sheet:
User guide:
Selection guide:
The TPD4E001 is a four-channel Transient Voltage Suppressor (TVS) based Electrostatic Discharge (ESD) protection diode array. The TPD4E001 is rated to dissipate ESD strikes at the maximum level specified in the IEC 61000-4-2 international standard (Level 4). This device has a 1.5pF IO capacitance per channel, making it ideal for use in high-speed data IO interfaces. The ultra low leakage current (< 1nA maximum) is suitable for precision analog measurements in applications like glucose meters and heart rate monitors.
The TPD4E001 is available in DRL(SOT), DBV (SOT-23), DCK (SC-70), DRS (QFN), and DPK (PUSON) packages and is specified for –40°C to +85°C operation. See also the TPD4E1U06DCKR and TPD4E1U06DBVR which are p2p compatible with the TPD4E001DCKR and TPD4E001DBVR. These devices offer higher IEC protection, lower capacitance, lower clamping voltage, and eliminate the input capacitor requirement.
- IEC 61000-4-2 ESD Protection (Level 4)
- ±8kV Contact Discharge
- ±15kV Air-Gap Discharge
- 5.5A Peak Pulse Current (8/20µs Pulse)
- IO Capacitance: 1.5pF (Typical)
- Low Leakage Current: 1nA (Maximum)
- Low Supply Current: 1nA
- 0.9V to 5.5V Supply-Voltage Range
- Space-Saving DRL, DBV, DCK, DPK, and DRS Package Options
- Alternate 2, 3, 6-Channel options Available: TPD2E001, TPD3E001, TPD6E001
