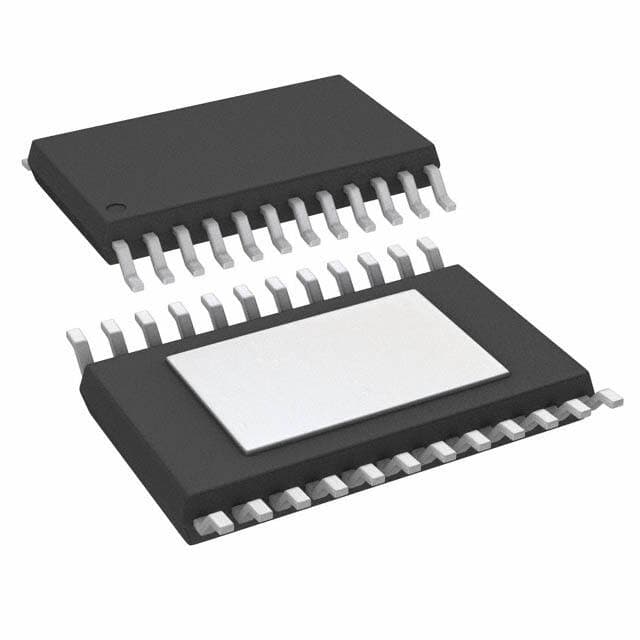

TI TPA3120D2PWPG4

Manufacturer No:

TPA3120D2PWPG4

Manufacturer:

Package:

24-TSSOP (0.173, 4.40mm Width) Exposed Pad

Description:

23mA mA 22 kHz kHz 25W W Audio Amplifiers 1.15mm mm 4.4mm mm 4.16W W 30V V 24 pins 24-TSSOP (0.173, 4.40mm Width) Exposed Pad

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TPA3120D2PWPG4 information

TI TPA3120D2PWPG4 technical specifications, attributes, parameters and parts with similar specifications to TI TPA3120D2PWPG4.

Type
Parameter

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
24-TSSOP (0.173, 4.40mm Width) Exposed Pad

Number of Pins
24

Weight
98.08935mg

Operating Temperature
-40°C~85°C TA

Packaging
Tube

JESD-609 Code
e4

Feature
Depop, Mute, Short-Circuit and Thermal Protection, Shutdown

Part Status
Not For New Designs

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
24

ECCN Code
EAR99

Type
Class D

Terminal Finish
Nickel/Palladium/Gold (Ni/Pd/Au)

Subcategory
Audio/Video Amplifiers

Max Power Dissipation
4.16W

Technology
CMOS

Voltage - Supply
10V~30V

Terminal Position
DUAL

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Number of Functions
1

Terminal Pitch
0.65mm

Pin Count
24

Output Type
2-Channel (Stereo)

Operating Supply Voltage
24V

Supply Voltage-Max (Vsup)
30V

Supply Voltage-Min (Vsup)
10V

Number of Channels
2

Nominal Supply Current
23mA

Power Dissipation
4.16W

Output Power
20W

Supply Type
Single

Bandwidth
22 kHz

Voltage Gain
36dB

Gain
36 dB

Max Output Power
25W

Max Output Power x Channels @ Load
25W x 2 @ 4 ?

Load Impedance
4Ohm

Height
1.15mm

Length
7.8mm

Width
4.4mm

REACH SVHC
No SVHC

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for TI TPA3120D2PWPG4.

Datasheets:

texasinstruments-tpa3120d2pwpg4-datasheets-4052.pdf

texasinstruments-tpa3120d2pwpg4-datasheets-4053.pdf

texasinstruments-tpa3120d2pwpg4-datasheets-4054.pdf

texasinstruments-tpa3120d2pwpg4-datasheets-4057.pdf

TPA3120D2PWPG4 Overview

Amp parts is embedded in the 24-TSSOP (0.173, 4.40mm Width) Exposed Pad package.Amp parts is packaged in the way of Tube .There are 24 terminations, which are the practice of ending a transmission line with a device that matches the characteristic impedance of the line.The output it is configured with uses 2-Channel (Stereo) .The type of this electrical device is Class D .There are 24 pins, which are pronged contacts as part of a signal interface in a computer or other communications device. This electronic part is mounted in the way of Surface Mount .The supply voltage of this electrical device is 10V~30V .The number of channels is growing strong/weak: 2 .Depop, Mute, Short-Circuit and Thermal Protection, Shutdown can be ensured when operating.The operating temperature should not exceed -40°C~85°C TA .Amp parts is equipped wAmp partsh 24 pin count.This part is included in Audio/Video Amplifiers .Amp parts belongs to TPA3120 family.This electronic part is mounted in the way of Surface Mount .The maximal Output Power of this electronic part is 25W kWh per hour.The supply voltage (Vsup) should be kept above 10V for normal operation.The maximal supply voltage (Vsup) reaches 30V .The supply type of this electronic part is Single .
