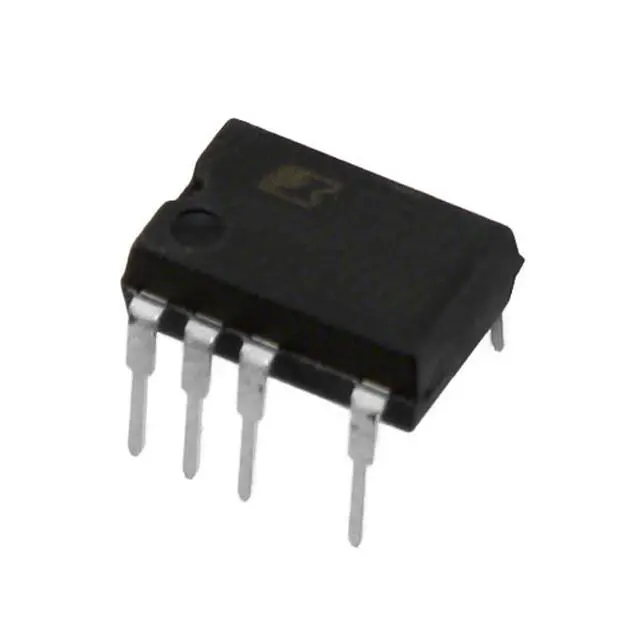

Power Integrations TOP252MG

Manufacturer No:

TOP252MG

Manufacturer:

Power Integrations

Package:

10-SDIP (0.300, 7.62mm), 9 Leads

Description:

9 Pin AC to DC power converter TOPSwitch®-HX Series 66kHz

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TOP252MG information

Power Integrations TOP252MG technical specifications, attributes, parameters and parts with similar specifications to Power Integrations TOP252MG.

Type
Parameter

Factory Lead Time
4 Weeks

Mount
Through Hole

Mounting Type
Through Hole

Package / Case
10-SDIP (0.300, 7.62mm), 9 Leads

Number of Pins
9

Supplier Device Package
SDIP-10C

Operating Temperature
-40°C~150°C TJ

Packaging
Tube

Series
TOPSwitch®-HX

Published
2012

Part Status
Active

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Max Operating Temperature
150°C

Min Operating Temperature
-40°C

Power (Watts)
15W

Max Power Dissipation
21W

Topology
Flyback

Frequency - Switching
66kHz

Internal Switch(s)
Yes

Fault Protection
Current Limiting, Over Temperature, Over Voltage

Duty Cycle
78%

Output Isolation
Isolated

Voltage - Breakdown
700V

Radiation Hardening
No

Download datasheets and manufacturer documentation for Power Integrations TOP252MG.

TOP252MG Overview

The ac to dc converter is embedded in 10-SDIP (0.300, 7.62mm), 9 Leads package.It is available in Tube AC/DC power converter.This AC/DC converter is mounted in the way of Through Hole .To deliver its performance, the ac dc converter should be operated at a temperature of -40°C~150°C TJ .The switching frequency reaches 66kHz .There are 9 pins on the ac/dc converter.The ac dc converters are suitable to mount by Through Hole .It is a member of TOPSwitch®-HX manufacturer family.It is provided with SDIP-10C pacakge.The maximum 150°C ensures that the AC to DC power converter runs stablily.This isolated switch's minimum working temperature must not be less than -40°C .

TOP252MG Features

Packaged with 10-SDIP (0.300, 7.62mm), 9 Leads
Switching Frequency at 66kHz
With 9 pins

TOP252MG Applications

There are a lot of Power Integrations
TOP252MG AC DC Converters applications.

AC/DC Adaptors/Chargers for Cell Phones
AC/DC Adaptors/Chargers for Cordless Phone
AC/DC Adaptors/Chargers for PDAs
AC/DC Adaptors/Chargers for E-books
Adaptors for Portable Media Player
Adaptors for DSCs
Set-top boxes
DVD players
Records
Linear Adapter Replacements
