Power Integrations TOP244R-TL

Manufacturer No:

TOP244R-TL

Manufacturer:

Power Integrations

Package:

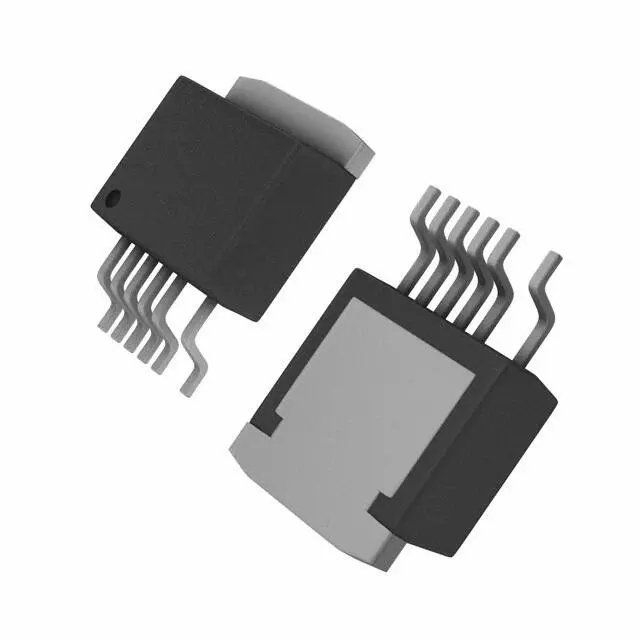

TO-263-7, D2Pak (6 Leads + Tab), TO-263CB

Description:

6 Terminations AC to DC power converter TOPSwitch®-GX Series 66kHz~132kHz Min 85V V Max 265V V

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TOP244R-TL information

Power Integrations TOP244R-TL technical specifications, attributes, parameters and parts with similar specifications to Power Integrations TOP244R-TL.

Type
Parameter

Mounting Type
Surface Mount

Package / Case
TO-263-7, D2Pak (6 Leads + Tab), TO-263CB

Surface Mount
YES

Operating Temperature
-40°C~150°C TJ

Packaging
Tape & Reel (TR)

Series
TOPSwitch®-GX

JESD-609 Code
e0

Pbfree Code
no

Part Status
Not For New Designs

Moisture Sensitivity Level (MSL)
4 (72 Hours)

Number of Terminations
6

ECCN Code
EAR99

Terminal Finish
TIN LEAD

HTS Code
8542.39.00.01

Subcategory
Switching Regulator or Controllers

Max Power Dissipation
50W

Technology
CMOS

Terminal Position
SINGLE

Terminal Form
GULL WING

Number of Functions
1

Terminal Pitch
1.27mm

Pin Count
4

JESD-30 Code
R-PSSO-G6

Output Voltage
12V

Nominal Supply Current
1.6mA

Control Features
Frequency Control

Topology
Flyback

Control Mode
VOLTAGE-MODE

Output Current-Max
2.16A

Frequency - Switching
66kHz~132kHz

Control Technique
PULSE WIDTH MODULATION

Switcher Configuration
SINGLE

Internal Switch(s)
Yes

Fault Protection
Current Limiting, Over Temperature, Over Voltage

Max Duty Cycle
83 %

Max Supply Voltage (AC)
265V

Duty Cycle
66.5%

Output Isolation
Isolated

Voltage - Breakdown
700V

Min Supply Voltage (AC)
85V

Length
10.29mm

Height Seated (Max)
4.7mm

Width
8.405mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Contains Lead

Download datasheets and manufacturer documentation for Power Integrations TOP244R-TL.

TOP244R-TL Overview

An embedded ac to dc converter is included in TO-263-7, D2Pak (6 Leads + Tab), TO-263CB package.Tape & Reel (TR) case is available for the ac dc converter.Surface Mount mounts this AC/DC converter.The ac dc converter needs to be operated at -40°C~150°C TJ °C in order to perform.The AC DC converter utilizes a type SWITCHING REGULATOR analog IC.There is 66kHz~132kHz switching frequency.As a result, it has a total of 6 terminations.There are 4 pins in total.This AC to DC converter belongs to the TOPSwitch®-GX family of manufacturers.The ac to dc conversions can be found in Switching Regulator or Controllers .It produces a voltage of 12V .Currently, the maximum current that the ac to dc inverter can take is 2.16A .A minimum voltage of 85V is required across the converter.It is possible to supply 265V voltage across the converter.

TOP244R-TL Features

Packaged with TO-263-7, D2Pak (6 Leads + Tab), TO-263CB
Switching Frequency at 66kHz~132kHz

TOP244R-TL Applications

There are a lot of Power Integrations
TOP244R-TL AC DC Converters applications.

Linear Adapter Replacements
Chargers for cell/cordless phones
PDAs
MP3
Portable audio
Adapters
Networking
Battery Chargers
Power Adaptors
Standby Power Supplies
