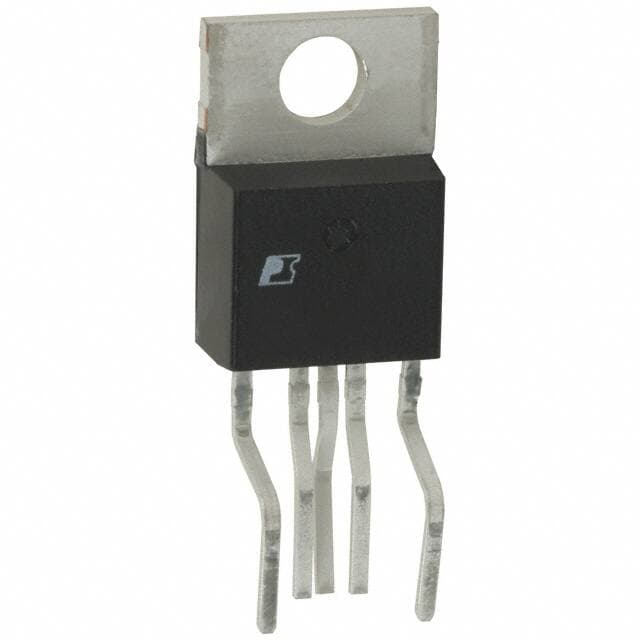

Power Integrations TOP232YN

Manufacturer No:

TOP232YN

Manufacturer:

Power Integrations

Package:

TO-220-7 (Formed Leads), 5 Leads

Description:

5 Terminations AC to DC power converter TOPSwitch®-FX Series 66kHz~132kHz Min 85V V Max 265V V

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TOP232YN information

Power Integrations TOP232YN technical specifications, attributes, parameters and parts with similar specifications to Power Integrations TOP232YN.

Type
Parameter

Mounting Type
Through Hole

Package / Case
TO-220-7 (Formed Leads), 5 Leads

Surface Mount
NO

Operating Temperature
-40°C~150°C TJ

Packaging
Tube

Series
TOPSwitch®-FX

Published
2001

JESD-609 Code
e3

Part Status
Not For New Designs

Moisture Sensitivity Level (MSL)
1 (Unlimited)

Number of Terminations
5

ECCN Code
EAR99

Terminal Finish
PURE MATTE TIN

Power (Watts)
25W

HTS Code
8542.39.00.01

Subcategory
Switching Regulator or Controllers

Max Power Dissipation
25W

Technology
CMOS

Terminal Position
ZIG-ZAG

Number of Functions
1

Terminal Pitch
1.27mm

Pin Count
3

JESD-30 Code
R-PZFM-T5

Output Voltage
12V

Nominal Supply Current
1.5mA

Control Features
Frequency Control

Topology
Flyback

Control Mode
VOLTAGE-MODE

Output Current-Max
0.8A

Frequency - Switching
66kHz~132kHz

Control Technique
PULSE WIDTH MODULATION

Switcher Configuration
SINGLE

Internal Switch(s)
Yes

Fault Protection
Current Limiting, Over Temperature, Over Voltage

Max Duty Cycle
78 %

Max Supply Voltage (AC)
265V

Output Isolation
Isolated

Voltage - Breakdown
700V

Min Supply Voltage (AC)
85V

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for Power Integrations TOP232YN.

TOP232YN Overview

It is embedded in package TO-220-7 (Formed Leads), 5 Leads .You can get it in AC/DC power converter Tube .As you can see, this AC/DC converter is mounted in the way of Through Hole .It is recommended that the ac dc converter be operated at a temperature of -40°C~150°C TJ °C in order to achieve its full performance.Analog IC type SWITCHING REGULATOR is utilized in this AC DC converter.As a result, the switching frequency reaches 66kHz~132kHz .There have been 5 terminations of this program.The pins of the ac-dc converter total to 3 .The AC to DC converter belongs to the manufacturer family of TOPSwitch®-FX .There are a ac to dc conversions included in Switching Regulator or Controllers .This AC/DC converter produces a voltage of 12V as its output.Ac to dc inverters can be powered by up to 0.8A current.There should be no less than 85V voltage across the converter.There is a maximum voltage supply across the converter of 265V volts.

TOP232YN Features

Packaged with TO-220-7 (Formed Leads), 5 Leads
Switching Frequency at 66kHz~132kHz

TOP232YN Applications

There are a lot of Power Integrations
TOP232YN AC DC Converters applications.

Adaptors for DSCs
Set-top boxes
DVD players
Records
Linear Adapter Replacements
Chargers for cell/cordless phones
PDAs
MP3
Portable audio
Adapters
