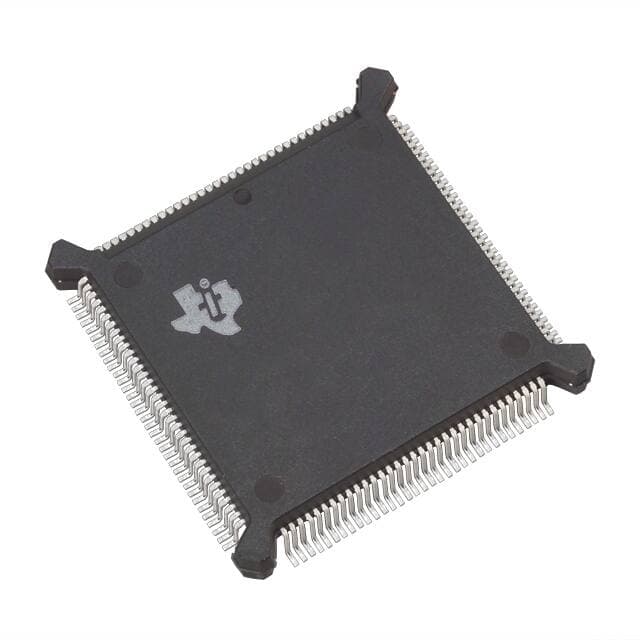

TI TMS320LC31PQ40

Manufacturer No:

TMS320LC31PQ40

Manufacturer:

Package:

132-BQFP Bumpered

Description:

0.635mm CPLD TMS320C3x Series 320LC31 132 Pin 40MHz 3.3V 132-BQFP Bumpered

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TMS320LC31PQ40 information

TI TMS320LC31PQ40 technical specifications, attributes, parameters and parts with similar specifications to TI TMS320LC31PQ40.

Type
Parameter

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
132-BQFP Bumpered

Number of Pins
132

Weight
4.608697g

Operating Temperature
0°C~85°C TC

Packaging
Tray

Series
TMS320C3x

JESD-609 Code
e4

Pbfree Code
no

Part Status
Obsolete

Moisture Sensitivity Level (MSL)
4 (72 Hours)

Number of Terminations
132

ECCN Code
3A991.A.2

Type
Floating Point

Terminal Finish
Nickel/Palladium/Gold (Ni/Pd/Au)

HTS Code
8542.31.00.01

Subcategory
Digital Signal Processors

Technology
CMOS

Terminal Position
QUAD

Terminal Form
GULL WING

Peak Reflow Temperature (Cel)
260

Supply Voltage
3.3V

Terminal Pitch
0.635mm

Base Part Number
320LC31

Pin Count
132

Operating Supply Voltage
3.3V

Interface
Serial Port

Max Supply Voltage
3.47V

Min Supply Voltage
3.13V

RAM Size
8kB

Supply Current-Max
300mA

Bit Size
32

Data Bus Width
32b

Address Bus Width
24

Boundary Scan
NO

Low Power Mode
YES

RAM (words)
2048

Voltage - I/O
3.30V

Barrel Shifter
YES

Internal Bus Architecture
MULTIPLE

Non-Volatile Memory
External

On Chip Data RAM
8.25kB

Length
24.13mm

Height Seated (Max)
4.57mm

Radiation Hardening
No

RoHS Status
RoHS Compliant

Download datasheets and manufacturer documentation for TI TMS320LC31PQ40.

TMS320LC31PQ40 Overview

It is a kind of electronic component that comes in a package of 132-BQFP Bumpered.Packaging is provided in the form of Tray.In addition to meeting a wide range of requirements, it is a member of Floating Point.The machine is mounted in the way of Surface Mount in order to facilitate its operation.By operating the device at the temperature of 0°C~85°C TC, a normal operation is ensured.It refers to the analog voltage range of 3.30V that may be input or output.Digital signal processors such as this one are included in the TMS320C3x series.In order to use it, it has 132 terminations.Using 3.3V as the supply voltage, it operates.132 components have pins.The configuration of this board includes 132 pins.The base part number 320LC31 allows identification of a wide range of related parts.Specifically, the device is designed to operate at a frequency of 40MHz.Surface Mount is the method of mounting it.The characteristics of this device allow it to be placed in the subcategory of Digital Signal Processors.Devices like this can be powered with as little as 3.13V volts.It is capable of receiving a maximum voltage of 3.47V.3.3V is the supply voltage for this device.

TMS320LC31PQ40 Features

Supplied in the 132-BQFP Bumpered package
Operating supply voltage of 3.3V

TMS320LC31PQ40 Applications

There are a lot of Texas Instruments
TMS320LC31PQ40 DSP applications.

Sonar
Voice recognition
Financial signals
Other sensor array processing
Spectral density estimation
Statistical signal processing
Digital image processing, data compression
Video coding, audio coding
Image compression
Signal processing for telecommunications
