Manufacturer No:

TMS320F2812ZHHS

Manufacturer:

TI

Package:

179-LFBGA

Description:

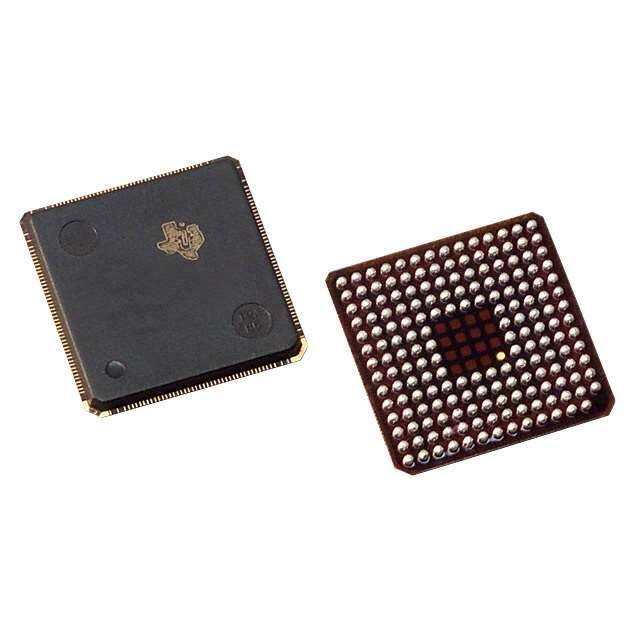

256KB 128K x 16 FLASH C28x 32-Bit Microcontroller Automotive, AEC-Q100, C2000™ C28x Fixed-Point Series 320F2812 179 Pin 150MHz 1.9V 179-LFBGA

Delivery:

DHL
DHL
DHL
DHL

Payment:

DHL
DHL
DHL
DHL
DHL
DHL
DHL

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TMS320F2812ZHHS information

TI TMS320F2812ZHHS technical specifications, attributes, parameters and parts with similar specifications to TI TMS320F2812ZHHS.

  • Type
  • Parameter
  • Lifecycle Status
  • ACTIVE (Last Updated: 4 days ago)
  • Factory Lead Time
  • 6 Weeks
  • Mount
  • Surface Mount
  • Mounting Type
  • Surface Mount
  • Package / Case
  • 179-LFBGA
  • Number of Pins
  • 179
  • Weight
  • 337.812918mg
  • Operating Temperature
  • -40°C~125°C TA
  • Packaging
  • Tray
  • Series
  • Automotive, AEC-Q100, C2000™ C28x Fixed-Point
  • JESD-609 Code
  • e1
  • Pbfree Code
  • yes
  • Part Status
  • Active
  • Moisture Sensitivity Level (MSL)
  • 3 (168 Hours)
  • Number of Terminations
  • 179
  • Terminal Finish
  • Tin/Silver/Copper (Sn/Ag/Cu)
  • Additional Feature
  • ALSO OPERATES AT 1.8 SUPPLY AT 135MHZ
  • Subcategory
  • Digital Signal Processors
  • Technology
  • CMOS
  • Terminal Position
  • BOTTOM
  • Terminal Form
  • BALL
  • Peak Reflow Temperature (Cel)
  • 260
  • Supply Voltage
  • 1.9V
  • Terminal Pitch
  • 0.8mm
  • Base Part Number
  • 320F2812
  • Pin Count
  • 179
  • Operating Supply Voltage
  • 1.9V
  • Supply Voltage-Max (Vsup)
  • 2V
  • Power Supplies
  • 1.93.3V
  • Interface
  • CAN, EBI/EMI, SCI, SPI, UART, USART
  • Memory Size
  • 256kB
  • Oscillator Type
  • Internal
  • RAM Size
  • 18K x 16
  • Memory Type
  • EEPROM, FLASH
  • Voltage - Supply (Vcc/Vdd)
  • 1.81V~2V
  • uPs/uCs/Peripheral ICs Type
  • DIGITAL SIGNAL PROCESSOR, OTHER
  • Core Processor
  • C28x
  • Peripherals
  • DMA, POR, PWM, WDT
  • Program Memory Type
  • FLASH
  • Core Size
  • 32-Bit
  • Program Memory Size
  • 256KB 128K x 16
  • Connectivity
  • CANbus, EBI/EMI, McBSP, SCI, SPI, UART/USART
  • Bit Size
  • 32
  • Data Converter
  • A/D 16x12b
  • Data Bus Width
  • 32b
  • PWM Channels
  • 16
  • Density
  • 2 Mb

Download datasheets and manufacturer documentation for TI TMS320F2812ZHHS.

Datasheets:

PCN Design/Specification:

PCN Packaging:

TMS320F2812ZHHS Description


The TMS320F2812ZHHS is an MCU (Microcontroller). It is used in a variety of industries, including communications equipment, wireless infrastructure, and industrial, medical, and business systems. The key specifications of this component are: SCI, SPI, UART; 56 I/Os; 256KB Flash Memory; 1.71V to 1.89V Supply Voltage Range; -40°C to +125°C Operating Temperature Range; Digital IC

It is also environmentally friendly and RoHS compliant (lead-free).



TMS320F2812ZHHS Features


  • Three 32-Bit CPU-Timers

  • Three External Interrupts

  • JTAG Boundary Scan Support

  • Up to 56 General-Purpose I/O (GPIO) Pins

  • Peripheral Interrupt Expansion(PIE) Block That Supports 45 Peripheral Interrupts



TMS320F2812ZHHS Applications


  • Industrial

  • Enterprise systems

  • Communications equipment
