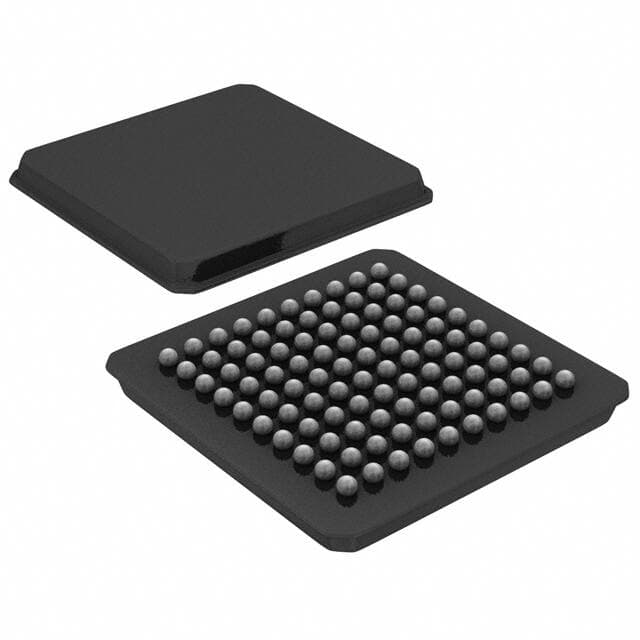

TI TMS320F2808ZGMS

Manufacturer No:

TMS320F2808ZGMS

Manufacturer:

Package:

100-LFBGA

Description:

128KB 64K x 16 FLASH C28x 32-Bit Microcontroller Automotive, AEC-Q100, C2000™ C28x Fixed-Point Series 320F2808 100 Pin 100MHz 1.8V 100-LFBGA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TMS320F2808ZGMS information

TI TMS320F2808ZGMS technical specifications, attributes, parameters and parts with similar specifications to TI TMS320F2808ZGMS.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 4 days ago)

Factory Lead Time
6 Weeks

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
100-LFBGA

Number of Pins
100

Operating Temperature
-40°C~125°C TA

Packaging
Tray

Series
Automotive, AEC-Q100, C2000™ C28x Fixed-Point

JESD-609 Code
e1

Pbfree Code
yes

Part Status
Active

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
100

ECCN Code
3A001.A.3

Terminal Finish
Tin/Silver/Copper (Sn/Ag/Cu)

Additional Feature
ALSO REQUIRES 3.3V SUPPLY

Subcategory
Digital Signal Processors

Technology
CMOS

Terminal Position
BOTTOM

Terminal Form
BALL

Peak Reflow Temperature (Cel)
260

Supply Voltage
1.8V

Terminal Pitch
0.8mm

Base Part Number
320F2808

Pin Count
100

Operating Supply Voltage
1.8V

Supply Voltage-Max (Vsup)
1.89V

Power Supplies
1.83.3V

Interface
CAN, I2C, SCI, SPI, UART, USART

Memory Size
128kB

Oscillator Type
Internal

RAM Size
18K x 16

Voltage - Supply (Vcc/Vdd)
1.71V~1.89V

uPs/uCs/Peripheral ICs Type
DIGITAL SIGNAL PROCESSOR, OTHER

Core Processor
C28x

Peripherals
POR, PWM, WDT

Program Memory Type
FLASH

Core Size
32-Bit

Program Memory Size
128KB 64K x 16

Connectivity
CANbus, I2C, SCI, SPI, UART/USART

Bit Size
32

Data Converter
A/D 16x12b

Data Bus Width
32b

PWM Channels
12

Density
1 Mb

Boundary Scan
YES

Download datasheets and manufacturer documentation for TI TMS320F2808ZGMS.

PCN Design/Specification:

texasinstruments-tms320f2812ghha-pcndesignspecification-7479.pdf

TMS320F2808ZGMS Overview

The package is 100-LFBGA-shaped. In the case of the IC chip, the type of mounting is Surface Mount. Microcontroller is based on the 32-Bit core architecture. The type of program memory it uses is FLASH. Temperatures in the range of -40°C~125°C TA are operated by this Microcontroller. It is part of the Automotive, AEC-Q100, C2000™ C28x Fixed-Point series of electrical components. Having a size of 128KB 64K x 16, Microcontroller has a program memory of X bytes. A C28x Core Processor is at the core of this Microcontroller. This device belongs to the DIGITAL SIGNAL PROCESSOR, OTHER uPs/uCs/Peripheral ICs category. IC Chip 100 has 100 terminations. 32-bits are used for its size. IC Chip has 1.8V volt supply outputs. 128kB is the size of the memory in the IC part. Using the base part number 320F2808, you will be able to find alternatives for the part. Using a 100MHz frequency, this electronic part can perform efficiently. Devices work in 12 PWM channels. On the chip, 100 pins are accessible. The pin count is 100. It has 35 Programmable Input/Output pins that can be programmed. In addition to the above, there are other features such as ALSO REQUIRES 3.3V SUPPLY, to name but a few. A total of 8 UART channels are available on it. A total of 16 A/D converters are included in this device. A total of 3 external interrupts are included in the Microcontroller as well. IC chip bits total 10.
