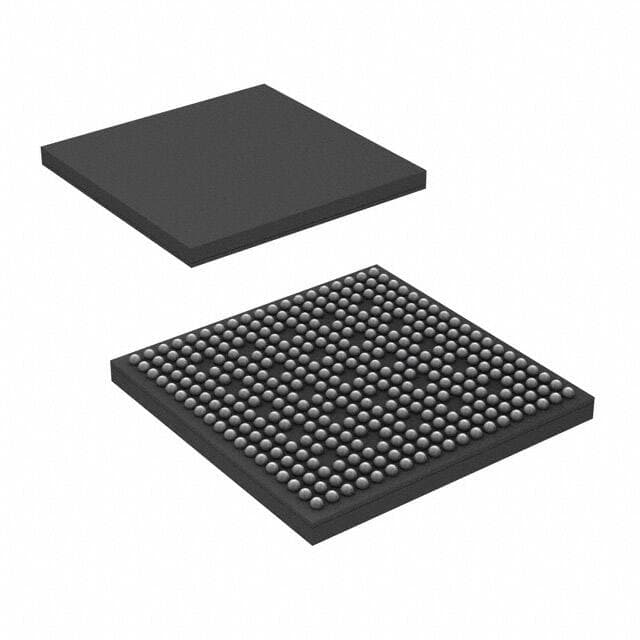

TI TMS320DM335DZCE216

Manufacturer No:

TMS320DM335DZCE216

Manufacturer:

Package:

337-LFBGA

Description:

0.65mm CPLD TMS320DM3x, DaVinci? Series 320DM335 337 Pin 216MHz 1.3V 337-LFBGA

Quantity:

Delivery:

Payment:

In Stock :Available

Price not displayed? Please send an RFQ, and we will respond immediately.

TMS320DM335DZCE216 information

TI TMS320DM335DZCE216 technical specifications, attributes, parameters and parts with similar specifications to TI TMS320DM335DZCE216.

Type
Parameter

Lifecycle Status
ACTIVE (Last Updated: 1 week ago)

Mount
Surface Mount

Mounting Type
Surface Mount

Package / Case
337-LFBGA

Number of Pins
337

Operating Temperature
0°C~85°C TC

Packaging
Tube

Series
TMS320DM3x, DaVinci?

JESD-609 Code
e1

Pbfree Code
yes

Part Status
Not For New Designs

Moisture Sensitivity Level (MSL)
3 (168 Hours)

Number of Terminations
337

Type
Digital Media System-on-Chip (DMSoC)

Terminal Finish
Tin/Silver/Copper (Sn/Ag/Cu)

Subcategory
Digital Signal Processors

Technology
CMOS

Terminal Position
BOTTOM

Terminal Form
BALL

Peak Reflow Temperature (Cel)
260

Supply Voltage
1.3V

Terminal Pitch
0.65mm

Frequency
216MHz

Base Part Number
320DM335

Operating Supply Voltage
1.3V

Interface
ASP, EBI/EMI, I2C, SPI, UART, USB

Max Supply Voltage
1.365V

Min Supply Voltage
1.235V

RAM Size
32kB

Bit Size
32

Core Architecture
RISC

Format
FIXED-POINT

RAM (words)
8192

Voltage - I/O
1.8V 3.3V

Number of UART Channels
3

Bus Compatibility
I2C; SPI; UART; USB

Non-Volatile Memory
ROM (8kB)

Voltage - Core
1.30V

On Chip Data RAM
56kB

Height
1.3mm

Length
13mm

Width
13mm

Thickness
890?m

Radiation Hardening
No

RoHS Status
RoHS Compliant

Lead Free
Lead Free

Download datasheets and manufacturer documentation for TI TMS320DM335DZCE216.

PCN Design/Specification:

texasinstruments-tms320f2812ghha-pcndesignspecification-7479.pdf

PCN Packaging:

texasinstruments-lm9833ccvjdnopb-pcnpackaging-6844.pdf

TMS320DM335DZCE216 Overview

It is a kind of electronic component that comes in a package of 337-LFBGA.Packaging is provided in the form of Tube.In addition to meeting a wide range of requirements, it is a member of Digital Media System-on-Chip (DMSoC).The machine is mounted in the way of Surface Mount in order to facilitate its operation.By operating the device at the temperature of 0°C~85°C TC, a normal operation is ensured.It refers to the analog voltage range of 1.8V 3.3V that may be input or output.Digital signal processors such as this one are included in the TMS320DM3x, DaVinci? series.In order to use it, it has 337 terminations.Using 1.3V as the supply voltage, it operates.337 components have pins.The configuration of this board includes 337 pins.The base part number 320DM335 allows identification of a wide range of related parts.Specifically, the device is designed to operate at a frequency of 216MHz.Surface Mount is the method of mounting it.The characteristics of this device allow it to be placed in the subcategory of Digital Signal Processors.Devices like this can be powered with as little as 1.235V volts.It is capable of receiving a maximum voltage of 1.365V.1.3V is the supply voltage for this device.Data format and transmission speed can be configured for asynchronous serial communication on 3 UART channels.The processor core uses the architecture of the RISC processor.

TMS320DM335DZCE216 Features

Supplied in the 337-LFBGA package
Operating supply voltage of 1.3V

TMS320DM335DZCE216 Applications

There are a lot of Texas Instruments
TMS320DM335DZCE216 DSP applications.

Sonar
Voice recognition
Financial signals
Other sensor array processing
Spectral density estimation
Statistical signal processing
Digital image processing, data compression
Video coding, audio coding
Image compression
Signal processing for telecommunications
